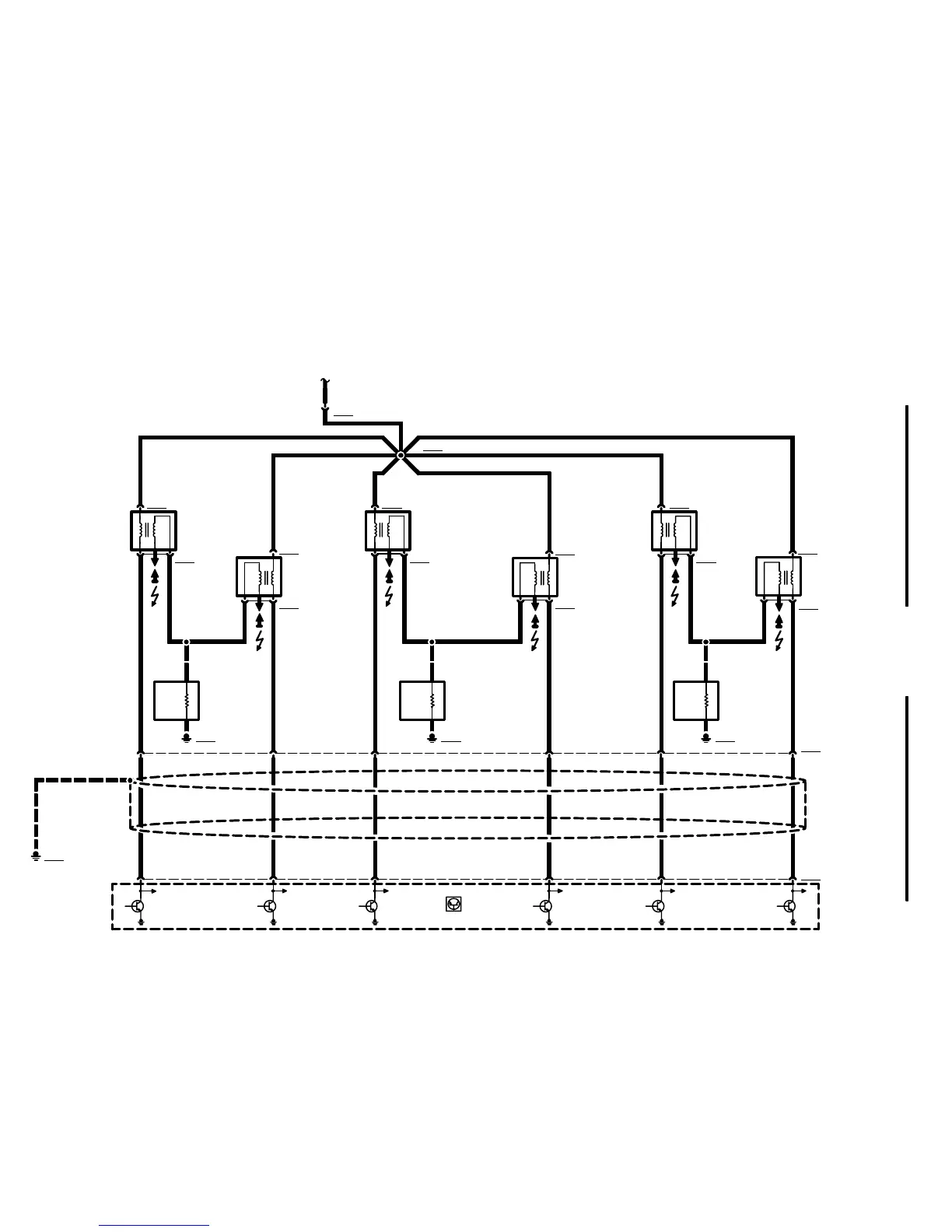

BMW E36 - Page 95

1.5 SW/WS
29
X6454
GROUND
DISTRIBUTION
0670.4
2
04/99
1210.17Ć
1998
03
1
3 X6151
2.5 GN
X64561 SW/WS
X6152
1
1 GN 1 GN 1 GN
3
3 X6152
1 30 2 31 3 X6000
X6819
T6151
CYL. 1 IGNITION
COIL
T6152
CYL. 2 IGNITION
COIL
W6165
SHIELD UP TO
10mm BEFORE
IGNITION COIL
CONNECTOR
A6000
ENGINE CONTROL
MODULE (DME)
1.5 SW/RT 1.5 SW/GE 1.5 SW/BL
1.5 SW/GN
1.5 SW/VI
1 SW/RT 1 SW/GE 1 SW/BL 1 SW/GN 1 SW/VI
1 GN 1 GN1 GN
X6151
2
2
X6153
X615321
X6154
1
3 X6154
2
T6154
CYL. 4 IGNITION
COIL
3 X6155
X615521
X61561
3 X6156
T6156
CYL. 6 IGNITION
COIL
T6153
CYL. 3 IGNITION
COIL
T6155
CYL. 5 IGNITION
COIL
1 BR 1 BR 1 BR 1 BR 1 BR 1 BR
GROUND
DISTRIBUTION
0670.4
X61501
2.5 GN
4 9 7 6 3 10 X6150
31 31 31 31 31 31
R8554
RESISTOR
240 W
2W
X6456
GROUND
DISTRIBUTION
0670.4
R8554
RESISTOR
240 W
2W
X6456
GROUND
DISTRIBUTION
0670.4
R8554
RESISTOR
240 W
2W
