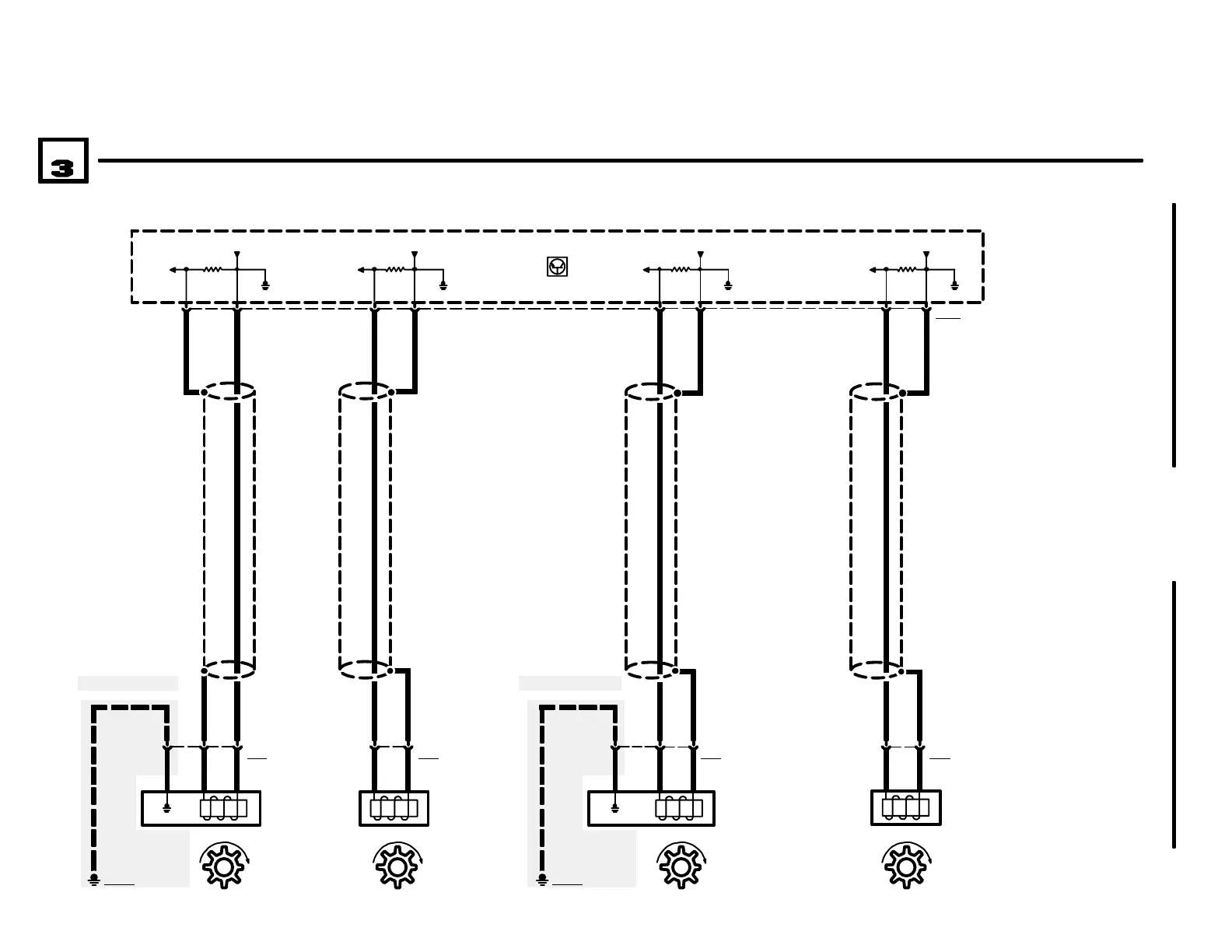

SLIP CONTROL (ABS/ASC)
04/99
3450.1Ć
1998
07
30 48 46 29 47 11
45 10
X1171
.5 RT
.5 WS
.5 GE
.5 GN
1 2 2 1 X142 2 1 2 1 X143
B2
LEFT FRONT
SPEED SENSOR –
ABS
B4
LEFT REAR SPEED
SENSOR – ABS
B1
RIGHT FRONT
SPEED SENSOR –
ABS
B3
RIGHT REAR
SPEED SENSOR –
ABS
LEFT FRONT
PULSE WHEEL
A52
SLIP CONTROL
MODULE
(ABS/ASC)
LEFT REAR PULSE
WHEEL
RIGHT FRONT
PULSE WHEEL
RIGHT REAR
PULSE WHEEL
31 31 31 31
X114 X113
BM
BMW
BMWBMW
Z3
Z3 ROADSTER 6–CYLINDER
GROUND
DISTRIBUTION
0670.4
X18170
3
LATE PRODUCTION
3
LATE PRODUCTION
X18170
GROUND
DISTRIBUTION
0670.4
31 31
