BMW Z3 E37 1998 - Page 158

paragon.myvnc.com
04/99
3450.1
1998
Ć11
3
X2213
8
6
5 10 11
9
13
33
54 27 52
25 6 34 X1175
55 28
X1166
X9170
X4
Y1w

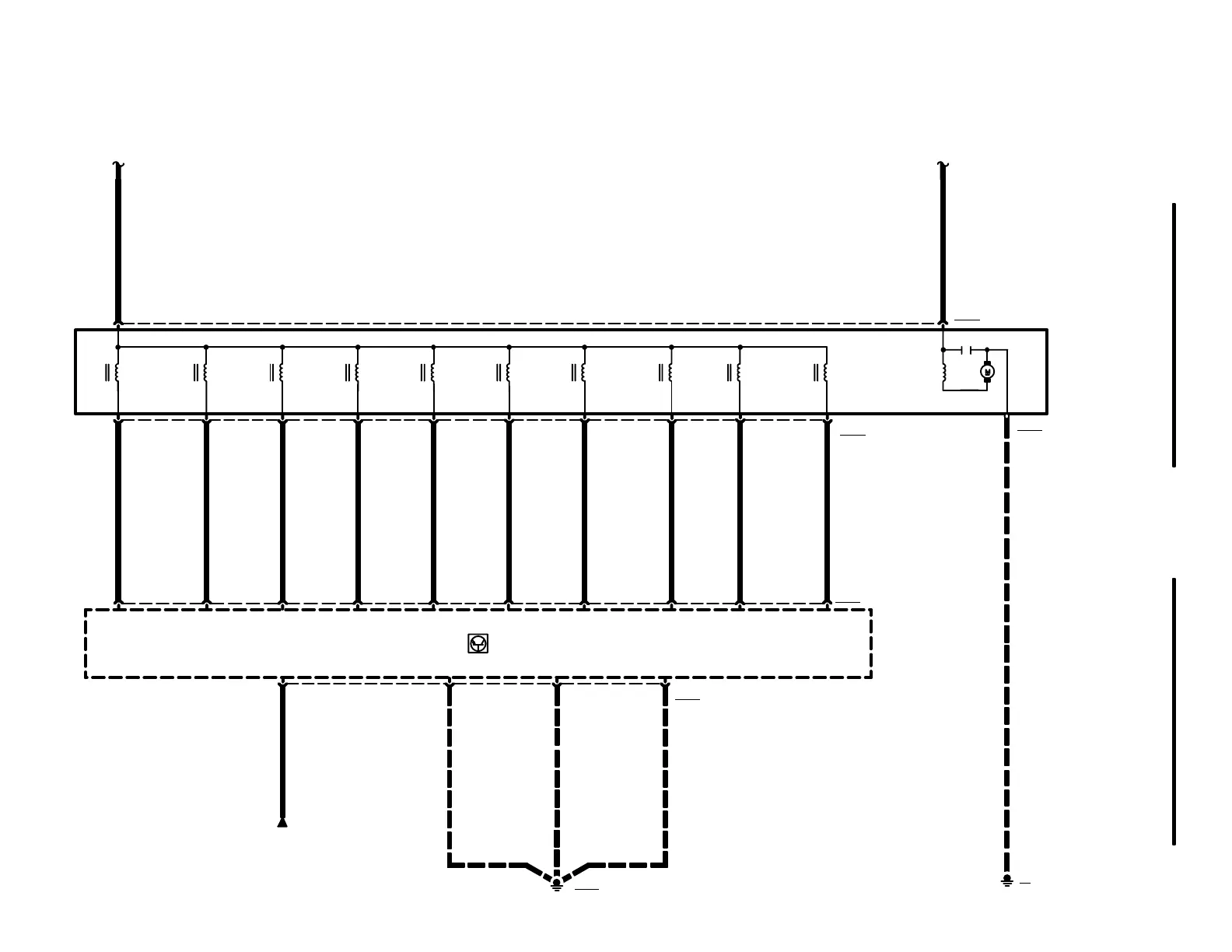

ABS HYDRAULIC
UNIT
6) RIGHT REAR
OUTLET VALVE
7) RIGHT REAR
INLET VALVE
8) LEFT REAR
OUTLET VALVE
9) LEFT REAR
INLET VALVE
10) RIGHT FRONT
OUTLET VALVE
11) RIGHT FRONT
INLET VALVE
12) LEFT FRONT
OUTLET VALVE
13) LEFT FRONT
INLET VALVE
14) PUMP MOTOR
15) SEPARATOR
VALVE
16) CHANGEOVER
VALVE ASC
17) SHUT–OFF
VALVE ASC
A52
SLIP CONTROL
MODULE
(ABS/ASC)
GROUND
DISTRIBUTION
0670.4
GROUND
DISTRIBUTION
0670.4
GROUND
DISTRIBUTION
0670.4
11 10 9 8 7 6
14
12
29 X1175
GROUND
DISTRIBUTION
0670.4
46
.75 BR/RT
2
15
2.5 RT/GE
7
13
1
2
49 26
16 17
X2213
2.5 RT/BL
.75 WS/BL .75 BR/SW .75 WS/BR .75 BR/GR .75 GE/WS .75 BR/BL .75 GR/RT .75 WS/GN .75 WS/RT
TXD
DATA LINK
0670.5
.75 WS/VI
