Bodystat 1500 - RIGHT HAND; RIGHT FOOT

21
Attach the crocodile clips to the exposed metal tab strip of the electrode. For
convenience, the metal tab on the electrode should point in the direction from
which the leadwire tension will occur as illustrated.

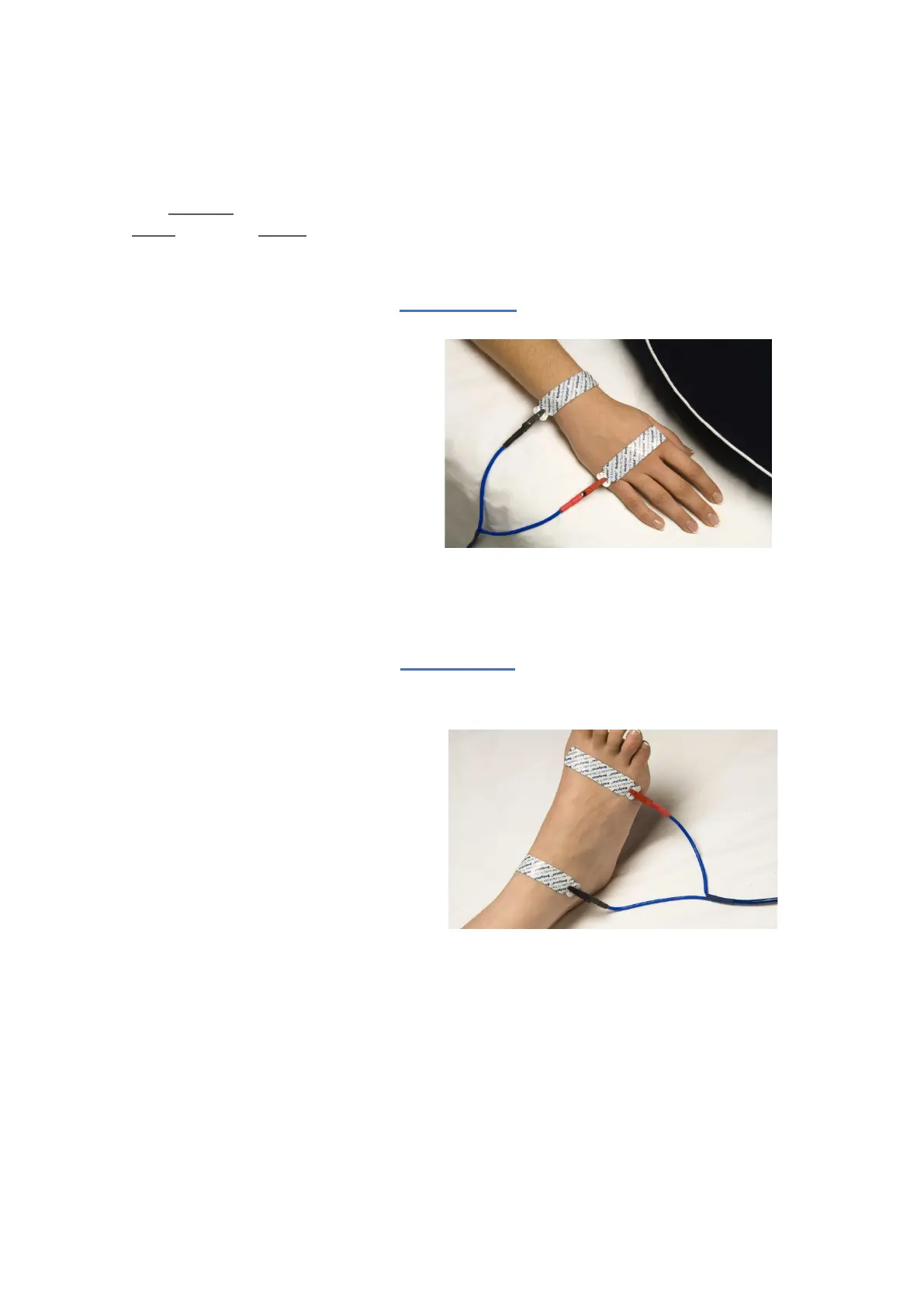

The BLACK (measuring) leads are then connected to the electrodes on the right
wrist and right ankle. Placement of the electrodes is as follows:
RIGHT HAND
RED LEAD:
Behind the
knuckle of the
middle finger.
BLACK LEAD:
On the wrist
next to the ulna
head.
RIGHT FOOT
RED LEAD:
Behind the 2
nd
toe next to the
big toe.
BLACK LEAD:
On the ankle at
the level of and
between the
medial and
lateral malleoli
(the large
protruding bones
on the sides of
the ankle).
Once the subject is the PROCEED button on the equipment.
This is to ensure that the fluid levels have stabilized in the body before a
measurement is performed.
