Aufstellung.pm6.5 - USA
Page 3.4
Installation
BOGE Operating instructions for S 40-2...S 341 / SF 40-2...SF 220 series screw compressors

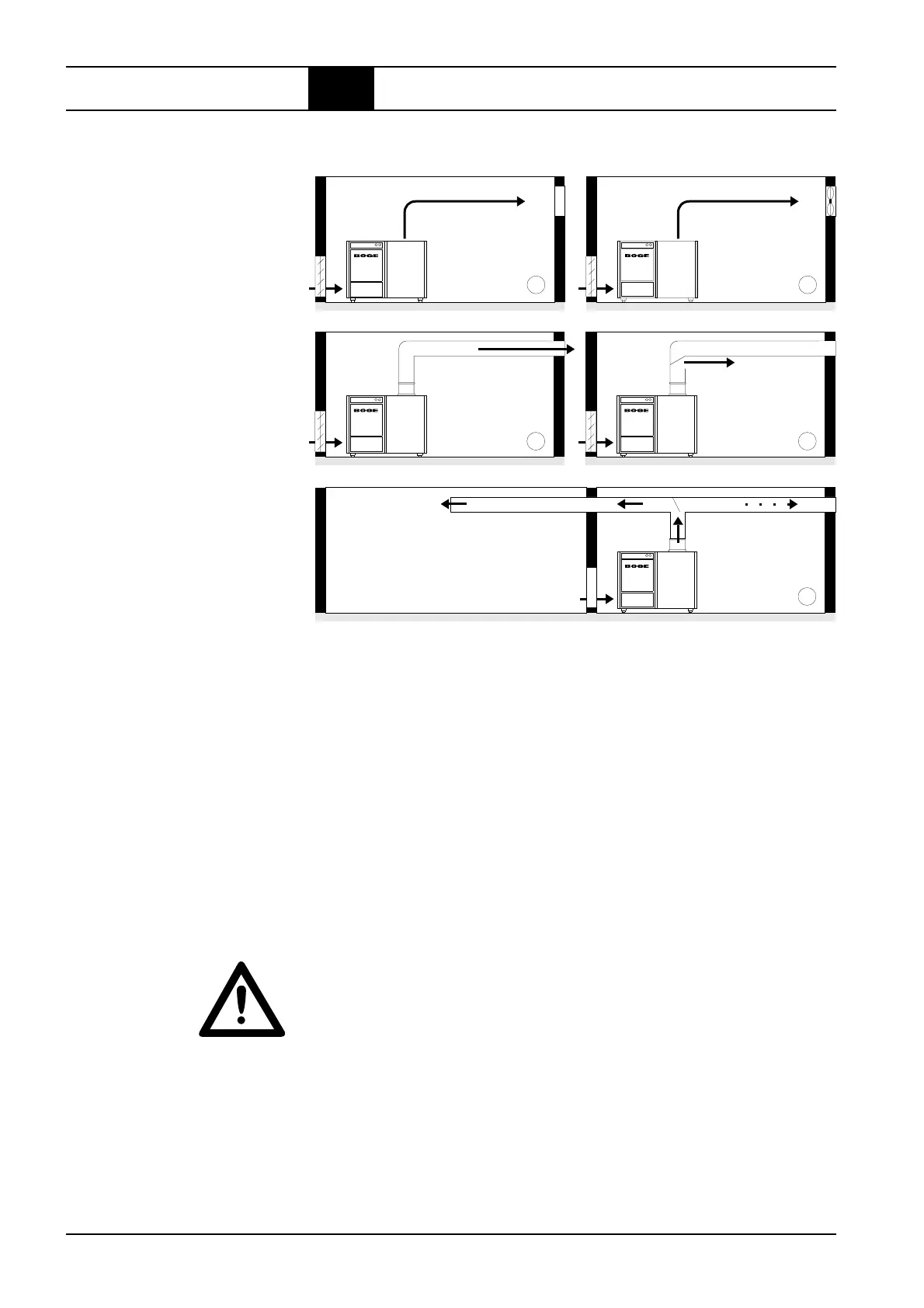

A: Supply and exhaust air openings in the outside walls (free-standing
installation)
B: Supported by exhaust air fan
C: Exhaust air duct into the open
D: Exhaust air duct with recirculation flap
Hot exhaust air is mixed with the cold ambient air, as required, preventing
the plant from freezing up at temperatures below freezing.
E: Using the hot exhaust air for heating
In the winter, the hot exhaust air is used for room heating. In summer it is
directed into the open.
The air taken in contains water in form of vapour, which turns into condensat
during compression.
WARNING!
The condensate contains oil. Never lead it into the public sewage system
without prior treatment.
Strictly observe the effluent disposal laws of your local authorities.
Condensate disposal
3.2 Compressor room
BA
D
C
E
Ventilation possibilities
