Installation
BOGE Operating instructions for S 40-2...S 341 / SF 40-2...SF 220 series screw compressors
Checking the oil level
BOGE compressors are supplied with a complete oil filling.
Prior to commissioning/start up, check the oil level as described in chapter
"Maintenance".
Activating the belt
tensioning device
The V-belts are slackened for transport.
Activate the GM belt tensioning device prior to commissioning by lowering
the motor plate.
Secure bolt head against turning by means of a spanner (NW 27).
Turn locknut upwards by turning counterclockwise until it locks against
the bolt head.
The belt tensioning device is activated. It automatically sets the correct V-belt
tension in every operating mode.

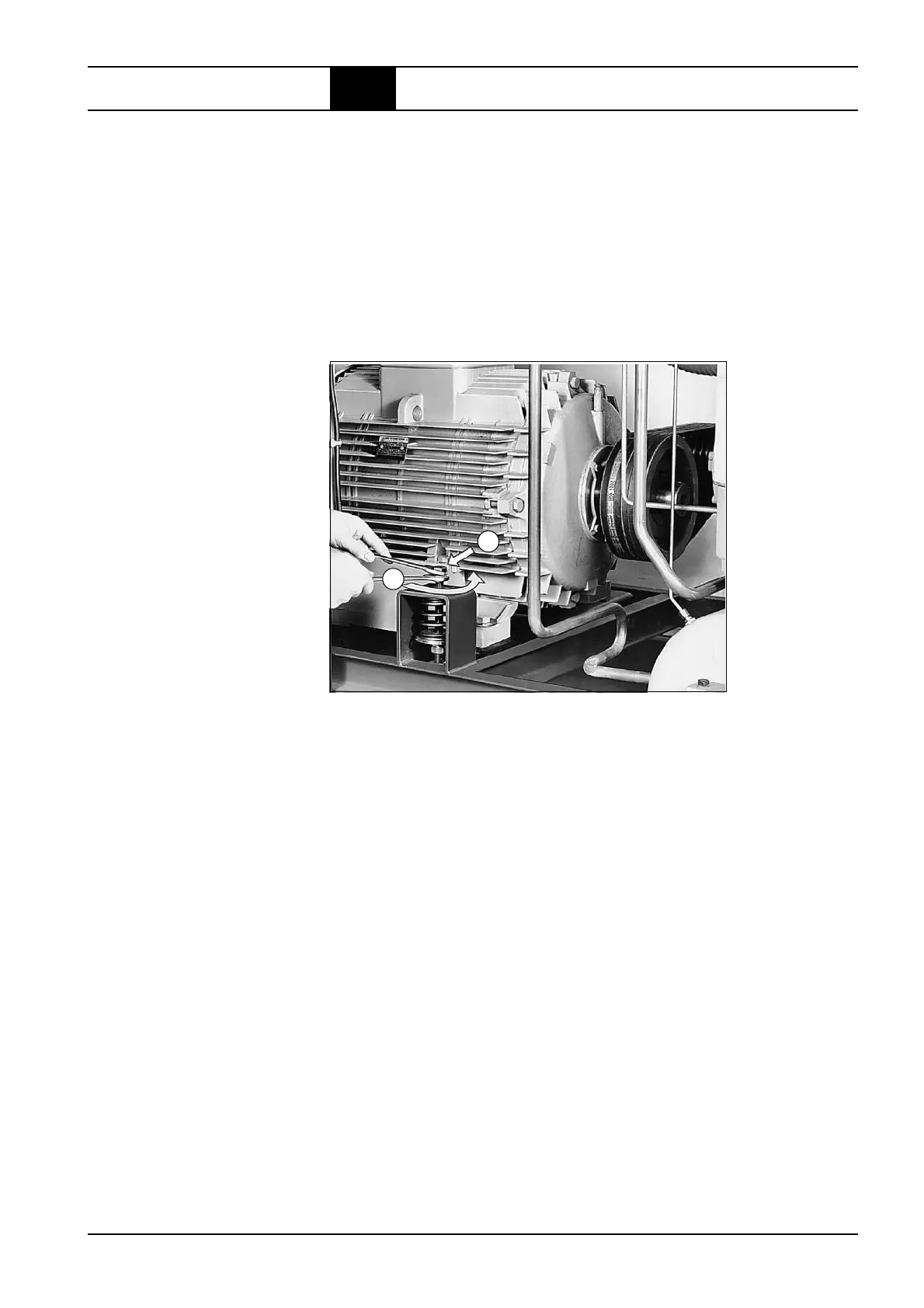

Fig. 3.2: Activating the belt tensioning device Note
3.3 Installation
Note: Demonstration example. Compressor may only be operated with the switch cabinet
closed and all panels fitted.
1
2
