Maintenance
BOGE Operating instructions for S 40-2...S 341 / SF 40-2...SF 220 series screw compressors
Clean or change
intake filter
Cleaning: – 1x monthly,
however, at least every 500 operating hours.
– Correspondingly earlier if the air taken in is heavily soiled.
Change: – In the event of damage.
– After the second cleaning.
– Switch off the compressor using the OFF button.
DANGER: Risk of injury!
Switch off the main switch and secure it against unintentional switch-on.
Removing the filter cartridge
– Remove cladding on the maintenance side.
– Remove lid of the filter housing.
– Loosen nut and remove filter cartridge .
CAUTION! Do not clean filter cartridges in liquids.
Do not use any hard objects when cleaning to avoid damaging the filter
paper.
Refit a new filter cartridge in the event of damage or once it has been
cleaned twice.
– Hit on the filter cartridge using the palm of your hand to knock out coarse
dust.
– Blow out fine dust from the inside to the outside using dry compressed
air (maximum pressure 70 psig).
– Clean the sealing surface of the filter cartridge.
Fitting a filter cartridge
– Insert filter cartridge into the filter housing.
– Tighten nut.
– Attach lid of the filter housing.
– Attach cladding on the maintenance side.
5.3 Regular maintenance work
Cleaning the
filter cartridge

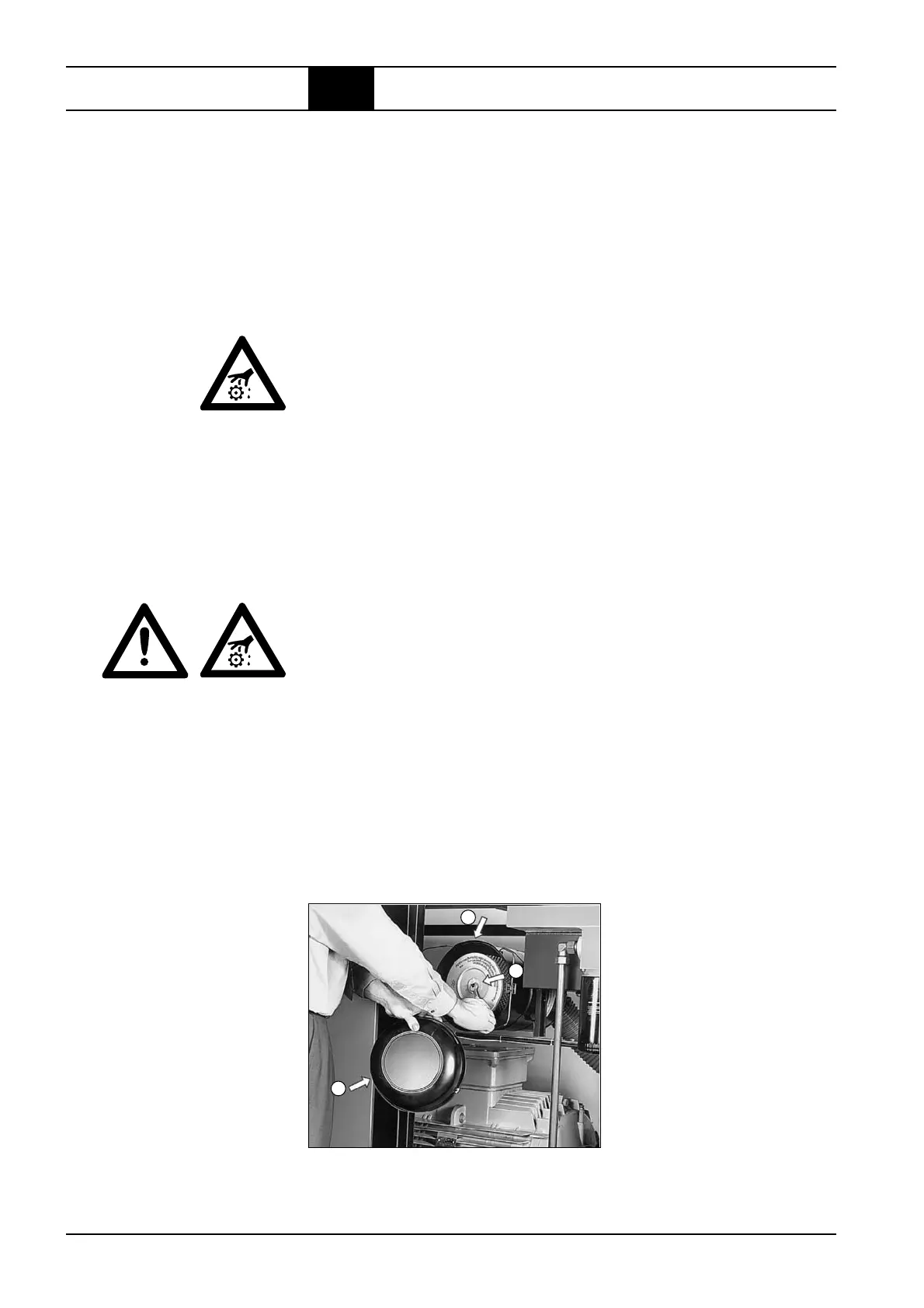

Fig. 5.2: Changing the intake filter Note:
Note: Demonstration example. Com-
pressor may only be operated
with the switch cabinet closed
and all panels fitted.
