Bomag BPR 35/60 - Check the V-Belt Tension, if Necessary Replace the V-Belt

Maintenance every 6 months
BOMAG50 BPR 35/60
6.15 Check the V-belt tension, if
necessary replace the V-
belt

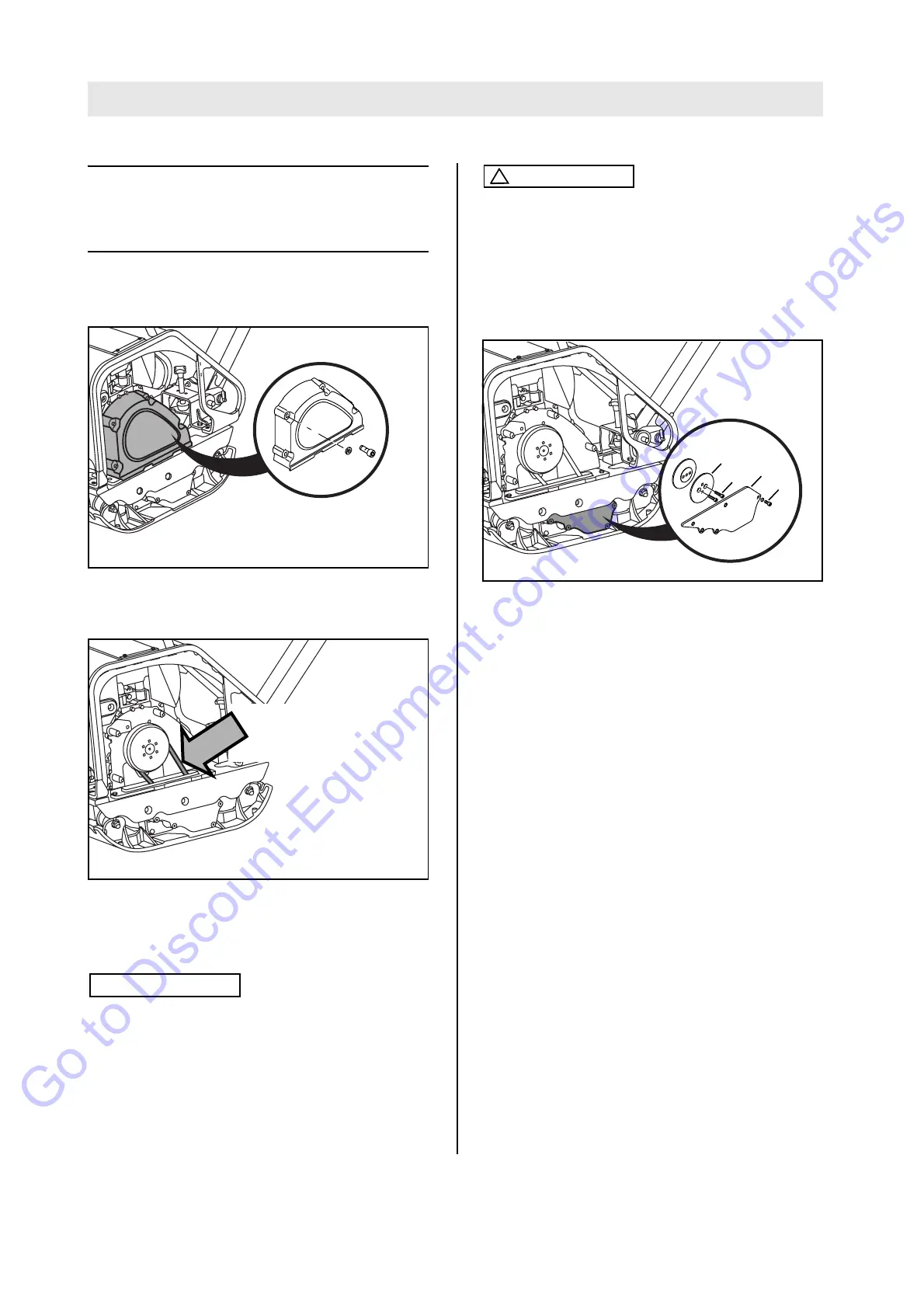

Checking the V-belt
Fig. 55
l Remove the V-belt guard (Fig. 55).
Fig. 56
l Check condition and tightness of V-belt (Fig.
56).
Note
i
Compression measurement approx. 5 - 15 mm (02
- 06 in)
Caution
!
Replace a damaged V-belt.
The V-belt cannot be tightened manually. Al-
ways replace the V-belt, if the compression
measurement is exceeded.
Replacing the V-belt
Fig. 57
l Remove the safety cover (3) (Fig. 57).
l Loosen screw (2).
l Remove the front disc (1) from the centrifugal
clutch.
l Take off the V-belt and replace it by a new one.
l Attach the front disc (1).
l Tighten the screws (2) (tightening torque:
35 Nm (26 ft.lbs)).
l Reinstall the protective cover (3) and tighten
the screws (4) (tightening torque 15 Nm (11
ft.lbs)).
l Install the top V-belt guard (Fig. 55).
690211
690212
ca. 5 - 15 mm
appr. 0.2 - 0.6 in
690213
3
4
2
1
