Bomag BPR 35/60 - Check the Hydraulic Oil Level

Maintenance every year
BOMAG56 BPR 35/60
6.20 Check the hydraulic oil level
Caution
!
Park the machine horizontally.
For quality of oil refer to the "table of fuels and
lubricants".
Environment
Catch running out old oil, do not let it seep into
the ground and dispose off environmentally.

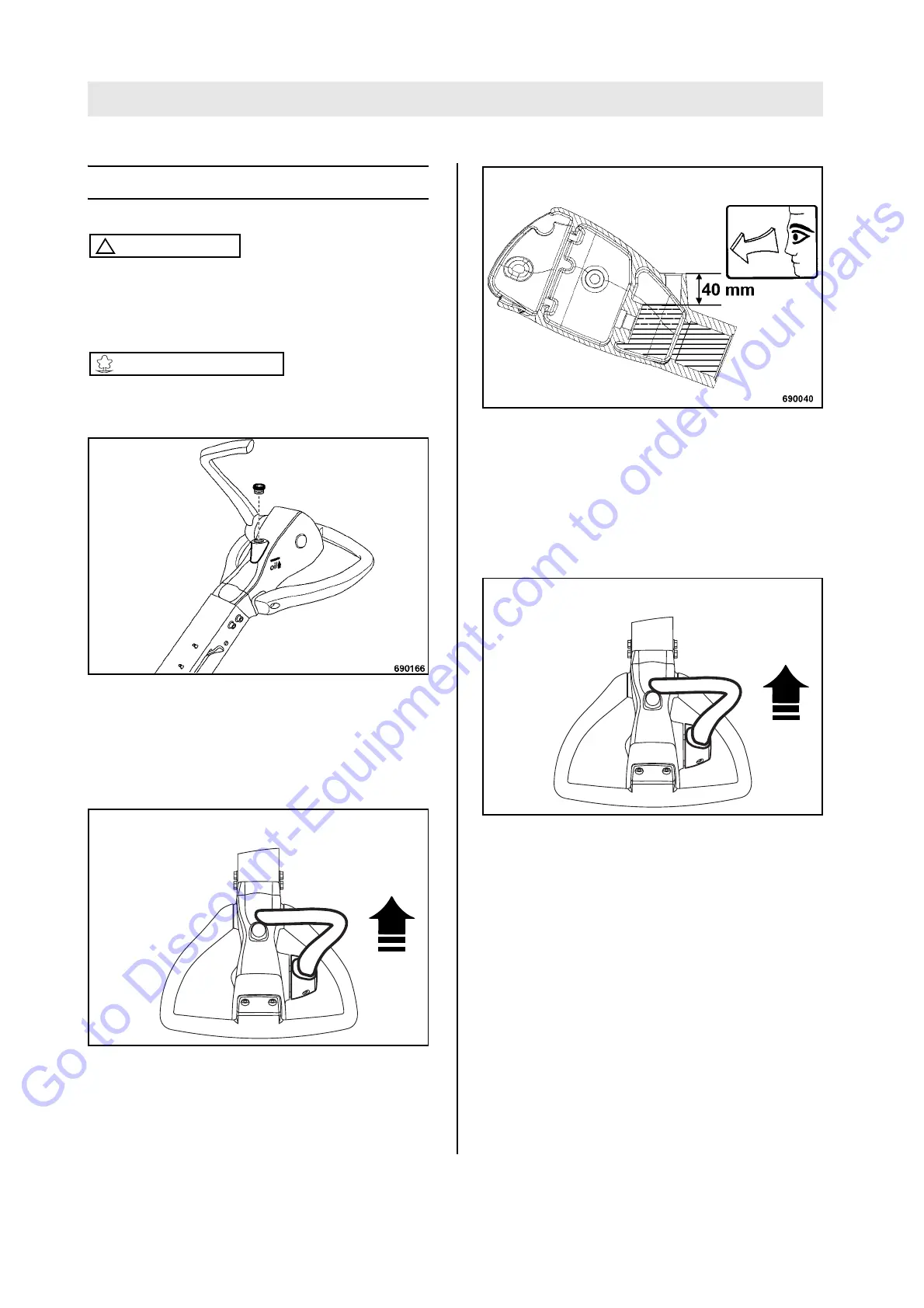

Fig. 74
l Adjust the steering rod with height adjustment
(Fig. 74) so that the area with the level inspec-
tion plugs is horizontal.
l Unscrew the plug.
Fig. 75
l Hold the travel lever in forward position (Fig.
75).
Fig. 76
l Check whether the hydraulic oil level is ap-
prox. 40 mm (1.6 in) below the filler opening
(Fig. 76) (see also mark on steering rod head),
top up hydraulic oil if necessary.
Filling up hydraulic oil
Fig. 77
l Shift the travel lever forward against the stop
(Fig. 77).
