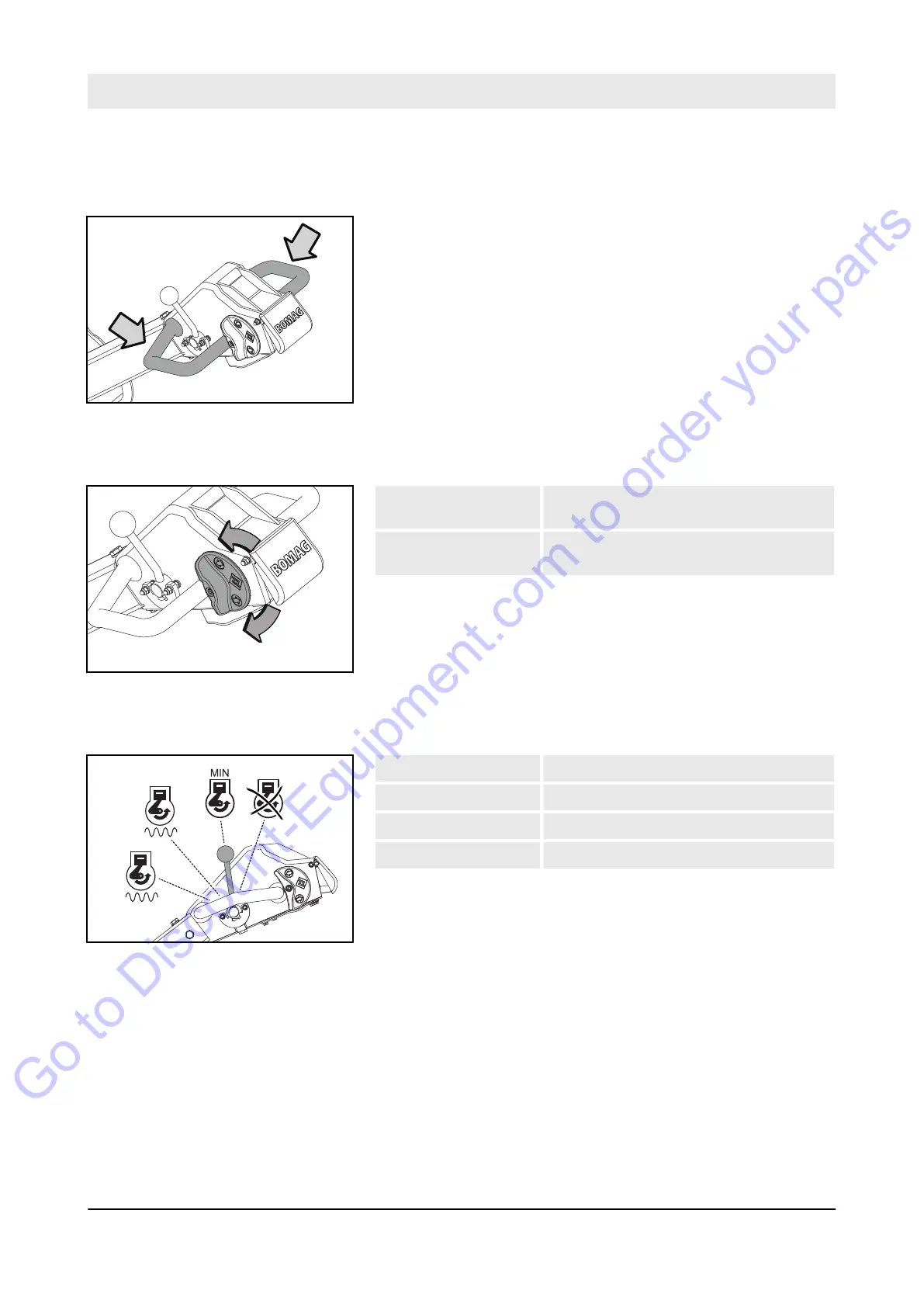

4.1 Machine
4.1.1
Handle
4.1.2 Travel lever
Shift upper part for-
ward
Forward travel
Shift lower part for-
ward
Backward travel
4.1.3 Throttle lever
Position “STOP” Engine off
Position “MIN” Idle speed position
Position “I” Medium load position
Position “II” Full load position
B-692-0227
Fig. 20
B-692-0214
Fig. 21
STOP
I
II
B-692-0226
Fig. 22
Indicators and control elements – Machine
BPR 70/70 D
