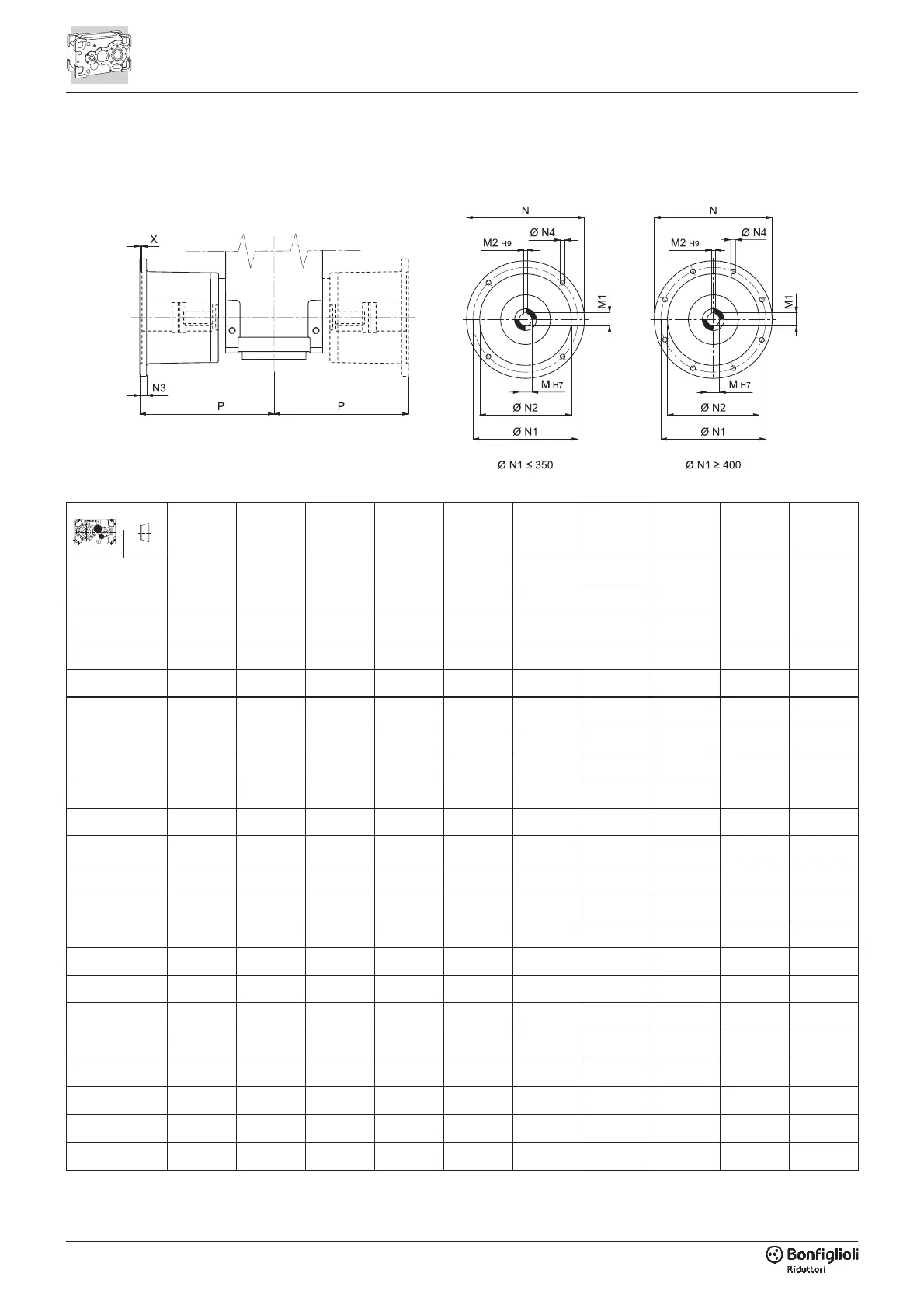

5.1 - PREDISPOSIZIONE ATTACCO
MOTORE CON CAMPANA
E GIUNTO ELASTICO
M M1 M2 N N1 N2 N3 N4 X P
HDP 60_132
38 41.3 10 300 265 230 16 14 5 311
HDP 60_160
42 45.3 12 350 300 250 23 18 6 341
HDP 60_180
48 51.8 14 350 300 250 23 18 6 341
HDP 60_200
55 59.3 16 400 350 300 — M16x23 7 366
HDP 60_225
60 64.4 18 450 400 350 25 18 7 374
HDP 70_132
38 41.3 10 300 265 230 16 14 5 311
HDP 70_160
42 45.3 12 350 300 250 23 18 6 341
HDP 70_180
48 51.8 14 350 300 250 23 18 6 341
HDP 70_200
55 59.3 16 400 350 300 — M16x23 7 366
HDP 70_225
60 64.4 18 450 400 350 25 18 7 374
HDP 80_160
42 45.3 12 350 300 250 23 18 6 371
HDP 80_180
48 51.8 14 350 300 250 23 18 6 371
HDP 80_200
55 59.3 16 400 350 300 — M16x23 7 396
HDP 80_225
60 64.4 18 450 400 350 25 18 7 432
HDP 80_250
65 69.4 18 550 500 450 30 18 6 462
HDP 80_280
75 79.9 20 550 500 450 30 18 6 462
HDP 90_160
42 45.3 12 350 300 250 23 18 6 427
HDP 90_180
48 51.8 14 350 300 250 23 18 6 427
HDP 90_200
55 59.3 16 400 350 300 — M16x23 7 452
HDP 90_225
60 64.4 18 450 400 350 25 18 7 457
HDP 90_250
65 69.4 18 550 500 450 30 18 6 487
HDP 90_280
75 79.9 20 550 500 450 30 18 6 487
5.1 - MOTOR MOUNTING WITH
BELL HOUSING AND
FLEXIBLE COUPLING
5.1 - AUSLEGUNG FÜR MOTORAN
-
SCHLUSS MIT GLOCKE UND
ELASTISCHER KUPPLUNG
