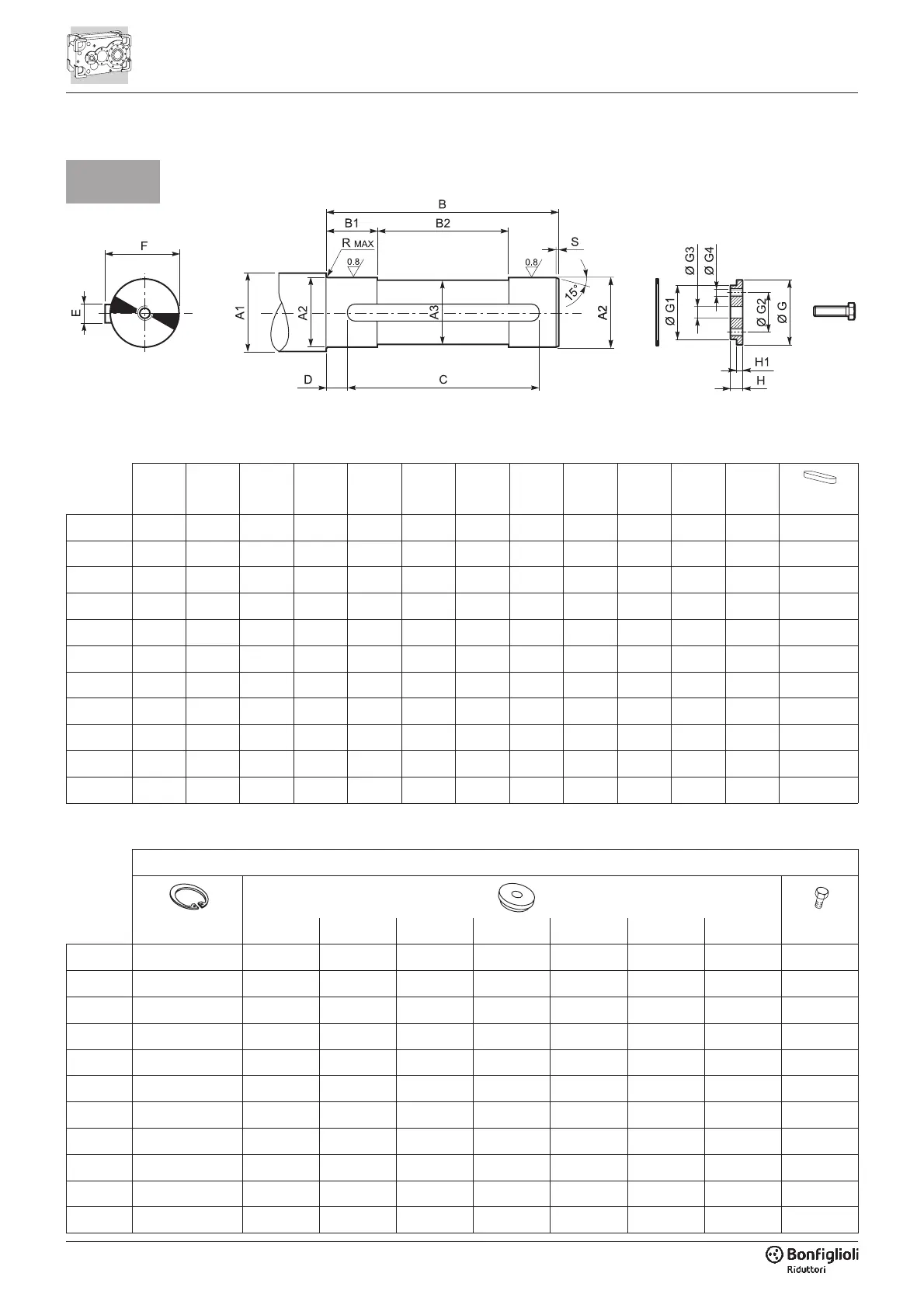

5.4 - PERNO MACCHINA 5.4 - CUSTOMER’S SHAFT 5.4 - MASCHINENZAPFEN
A1 A2 A3 B B1 B2 C D E F R S
UNI6604
HDP 60
³ 78 70 h6 69 283 56 172 220 30 20 h9 74.5 2.5 2 20x12x220A
HDP 70
³ 89 80 h6 79 283 78 127 220 30 22 h9 85 2.5 2.5 22x14x220A
HDP 80
³ 104 95 h6 94 338 73 192 280 30 25 h9 100 2.5 2.5 25x14x280A
HDP 90
³ 121 110 h6 109 378 88 202 320 30 28 h9 116 2.5 2.5 28x16x320A
HDP 100
³ 133 120 h6 119.5 420 100 250 360 30 32 h9 127 3 2.5 32x18x360A
HDP 110
³ 143 130 h6 129.5 420 100 250 360 30 32 h9 137 3 2.5 32x18x360A
HDP 120
³ 153 140 h6 139.5 444 110 260 400 40 36 h9 148 3 2.5 36x20x400A
HDP 130
³ 183 170 h6 169.5 540 135 310 400 80 40 h9 179 3 2.5 40x22x400A
HDP 140
³ 193 180 h6 179.5 540 135 310 400 80 45 h9 190 3 2.5 45x25x400A
HDP 150
³ 223 210 h6 209.5 667 155 400 500 100 50 h9 221 3 3 50x28x450B
HDP 160
³ 223 210 h6 209.5 667 155 400 500 100 50 h9 221 3 3 50x28x450B
H
Escluso dalla fornitura / out of scope for supply / Nicht im Lieferumfang enthalten
UNI7437 UNI5739
G G1G2G3G4 H H1
HDP 60
— 90 70 d9 — 22 — 10 8.5 M20x50
HDP 70
— 100 80 d9 — 22 — 10 8.5 M20x50
HDP 80
— 115 95 d9 — 26 — 15 13.5 M24x60
HDP 90
— 130 110 d9 — 26 — 15 13.5 M24x60
HDP 100
120x4 120 d9 96 64 26 M16 24 12 M24x70
HDP 110
130x4 130 d9 105 69 26 M20 24 12 M24x70
HDP 120
140x4 140 d9 115 79 26 M20 30 15 M24x80
HDP 130
170x4 170 d9 142 102 33 M24 34 17 M30x90
HDP 140
180x4 180 d9 150 110 33 M24 34 17 M30x90
HDP 150
210x5 210 d9 178 140 33 M24 36 18 M30x100
HDP 160
210x5 210 d9 178 140 33 M24 36 18 M30x100
