Bosch Security Systems | 2007-11 | 9922 141 70691 en
DCN Wireless | Installation and User Instructions | Central Devices en | 56
11.4.3 Tripod
You can use the bracket to install the wireless access
point on an LBC1259/00 Universal Floor-stand. Refer
to figure 11.3.
11.4.4 Logo
You can change the orientation of the logo. Refer to
figure 11.4:

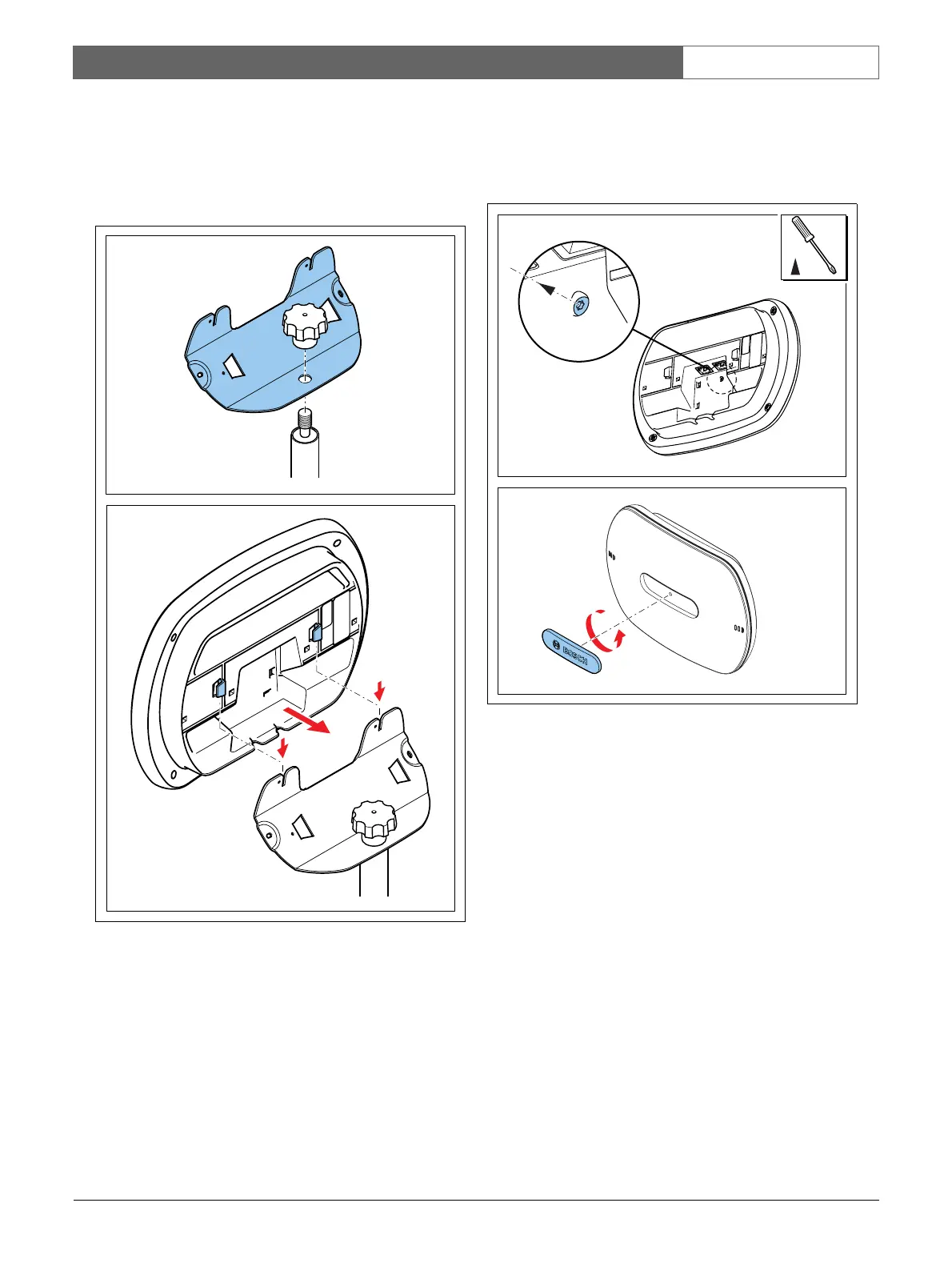

figure 11.3: Installation, LBC1259/00
02
01
figure 11.4: Installation, logo
02
01
TORX 10
