10 | Display Configuration
60/148
DDU 9
Bosch Motorsport
10.4.4
Option 3: CAN input signal, math channel or
ANA_IN channel

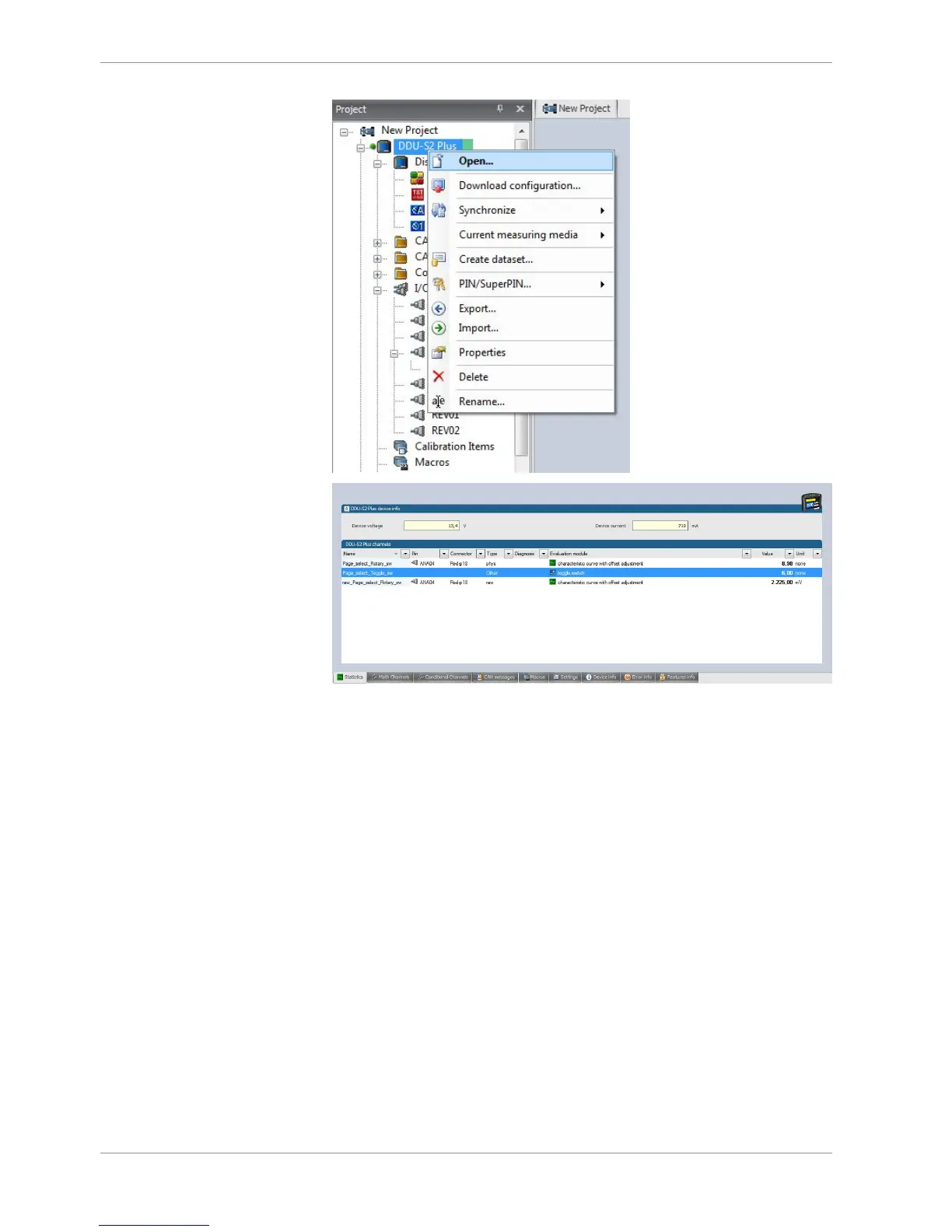

Define your CAN, math or analog input channel.
1.
Select the 'Display' tab and then the 'Settings' tab at the bottom.
