System overview
The DICENTIS Wireless Conference System is a “standalone” IP based system. It uses
WiFi IEEE 802.11n for wireless distribution and processing of audio and data signals.

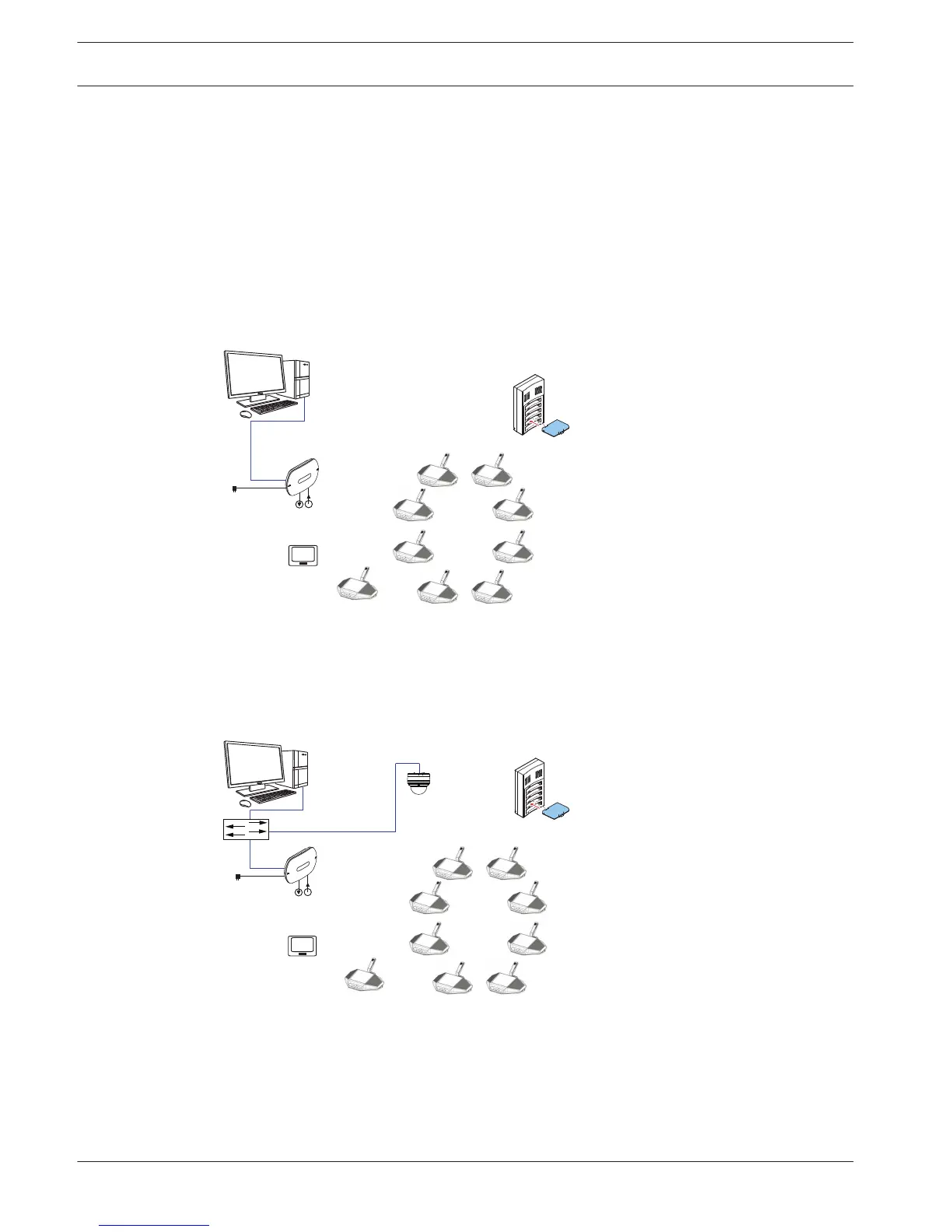

A typical DICENTIS Wireless Conference System (see the following figure and numbering on
the next page) consists of a Wireless Access Point (1) (including power supply adapter)
Wireless Devices (4 + 5) (including Battery Pack and microphone) a tablet device (7) for
operational use, PC/laptop (8) for licensing and operational use (The PC/laptop is only
needed temporarily for licensing and updates of the system software), and Battery Pack
Charger (6).
8
9
6
7
1
4
5
9
2
3
Figure 3.1: Typical DICENTIS Wireless Conference System
A typical extended DICENTIS Wireless Conference System (see the following figure and
numbering on the next page) has an additional Ethernet network/video switch (10) and HD
Conference Dome (11).
8
6
9
7
1
2
3
4
5
9
9
10
11
Figure 3.2: Typical extended DICENTIS Wireless Conference System
