4.4 RS-232 COM port connections
The RS-232 COM port is used to connect a PC to the unit for service purposes or to connect a
Bosch “RS-232 to Bi-Phase Converter”. For service purposes, use a null-modem cable to
connect the serial port of the PC to the unit. The Baud rate can be selected in the menu
system.
Specifications
Connector type: 9-pole D-type male connector
Maximum input voltage: ±25V
Communicaton protocol: Output signals according EIA/TIA-232-F

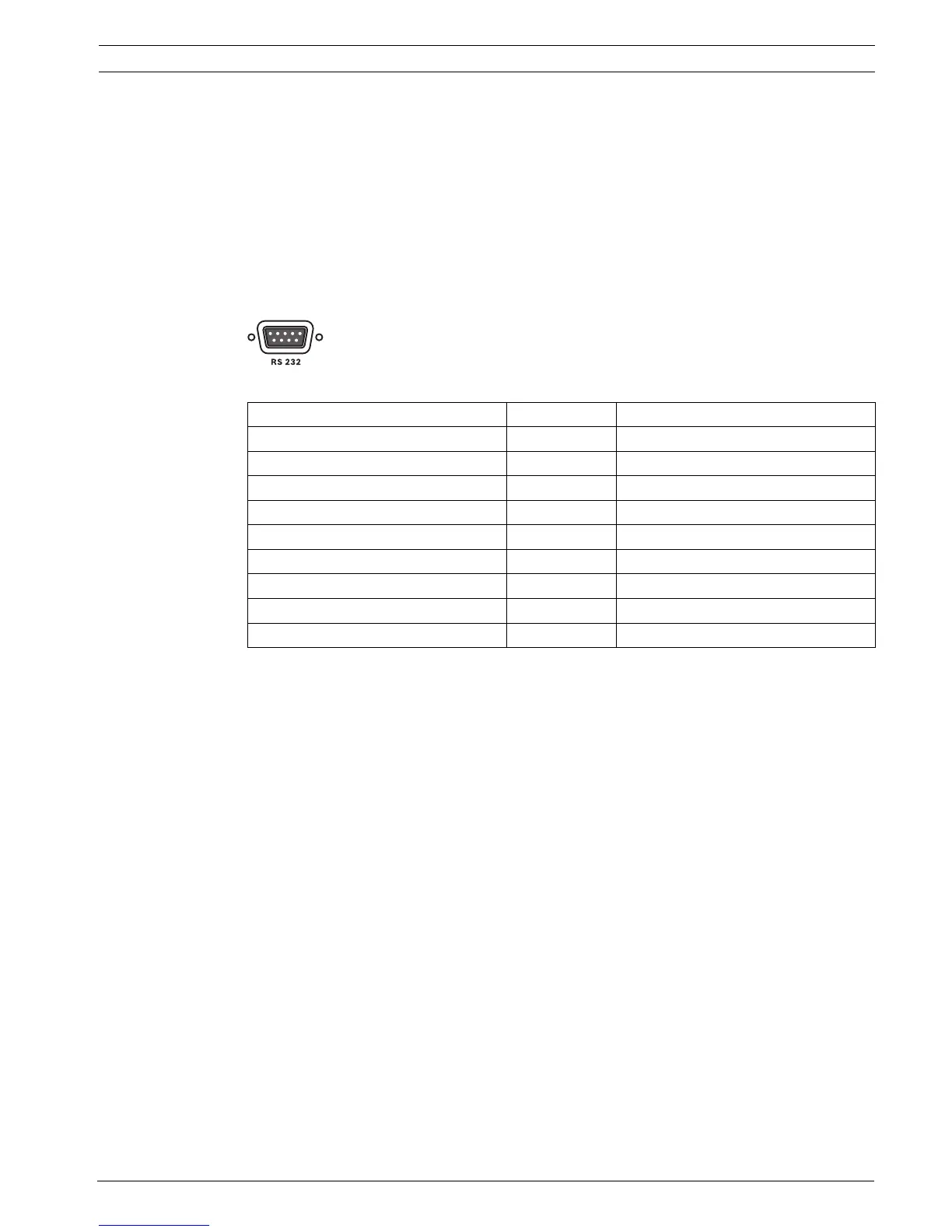

Figure 4.5 RS-232 COM port connector
Table 4.1 RS232 console port socket
Signal name Pin number Description
DCD_in 1 Carrier detection signal (not used)
RX 2 RS-232 receive signal
TX 3 RS-232 transmit signal
N/C 4 No connection
System ground 5 System ground
N/C 6 No connection
RTS 7 RS-232 request to send signal
CTS 8 RS-232 clear to send signal
N/C 9 No connection
