– Stop: No recording on the selected channels
Network

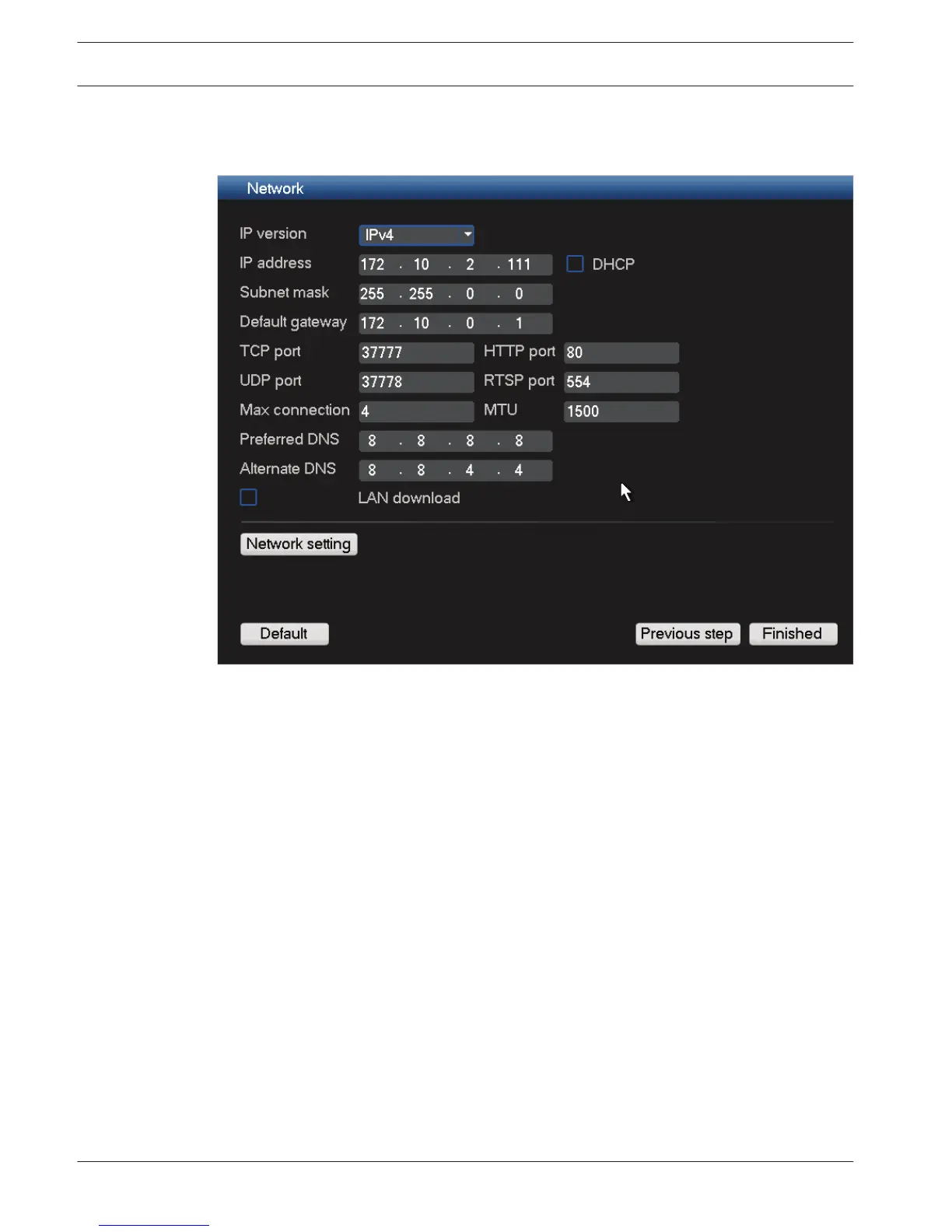

Figure 4.8: Startup network
Assign here all the network settings and click <Finished>
to complete the Startup wizard (you
will need to confirm the setup by clicking <OK>). You are now ready to start operating the
system.
Operating the system
The system will automatically display the active view mode (with a maximum 16 camera
views). From here you can operate your system using the mouse, remote control or front
panel.
When you eventually need to log off from your system (or shut down completely), use the
Shutdown menu – see Shutdown/Logout, page 26.
Shutdown/Logout
1.
Right-click the-mouse to access the Quick menu; from here choose the option Main
menu.
2. Select <Shutdown> on the main menu for the Shutdown dialog box.
3. Choose Logout user from the drop-down options.
4.4.6
4.5
26 en | Quick install
DIVAR 3000/5000 Digital Video
Recorder
2013.05 | 1.0 | DIVAR 3000/5000 Digital Video
Recorder
Operator Manual Bosch Security Systems
