Text data overlay
This function includes Sniffer, information analysis and title overlay function. The Sniffer mode
can be either COM or NET (network).
NET Type
The network type interface is shown below.

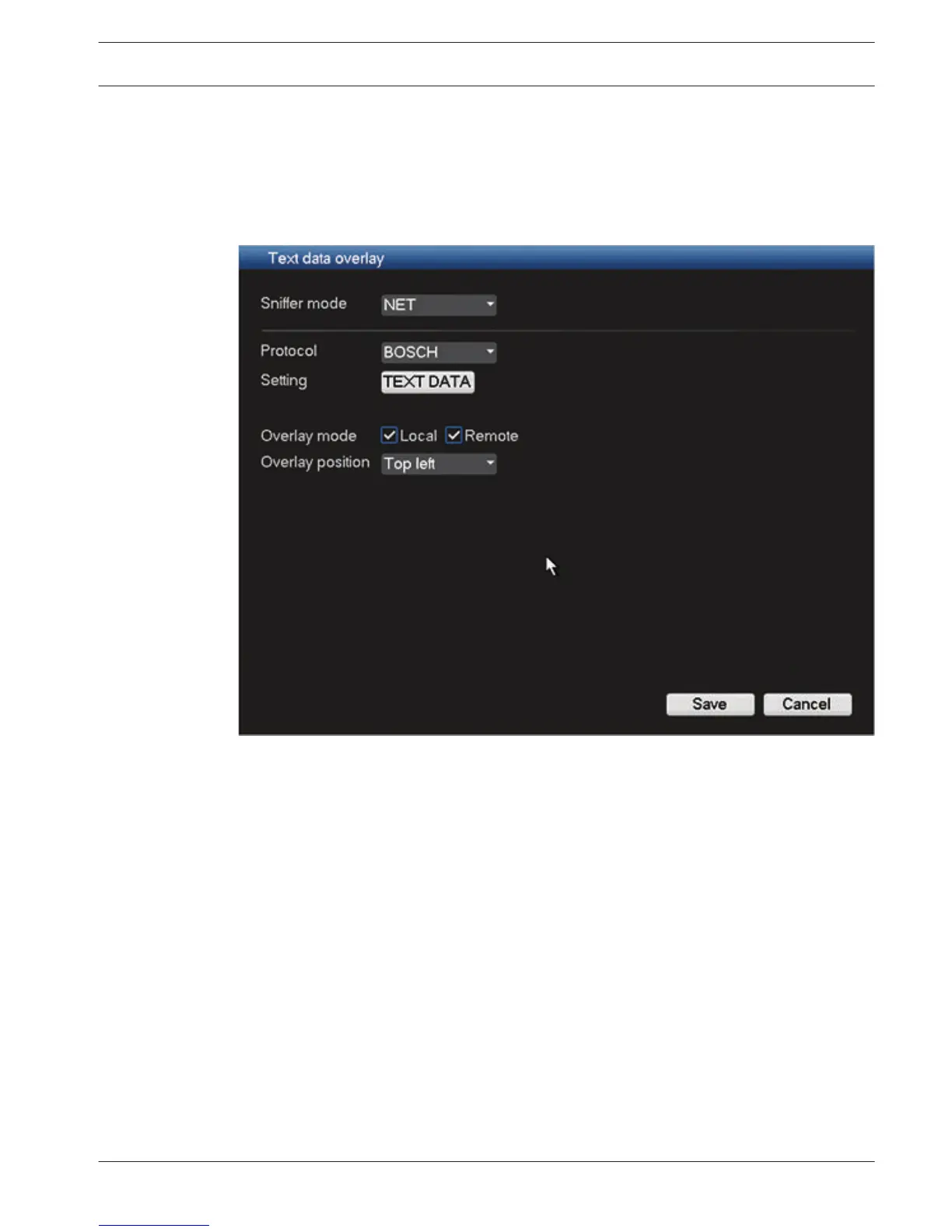

Figure 6.39: Text data overlay NET
–
Protocol: Currently only the BOSCH protocol is available
– Setting: Click this button to access the ATM/POS screen – see below.
– Overlay mode: Choose from:
– Local - overlay the card number in the local monitor video
– Remote - overlay the record file
– Overlay position: Choose from Top left, Bottom left, Top right or Bottom right
COM Type
– Currently only the BOSCH protocol is available
– Setting: Click <COM setting> for a new interface as shown in the ‘Serial port’ interface.
See Serial port, page 45.
– Overlay channel: Select the channel(s) you want to overlay
– Overlay mode: Choose from:
– Local - overlay the card number in the local monitor video
– Remote - overlay the record file
– Overlay position: Choose from Top left, Bottom left, Top right or Bottom right
