Wiring Diagrams for Single-Phase Units

20.2 Two-Stage, Single-Phase Unit with Optional Components and Belt-Drive Motor

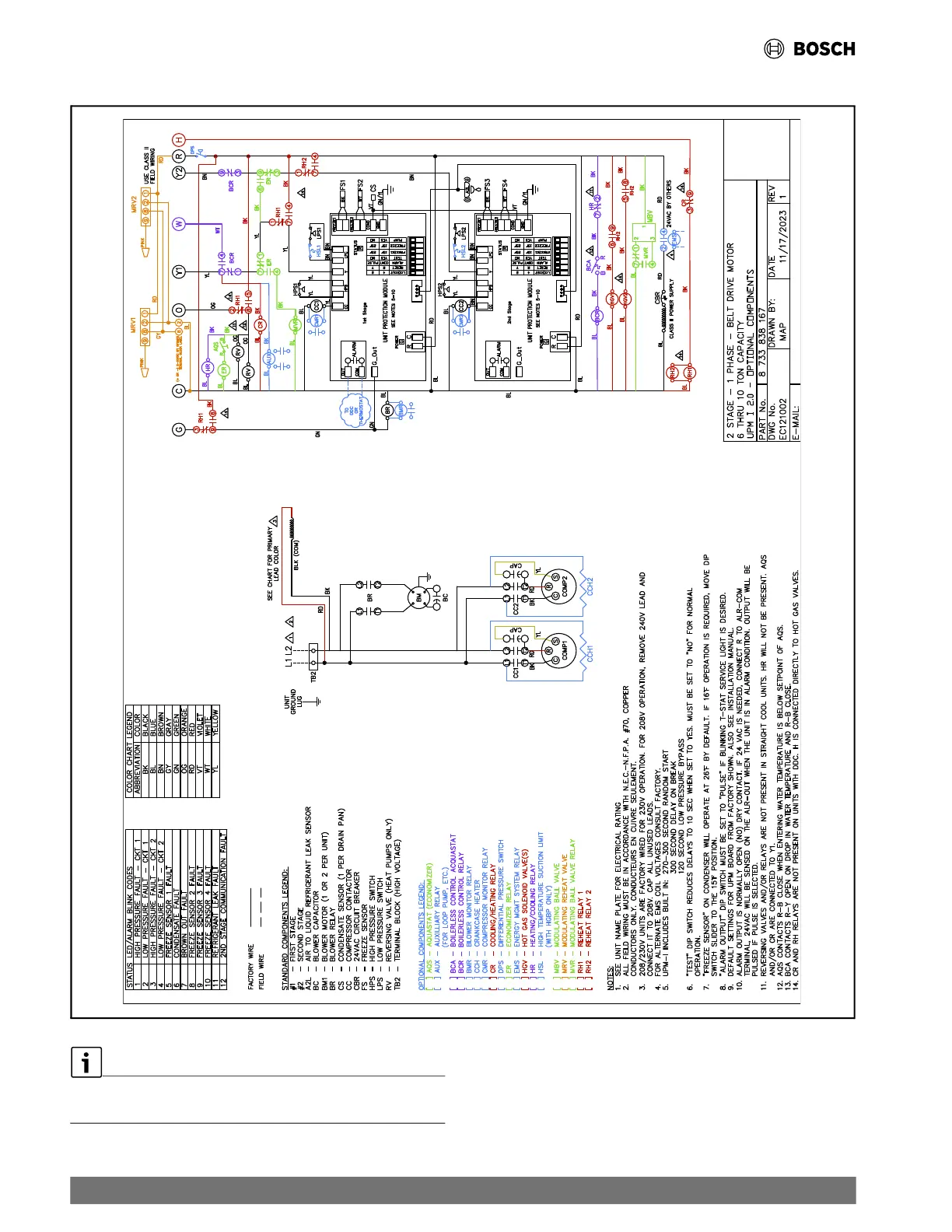

Fig. 17 Two-Stage, Single-Phase Unit with Optional Components and Belt-Drive Motor

FOR REFERENCE ONLY. Actual unit wiring may vary from this

example. Always refer to the wiring diagram attached to the unit.

58 |

EC Series Heat Pumps — 8733841499 (2024/05)
