Wiring Diagrams for Three-Phase Units

21.15 Two-Stage, Three-Phase Unit with DDC, Optional Components, and VFD Inverter-Duty Motor (Ready for Field-

Installed Blower Control)

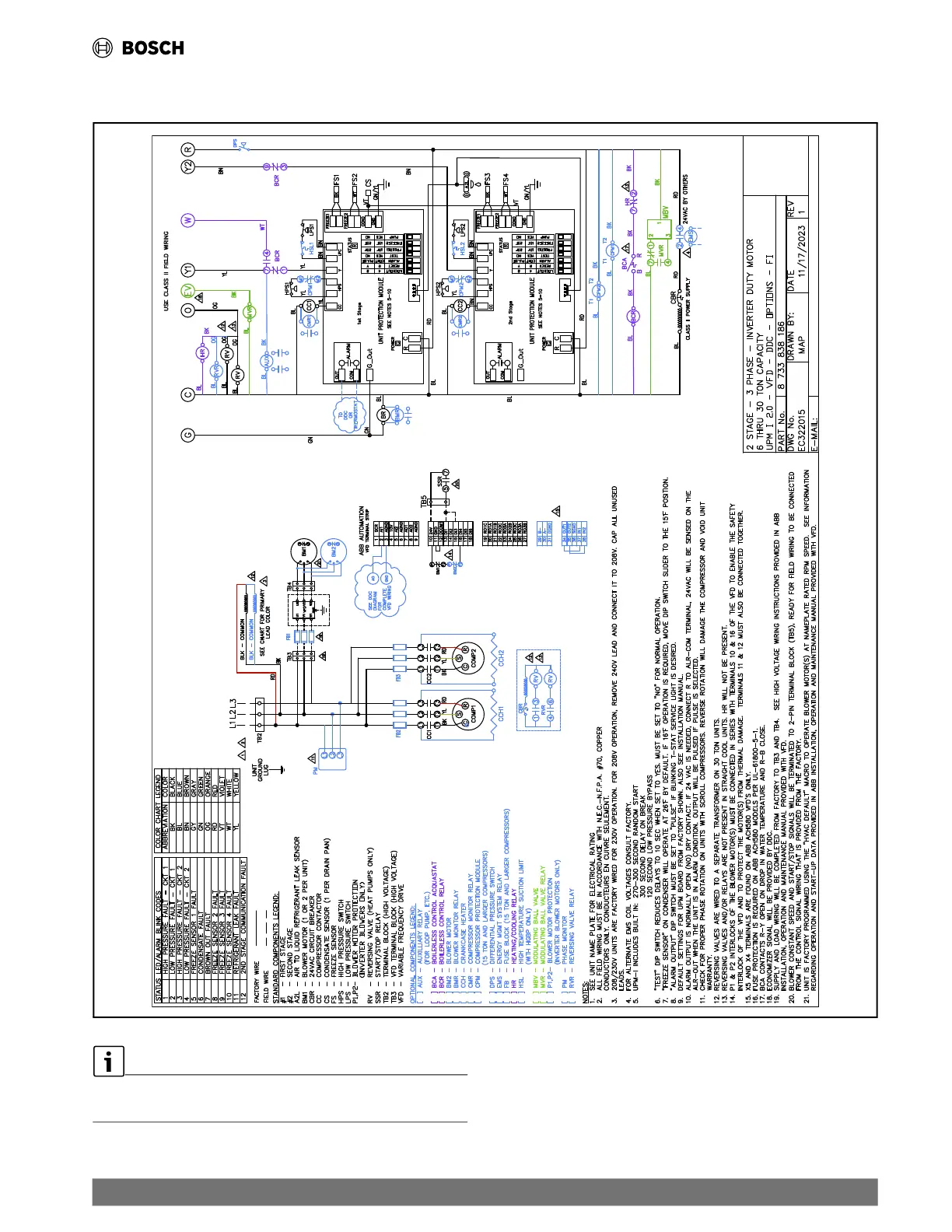

Fig. 36 Two-Stage, Three-Phase Unit with DDC, Optional Components, and VFD Inverter-Duty Motor (Ready for Field-Installed Blower Control)

FOR REFERENCE ONLY. Actual unit wiring may vary from this

example. Always refer to the wiring diagram attached to the unit.
