Wiring Diagrams for Three-Phase Units

21.13 Two-Stage, Three-Phase Standard Unit with VFD Inverter-Duty Motor (Ready for Field-Installed Blower Control)

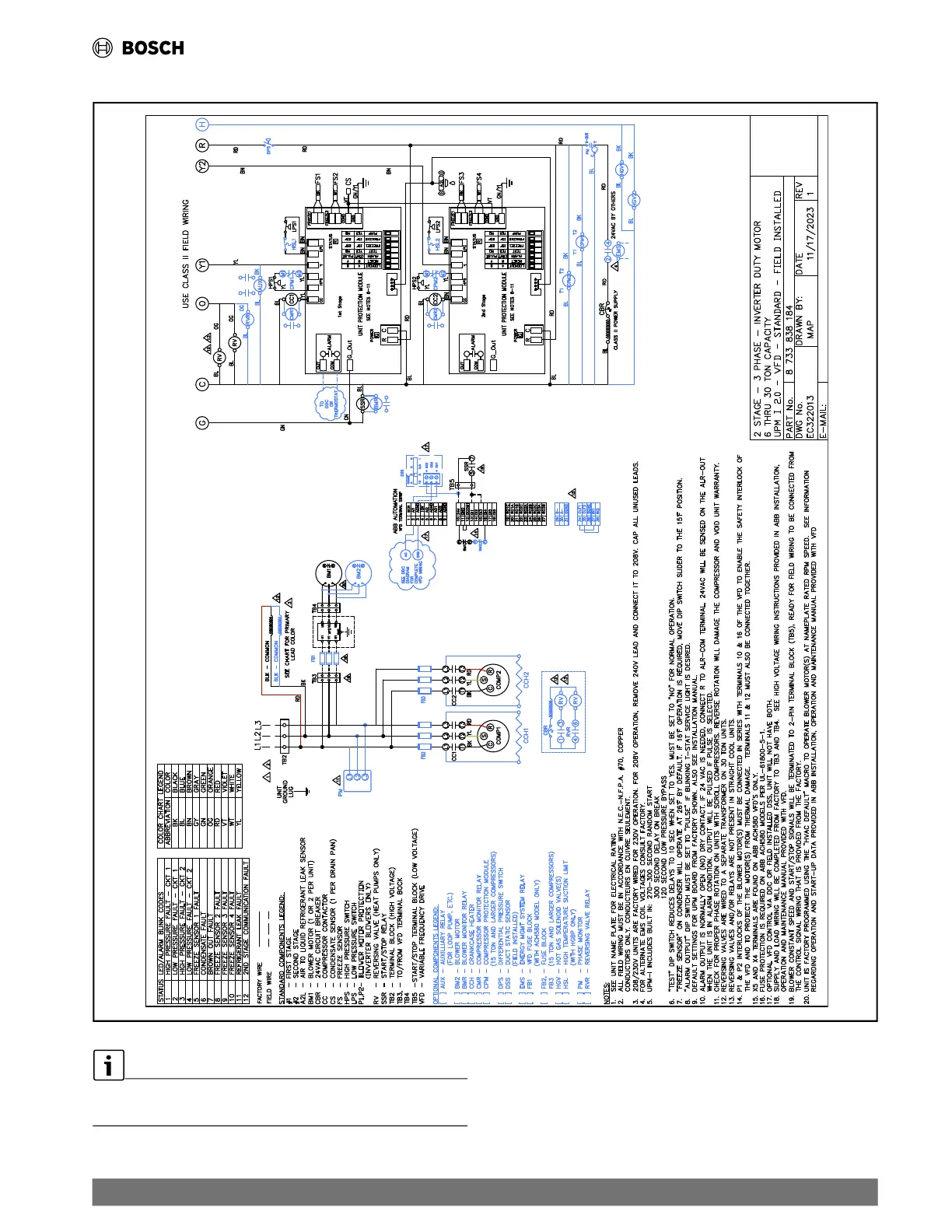

Fig. 34 Two-Stage, Three-Phase Standard Unit with VFD Inverter-Duty Motor (Ready for Field-Installed Blower Control)

FOR REFERENCE ONLY. Actual unit wiring may vary from this

example. Always refer to the wiring diagram attached to the unit.

| 75

EC Series Heat Pumps — 8733841499 (2024/05)
