Wiring Diagrams for Three-Phase Units

21.10 Two-Stage, Three-Phase Standard Unit with Dual-Point Power and VFD Inverter-Duty Motor

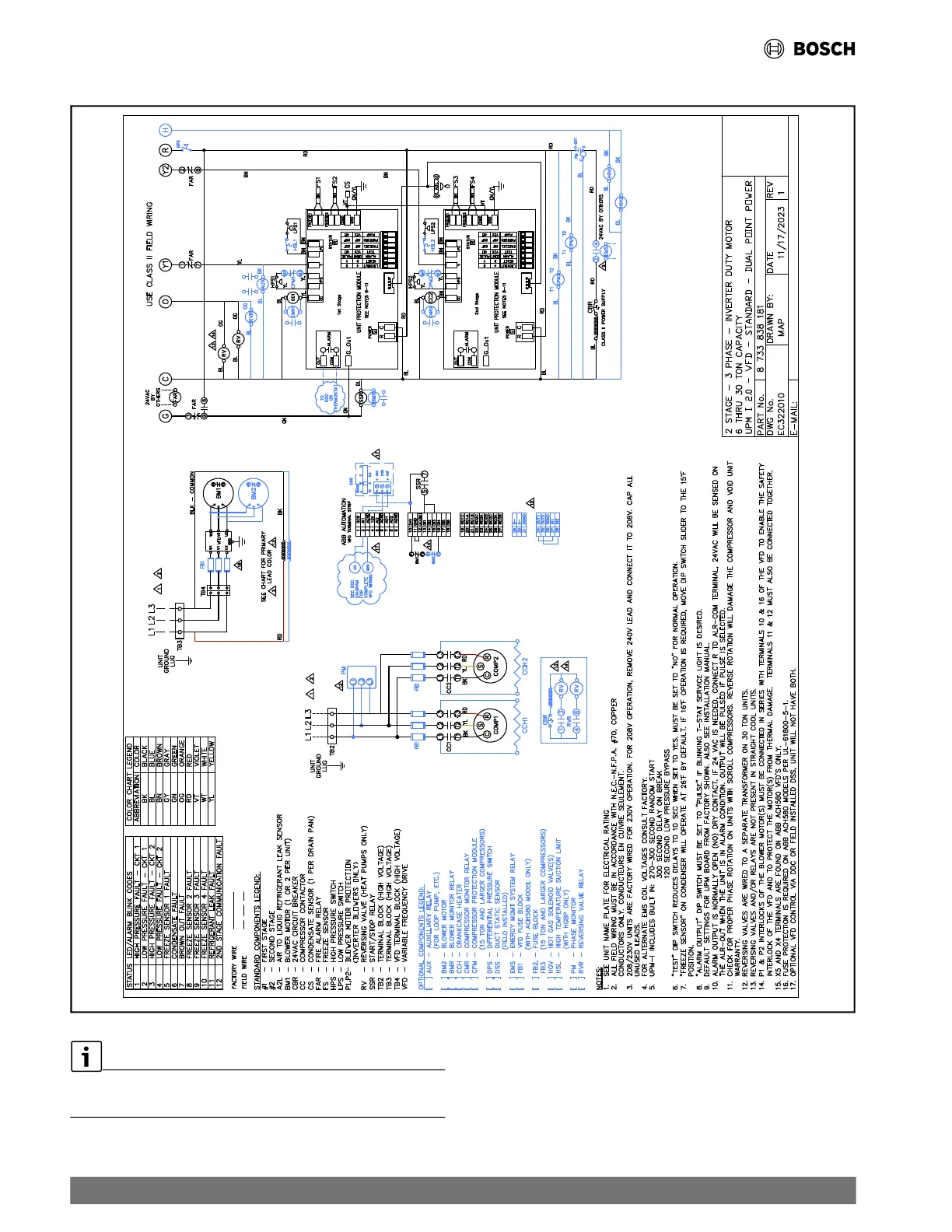

Fig. 31 Two-Stage, Three-Phase Standard Unit with Dual-Point Power and VFD Inverter-Duty Motor

FOR REFERENCE ONLY. Actual unit wiring may vary from this

example. Always refer to the wiring diagram attached to the unit.
