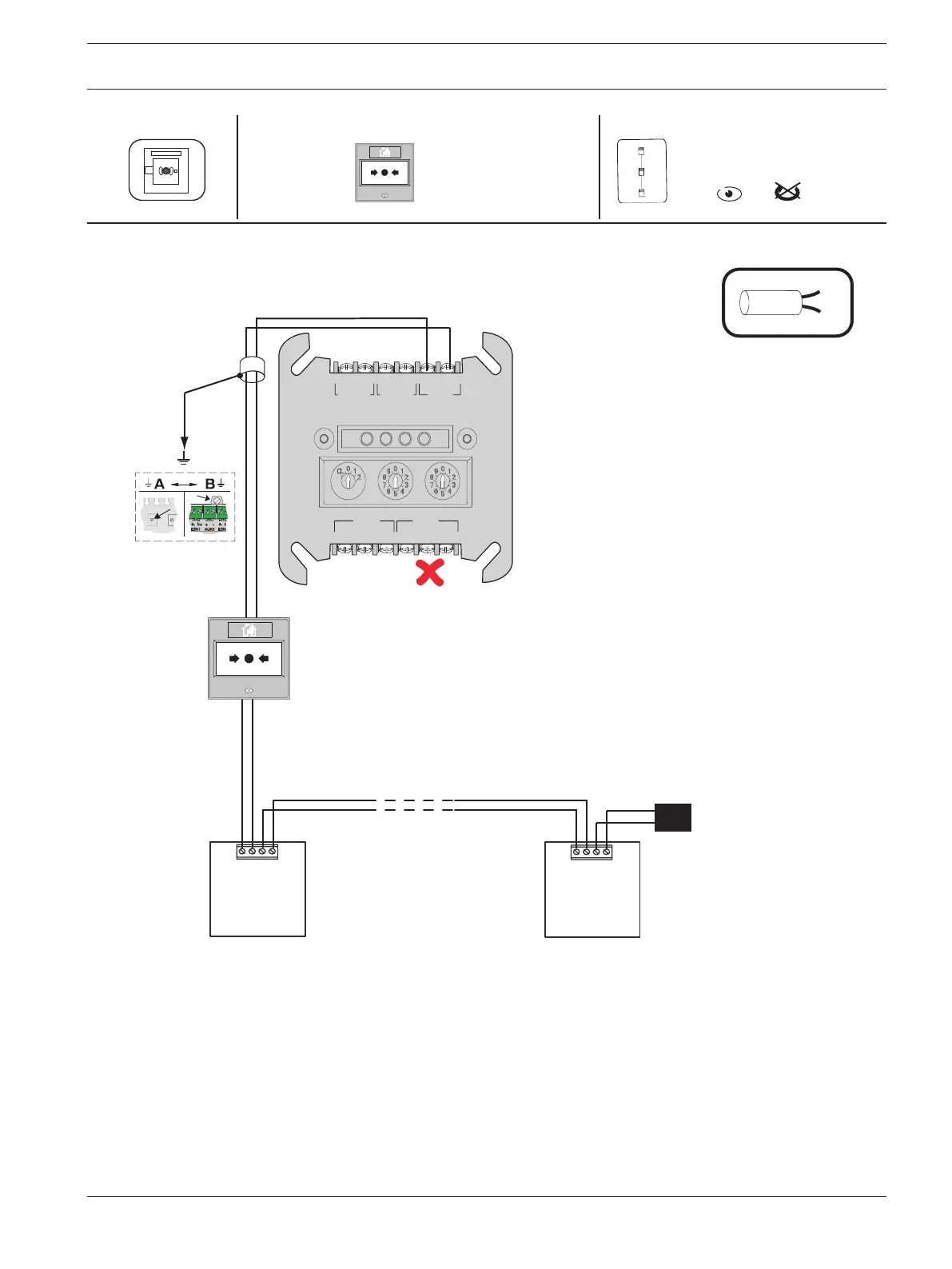

Bosch FPA-5000 Wiring Guide

i
b1+ a- b2+
2+ 1/2- 1+
LSN
AUX
PWR IN
LSN AUX
OUT2/IN1
OUT1
or
EXT.PWR
–
+
–
+
–
+
FLM-420/4-CON-D
b1
a1
b2
a2
b1
a1
b2
a2
FMC-300
FMC-300
FLM-320-EOL2W
EN 54-13
2
GLT
Modular Fire Panel Wiring | en 131
Bosch Sicherheitssysteme GmbH Wiring Guide 2016.07 | 12.6 | F.01U.009.201

Bosch FPA-5000 Specifications

General

Max Number of Detectors per Loop	254
Display	LCD
Network Capability	Yes
Power Supply	24 V DC
Operating Temperature	-5°C to +50°C
Communication Ports	Ethernet
Humidity Range	95% non-condensing
