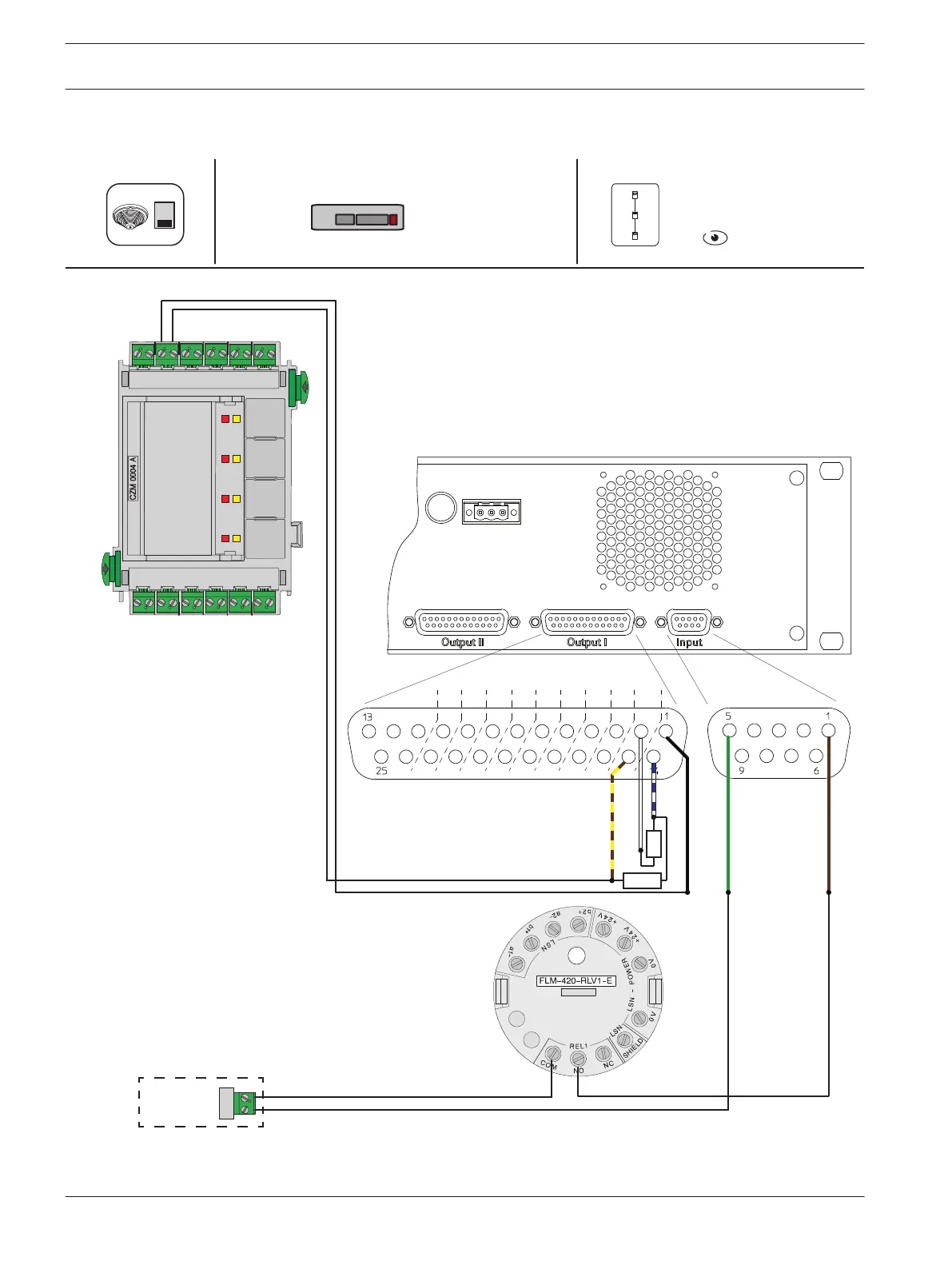

Bosch FPA-5000 Wiring Guide

CZM 0004 A
Al 1Al 2Al 3Al 4Al 5Al 6Al 7Al 8Al 9 FAULT
N4387AN4387A
820
2k2/3k9
1
AUX
+
–
FPP-5000
BCM-0000-B
24V & Reset
CZM 0004 A
AUX1
+
–
AUX2
+
–
OUT1
–
+
OUT2
–
+
IN1
–
+
IN2
–
+
IN3
–
+
IN4
–
+
OUT3
–
+
OUT3
–
+
AUX3
+
–
AUX4
+
–
3.6.2
182 en | Wiring Modular Fire Panel
2016.07 | 12.6 | F.01U.009.201 Wiring Guide Bosch Sicherheitssysteme GmbH

Bosch FPA-5000 Specifications

General

Max Number of Detectors per Loop	254
Display	LCD
Network Capability	Yes
Power Supply	24 V DC
Operating Temperature	-5°C to +50°C
Communication Ports	Ethernet
Humidity Range	95% non-condensing
