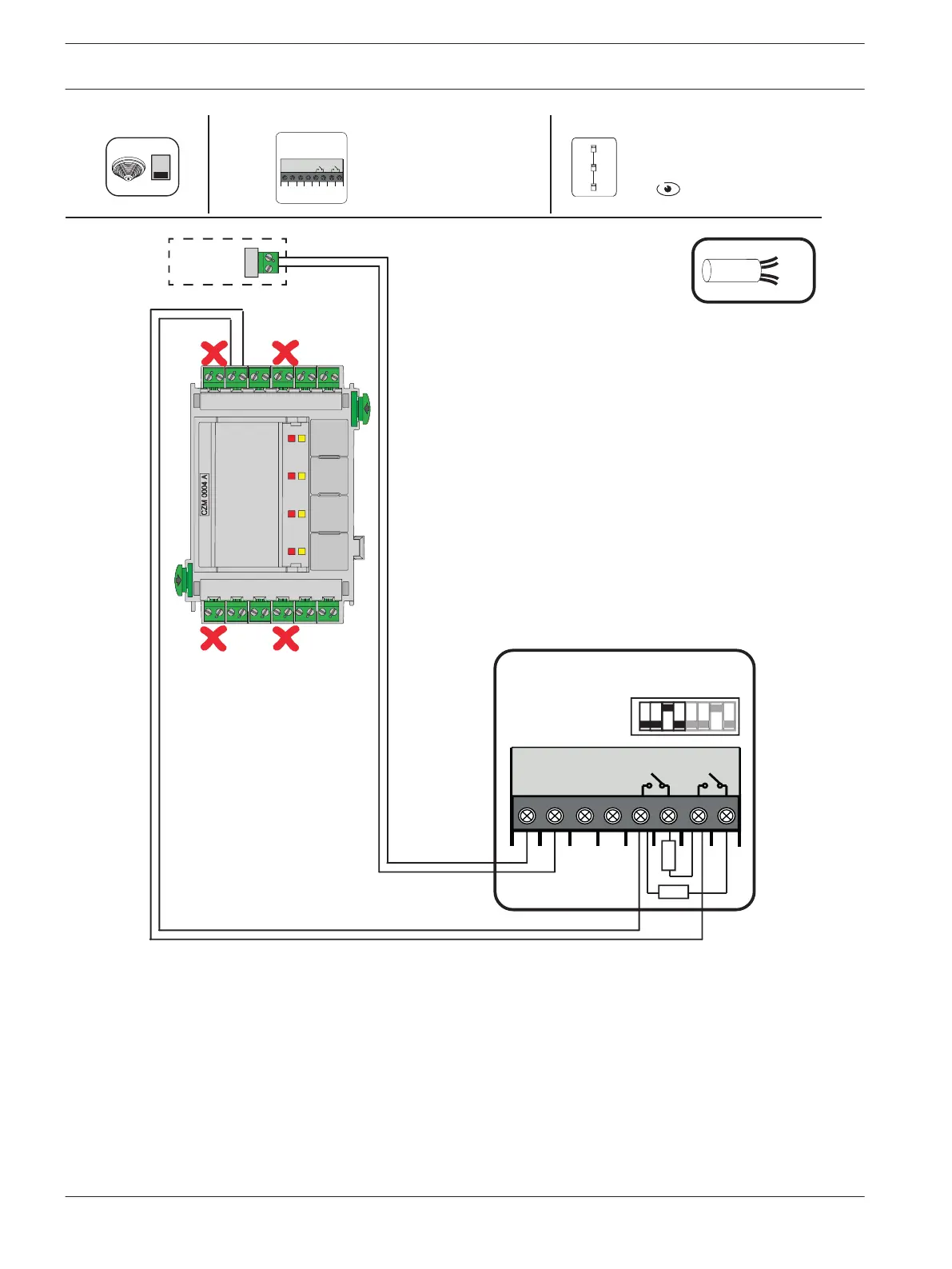

Bosch FPA-5000 Wiring Guide

0165X9
IR3 Flame Detector
AUX
+
–
BCM-0000-B
LSN 0300 A
LSN 1500 A
4
CONV
AUX
820
3k92
0165X9
+IN
-IN
ALARM (NO) FAULT (NC)
0165X9
+IN -IN
ALARM (NO) FAULT (NC)
0
1
CZM 0004 A
AUX1
+
–
AUX2
+
–
OUT1
–
+
OUT2
–
+
IN1
–
+
IN2
–
+
IN3
–
+
IN4
–
+
OUT3
–
+
OUT3
–
+
AUX3
+
–
AUX4
+
–
184 en | Wiring Modular Fire Panel
2016.07 | 12.6 | F.01U.009.201 Wiring Guide Bosch Sicherheitssysteme GmbH

Bosch FPA-5000 Specifications

General

Max Number of Detectors per Loop	254
Display	LCD
Network Capability	Yes
Power Supply	24 V DC
Operating Temperature	-5°C to +50°C
Communication Ports	Ethernet
Humidity Range	95% non-condensing
