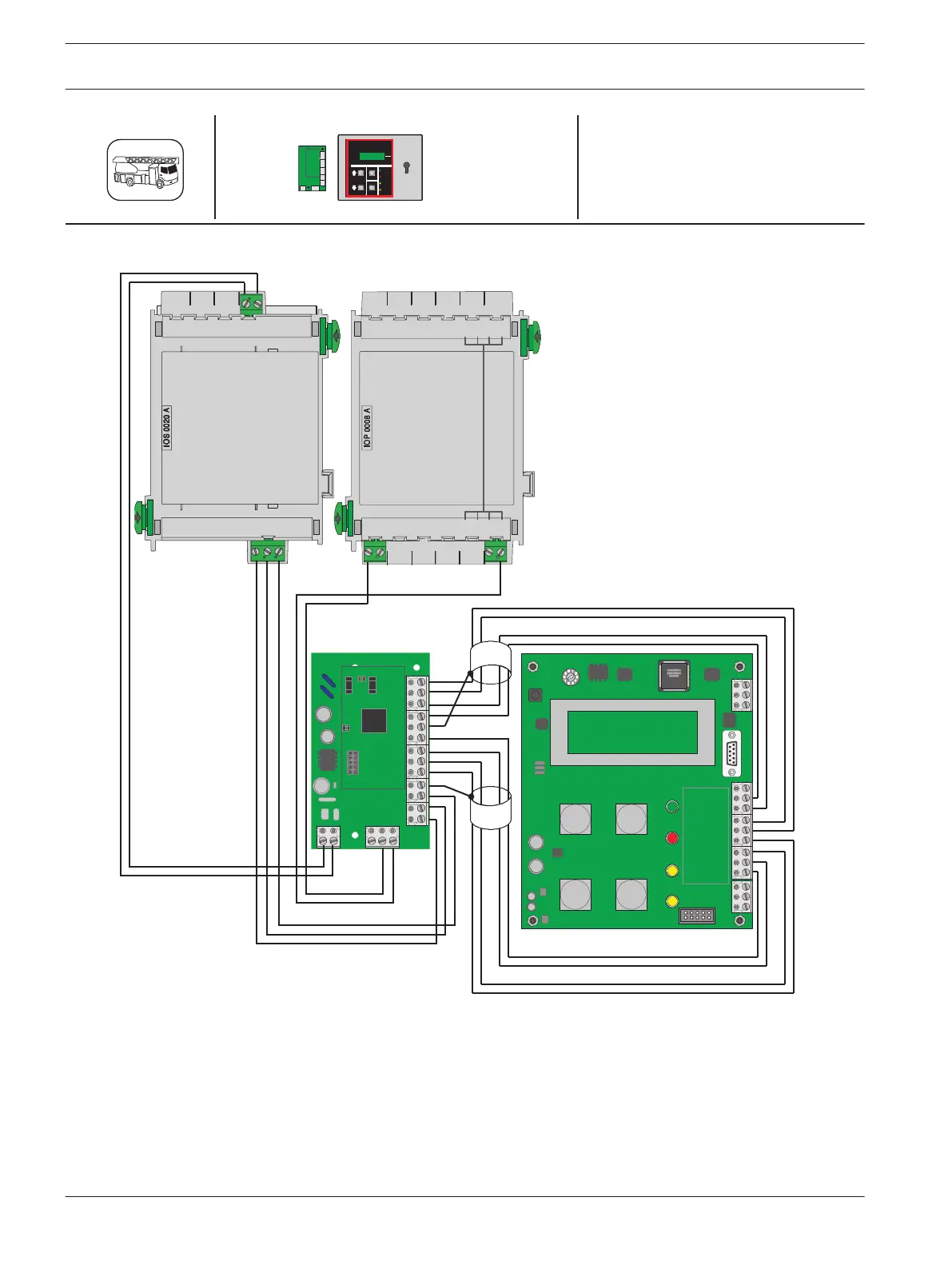

Bosch FPA-5000 Wiring Guide

IOP 0008 A
IN1 IN2 IN3 IN4 IN5 IN6 IN7 IN8 GND GND GND GND
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8 GND GND GND GND
IOS 0020 A
RXD TXD GND
IN OUT
S1 TX RX AUX
– + + – – +
ADP--NB
Schirm
A2
B2
O
N
C
N C
0V +UB
UB1
GND
Schirm
A1
B1
TxD
RxD
GND
UB2
GND
23
2
SR
GND2
+UB2
B2
A2
GND1
+UB1
B1
A1
NO
NC
C
FAT 2002 RE
FAT 2002 RE
ADP-NB
262 en | Wiring Modular Fire Panel
2016.07 | 12.6 | F.01U.009.201 Wiring Guide Bosch Sicherheitssysteme GmbH

Bosch FPA-5000 Specifications

General

Max Number of Detectors per Loop	254
Display	LCD
Network Capability	Yes
Power Supply	24 V DC
Operating Temperature	-5°C to +50°C
Communication Ports	Ethernet
Humidity Range	95% non-condensing
