19.4.1 Zone Allocations for Area 1
Location
434 to 441
Location Default
Area 1 – Zone 1 indicator 434 0
Area 1 – Zone 2 indicator 435 0
Area 1 – Zone 3 indicator 436 0
Area 1 – Zone 4 indicator 437 0
Area 1 – Zone 5 indicator 438 0
Area 1 – Zone 6 indicator 439 0
Area 1 – Zone 7 indicator 440 0
Area 1 – Zone 8 indicator 441 0
19.4.2 Zone Allocations for Area 2
Location
442 to 449
Location Default
Area 2 – Zone 1 indicator 442 0
Area 2 – Zone 2 indicator 443 0
Area 2 – Zone 3 indicator 444 0
Area 2 – Zone 4 indicator 445 0
Area 2 – Zone 5 indicator 446 0
Area 2 – Zone 6 indicator 447 0
Area 2 – Zone 7 indicator 448 0
Area 2 – Zone 8 indicator 449 0
Example
In this example, Zones 1, 2, 3, and 4 are allocated to
Area 1 to appear as zones 1, 2, 3 and 4. Zones 1, 5, 6,
7, 8 are allocated to Area 2 to appear as zones 1, 5, 6,
7, and 8. Programming the same zone into more than
one area specifies that zone as a common zone.

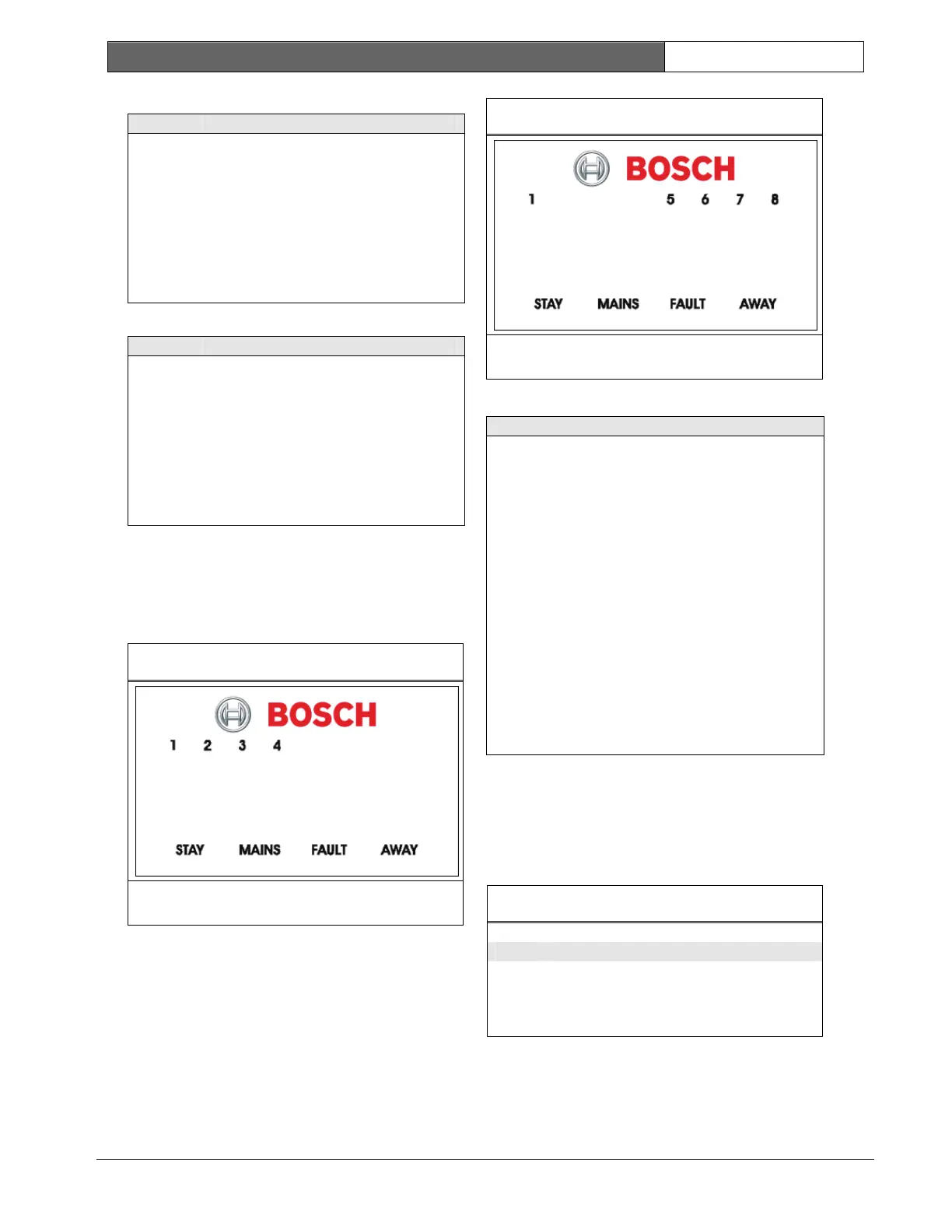

Figure 14: Area 1 Codepad Display
Area 1 Zone Allocations
Locations 434 to 441: 1 2 3 4 0 0 0 0
Figure 15: Area 2 Codepad Display
Area 2 Zone Allocations
Locations 442 to 449: 1 0 0 0 5 6 7 8
19.5 User Code Allocations
Location
450 to 465
Location Default
User Code 1 450 0
User Code 2 451 0
User Code 3 452 0
User Code 4 453 0
User Code 5 454 0
User Code 6 455 0
User Code 7 456 0
User Code 8 457 0
User Code 9 458 0
User Code 10 459 0
User Code 11 460 0
User Code 12 461 0
User Code 13 462 0
User Code 14 463 0
User Code 15 464 0
User Code 16 465 0
Locations 450 to 465 are used to assign each User
Code to one or two area areas of a partitioned ICP-
CC408 Control Panel. Enter a value from 0 to 3 into
each of these locations to assign the User Code
holder to the areas it must operate (refer to Table 64).
You can allocate multiple User Codes to the same
area.
Table 64: User Code Allocations
Option Description
0 Not allocated to an area
1 Allocated to Area 1
2 Allocated to Area 2
3 Allocated to Area 1 and Area 2
