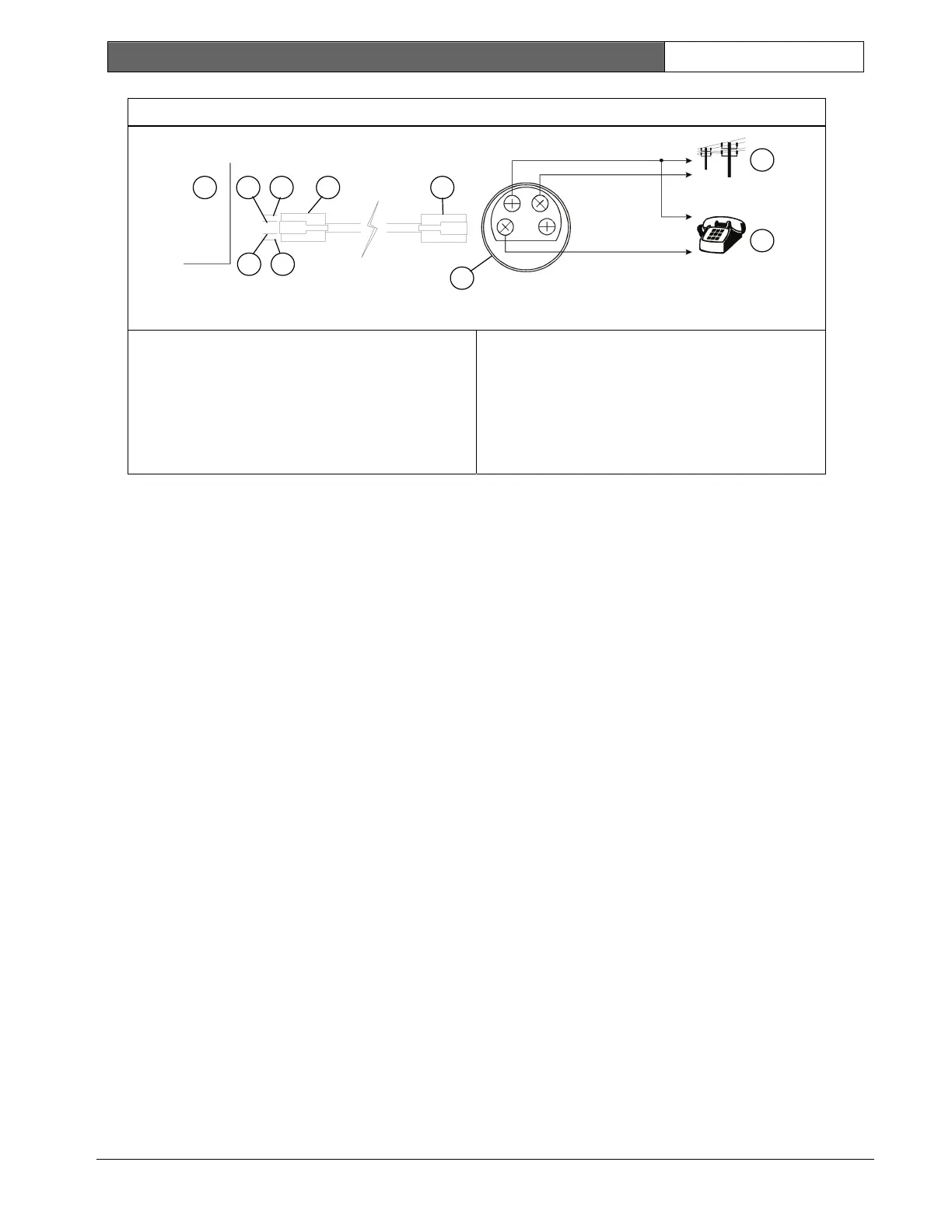

Figure 24: Telecom Connection Diagram for China
1 2 3 4 5
6
7
8
10 9
1 – Control panel
2 – Red wire
3 – Black wire
4 – 4P4C plug (top view)
5 – RJ12 plug (top view)
6 – Telecom line
7 – Internal phones
8 – Rear view of telephone plate
(green): internal phone line
(black): telecom line (street)
(yellow): internal phone line
(red): telecom line (street)
9 – Yellow wire
10 – Green wire
