a)
b)
g)
f)
e)
d)
c)

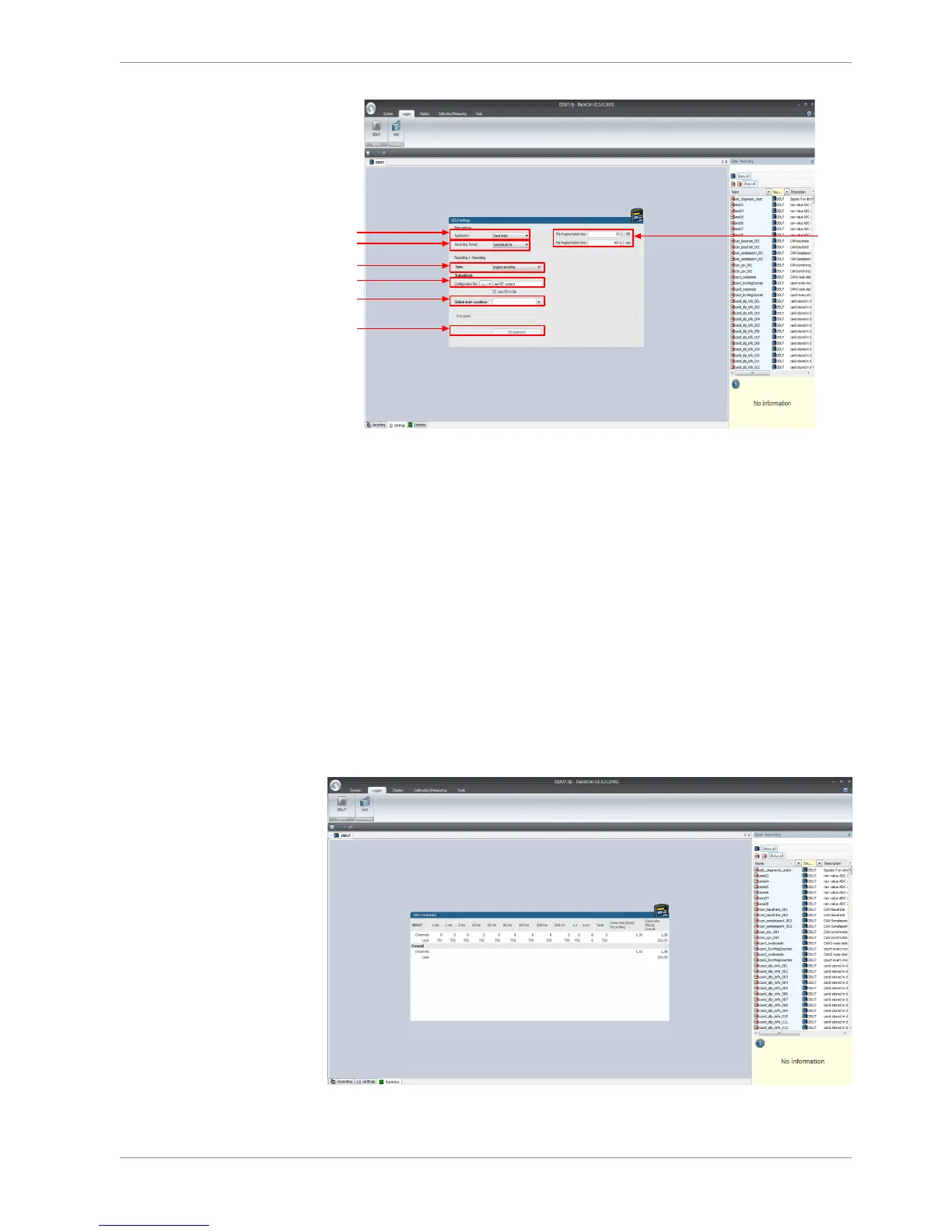

a) Choose setting for outing counter mode:
• For testbench (without lap trigger) select ‘Testbench’.
• For racetrack (with lap trigger) select ‘Racetrack’.
b) Choose your WinDarab version. In V6 the file is encrypted by WinDarab. In V7 you can enter an
optional self created password in the ‘Encryption’ field shown in f).
c) Recording Type (Engine or Chassis).
d) Statusblock configuration file for custom Statusblock definition.
e) Choose or create the condition to start recording.
f) If selecting WinDarab V7 in b), enter a password hint and a password (optional).
g) Setting for automatic fragmentation. Do not change!
14.2.4 Recording statistics
The tab ‘Statistics’ shows the channels’ allocation and their current data rate related to the
transmission frequency of the DDU 9 and the whole transmission system.
The overview helps to detect bandwidth bottlenecks of channels. Bandwidth bottlenecks
can be solved by changing the ‘fast/slow block’ setting for each channel.
The data rate of the whole system is often less than the data rate of the DDU 9 and limits
the overall transmission speed.
