Representation: Bit

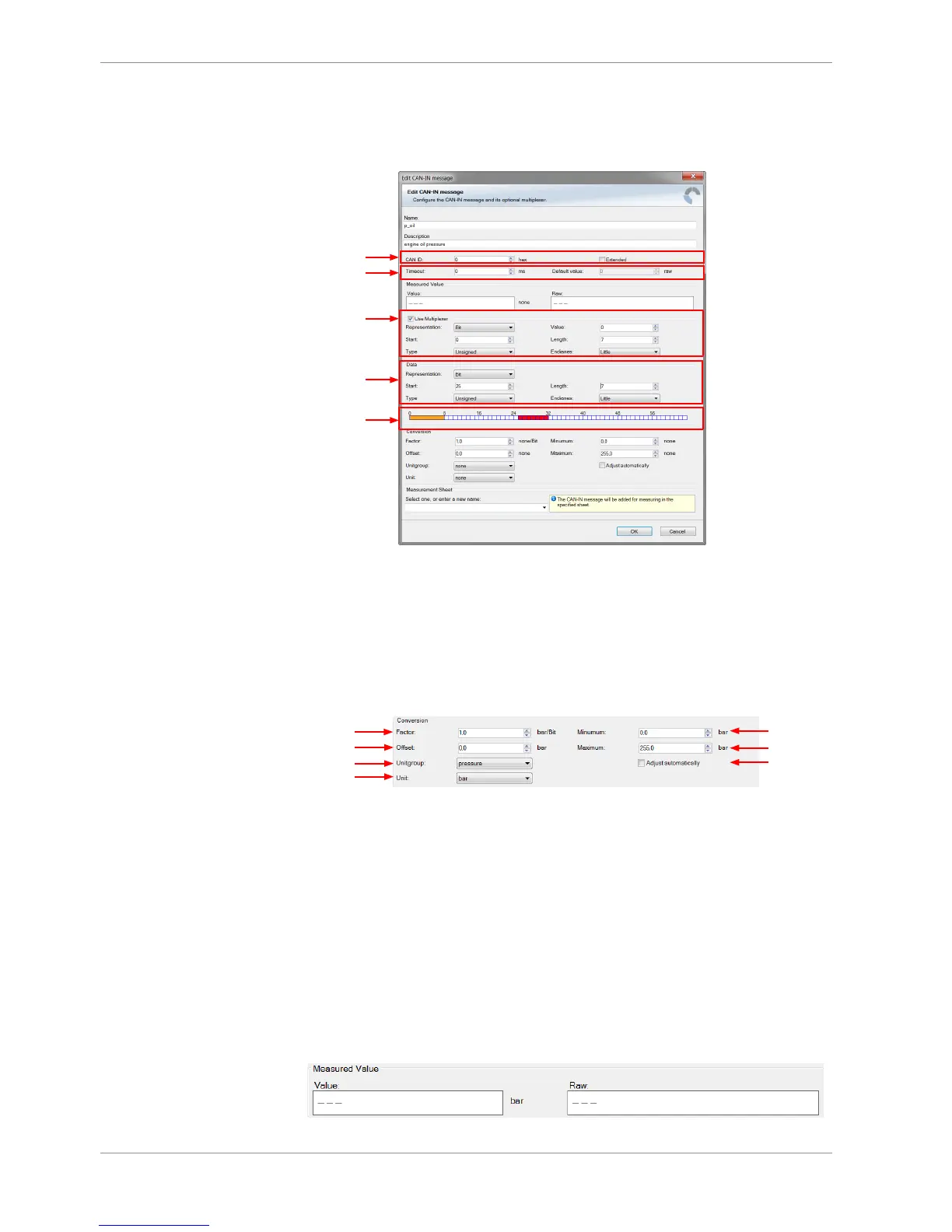

Some CAN devices need to be addressed by a bit represented CAN channel. The address
can be assigned in this window and is illustrated by a matrix table.
a)
b)
c)
d)
e)
a) Enter CAN message ID. If extended IDs (29 bit) are used, check the box.
b) If replacement values are used, specify time-out period and raw value.
c) If a multiplexer (row counter) is used, check the box.
d) Enter data position, length and format.
e) The bargraph shows the assignment of the bits.
- Red colored fields show the assignment of the data bits.
- Orange colored fields show the assignment of the multiplexer bits.
Conversion to physical values
a)
b)
c)
d)
e)
f)
g)
a) Enter factor (gain) for conversion to physical value.
b) Enter offset for conversion to physical value.
c) Select type of physical value.
d) Select unit of physical value.
e) Enter minimum physical limit of the channel. (for manual setup)
f) Enter maximum physical limit of the channel. (for manual setup)
g) Check the box to automatically adjust the limits of the channel.
Special features
CAN analyzer functionality
This functionality is only available, if a MSA-Box (I or II) is used to connect the DDU 9 to
the PC. Choose the CAN bus that is connected to the MSA-Box to display the raw value
and the converted physical value here.
