Bosch IMSA Prototype Classes Scrutineering System User Manual

12 | Analog and Frequency Inputs
84/148 DDU 9 Bosch Motorsport

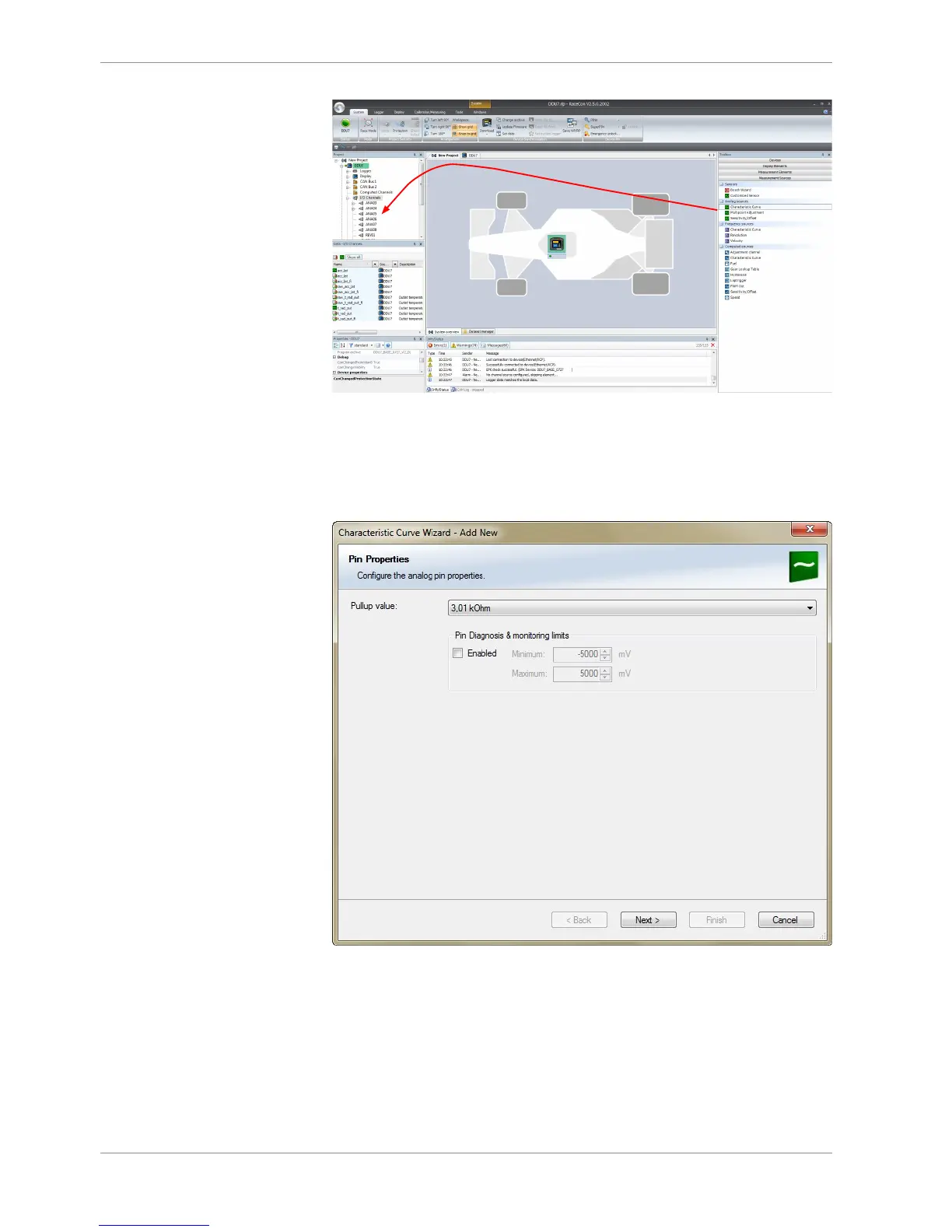

Drag + Drop
A “Characteristic Curve Wizard” opens.
4. To activate the internal pull up-resistor, check the box. The DDU 9 pull up-resistor is
used to get a 5 V signal at the analogue channel of the DDU 9. It allows you, to use a
push-button. The fixed value of the internal pull up-resistor is 3,010 Ohm. If using an
additional external pull up-resistor, set up the overall resistance.
5. Click ‘Next’ when done.
The second part of the “Sensitivity/Offset Wizard” opens.
