Bosch IMSA Prototype Classes Scrutineering System User Manual

Analog and Frequency Inputs | 12
Bosch Motorsport DDU 9 85/148

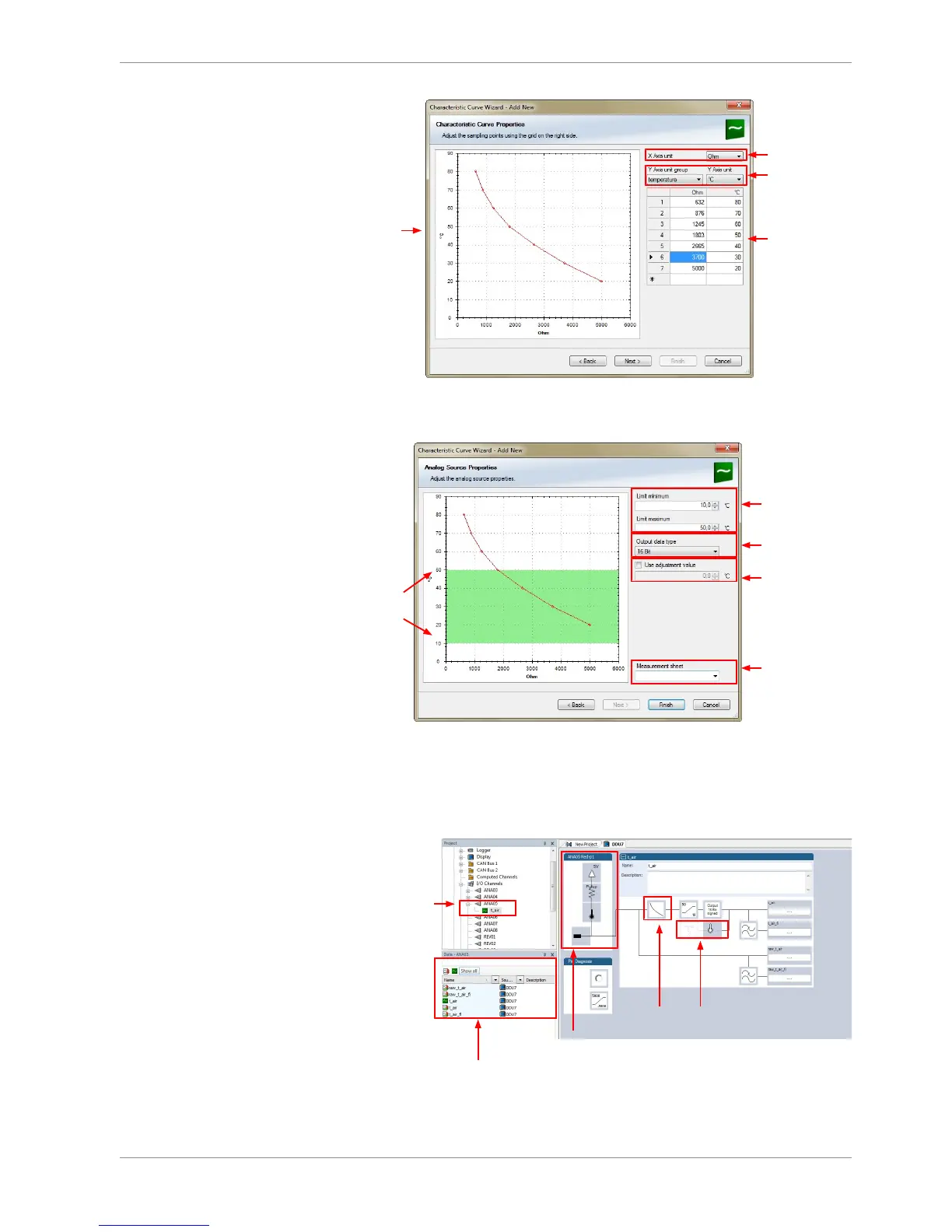

Physical
(channel)
value
Choose 'Ohm' to
enter datasheet
values directly.
Select physical
unit.
Enter resistance/
temperature pairs
from sensor data-
sheet here (the
3.01 kOhm pullup-
resistor is auto-
matically taken
into account)
6. Click ‘Next’ when done.
The third part of the “Characteristic Curve Wizard” opens.
Physical
limits of
channel
Enter physical limits
of the channel
Choose data type of
the measurement
variable
This sensor does not
need offset
calibration
Enter name to auto-
matically create a
new measurement
sheet
7. Click ‘Finish’ when done.
8. Enter channel name and description.
9. Click ‘OK’ when done.
The channel is inserted into the DDU 9 Project Tree.
Channel is linked
to ANA05
Input pin Pull-up
resistor is activated
Characteristic
curve for sensor
Adjustment
is disabled
Available measurements for channel:
