Bosch IMSA Prototype Classes Scrutineering System User Manual

Analog and Frequency Inputs | 12
Bosch Motorsport DDU 9 87/148
Drag + Drop

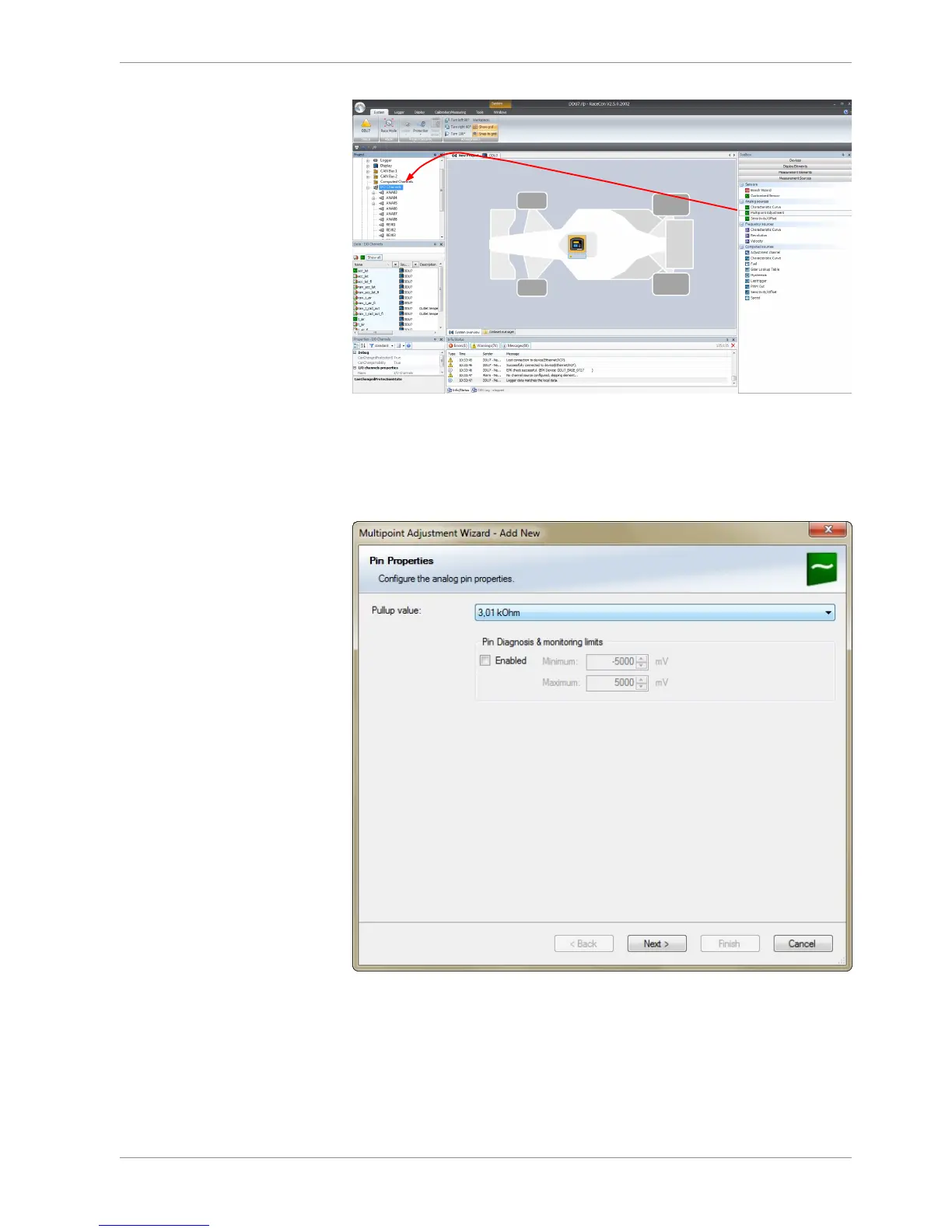

A ‘Multipoint Adjustment Wizard’ opens.
4. To activate the internal pullup-resistor, check the box. The internal pullup-resistor is
used to get a 5 V signal at the analog channel of the DDU 9. It allows you to use a
push-button. The fixed value of the internal pullup-resistor is 3.01 kOhm. If using an
additional external pullup-resistor, set up the overall resistance.
5. Click ‘Next’ when done.
The second part of the ‘Multipoint Adjustment Wizard’ opens.
