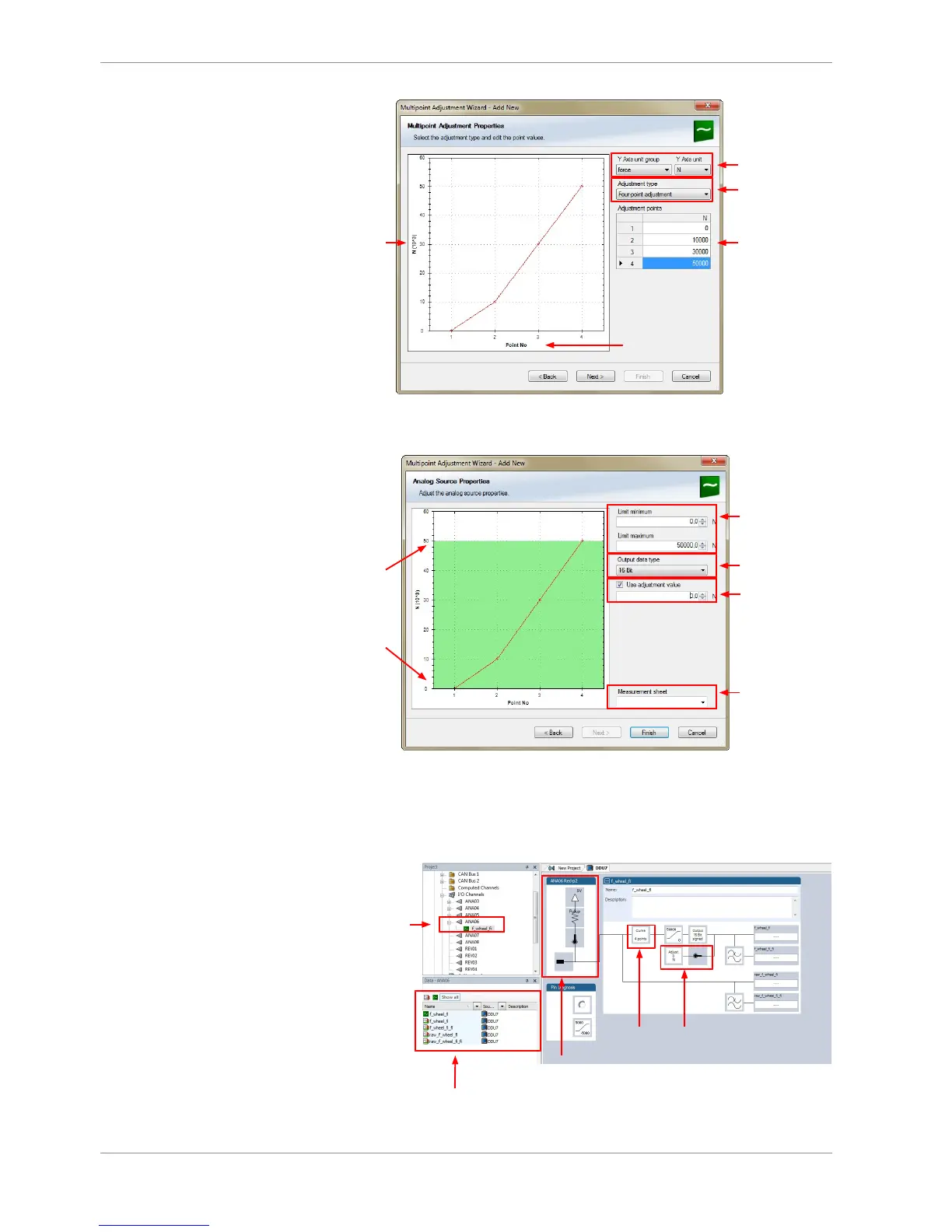

Choose unit group
and unit of physical
value
Select type of curve
Enter physical
adjustment values
her (can still be
edited later)
Electrical (pin) value
6. Click ‘Next’ when done.
The third part of the ‘Multipoint Adjustment Wizard’ opens.
Physical limits
of channel
Enter physical limits
of the sensor
Choose data type
of the measurement
variable
Enable additional
online calibration
Enter name to auto-
matically create a
new measurement
sheet
7. Click ‘Finish’ when done.
8. Enter channel name and description.
9. Click ‘OK’ when done.
The channel is inserted into the DDU 9 Project Tree.
Channel is linked
to ANA06
Input pull-up resistor
is deactivated
Characteristic
curve for sensor
Adjustment
is enabled
Available measurements for channel:
