5.1 Integrus Transmitters
The transmitter is suitable for either table-top or 19-inch rack-mounted use. Four feet (for
table top use) and two mounting brackets (for rack mounting) are supplied. The mounting
brackets can also be used to mount the transmitter to a flat surface.

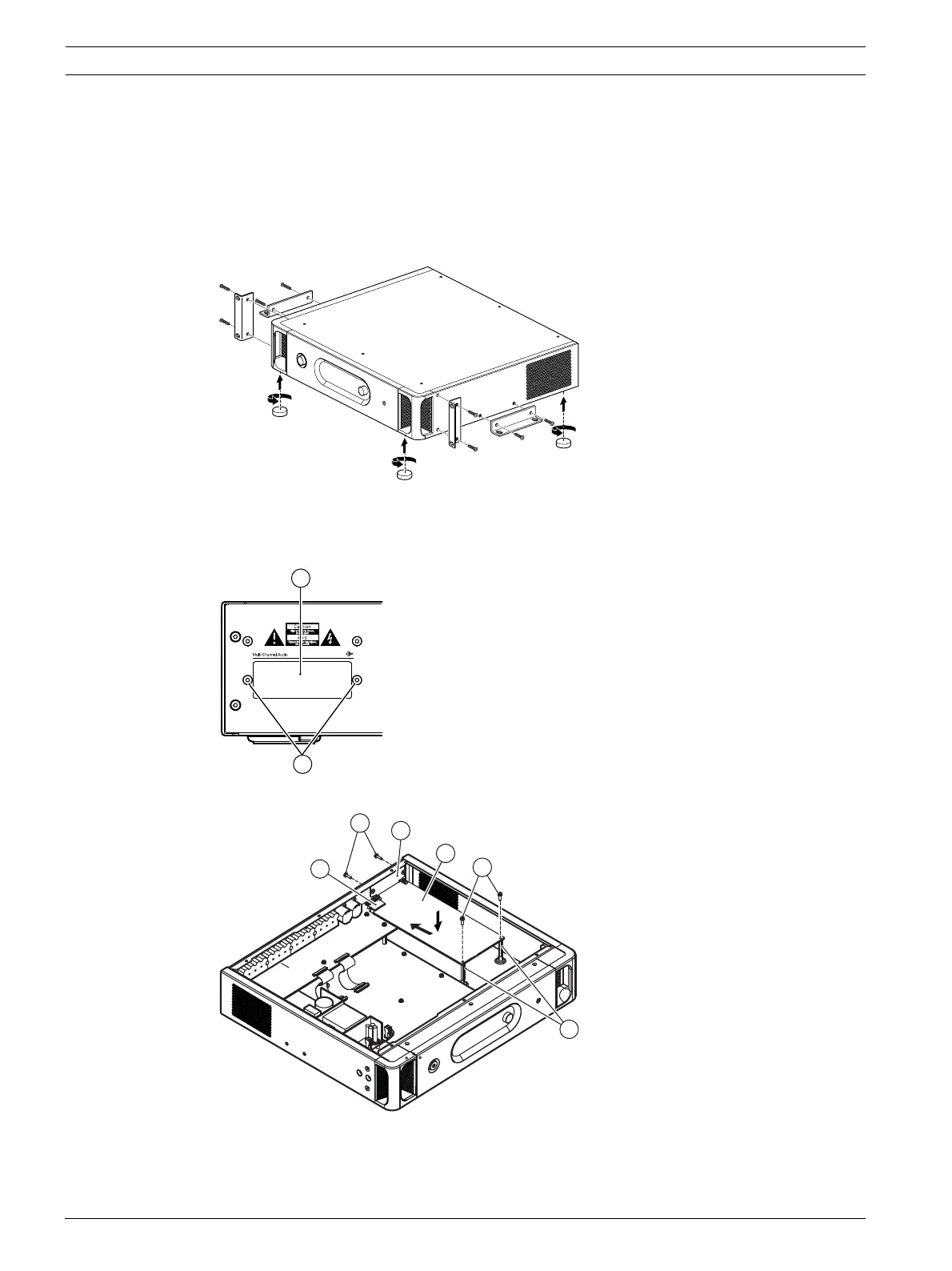

Figure 5.1 Transmitter with optional mounting brackets and table-top feet
5.2 Audio Interface modules
Figure 5.2 Interface module slot cover
Figure 5.3 Mounting an interface module in the transmitter housing
Follow the instructions below to mount an interface module in the transmitter housing. The
numbers refer to Figure 5.2 and Figure 5.3.
1
2
3
2
7
5
4
6
