R320103169/2020-08 | Linear modules MKK/MKR-xxx-NN-3 Bosch Rexroth AG 17/62
6.5.4 MKR-145-NN-3
Magnetic sensor with M8x1 plug
1. Insert the sensor mount (a) into the respective slot (S) in the frame, position it approximately and secure it
with two set screws (b).
2. Insert the sensor (8) into the sensor holder and secure it by turning the clamping screw (9).

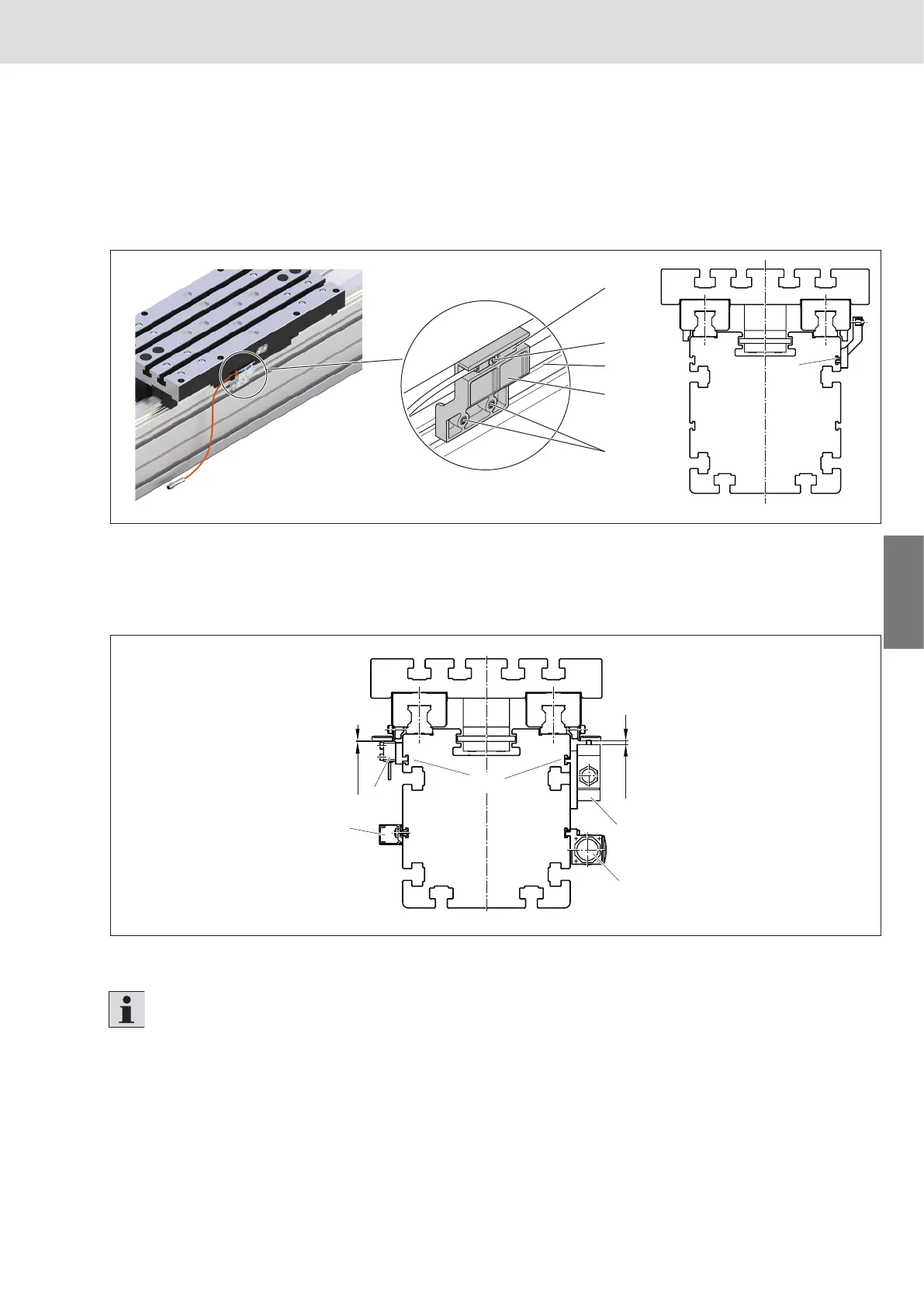

Fig�15: Magnetic sensor MKR-145-NN-3
Fig�16: Proximity sensors and mechanical switches MKR-145-NN-3
Proximity sensors and mechanical switches
X Assembly ! 6.5.10 / 6.5.11
S=Slot for sensor mount (a), proximity sensors, mechanical switches
0,4
+0,2
2,5
+0,2
S
2
1
3
5
0,4
+0,2
2,5
+0,2
S
8
9
a
S
b
