1
2a
2
6
5
4
3
7
2b
2b
8
4a
5a
5b
6a
6b
4b
54/62 Bosch Rexroth AG Linear modules MKK/MKR-xxx-NN-3 | R320103169/2020-08
Position Component
5 Fixed bearing
5a
Deep-groove ball bearing
5b
Fixed bearing end block
6 Floating bearing
6a Deep-groove ball bearing
6b Floating bearing end block
7 Frame with guide rail
8 Magnetic profile for steel cover strip

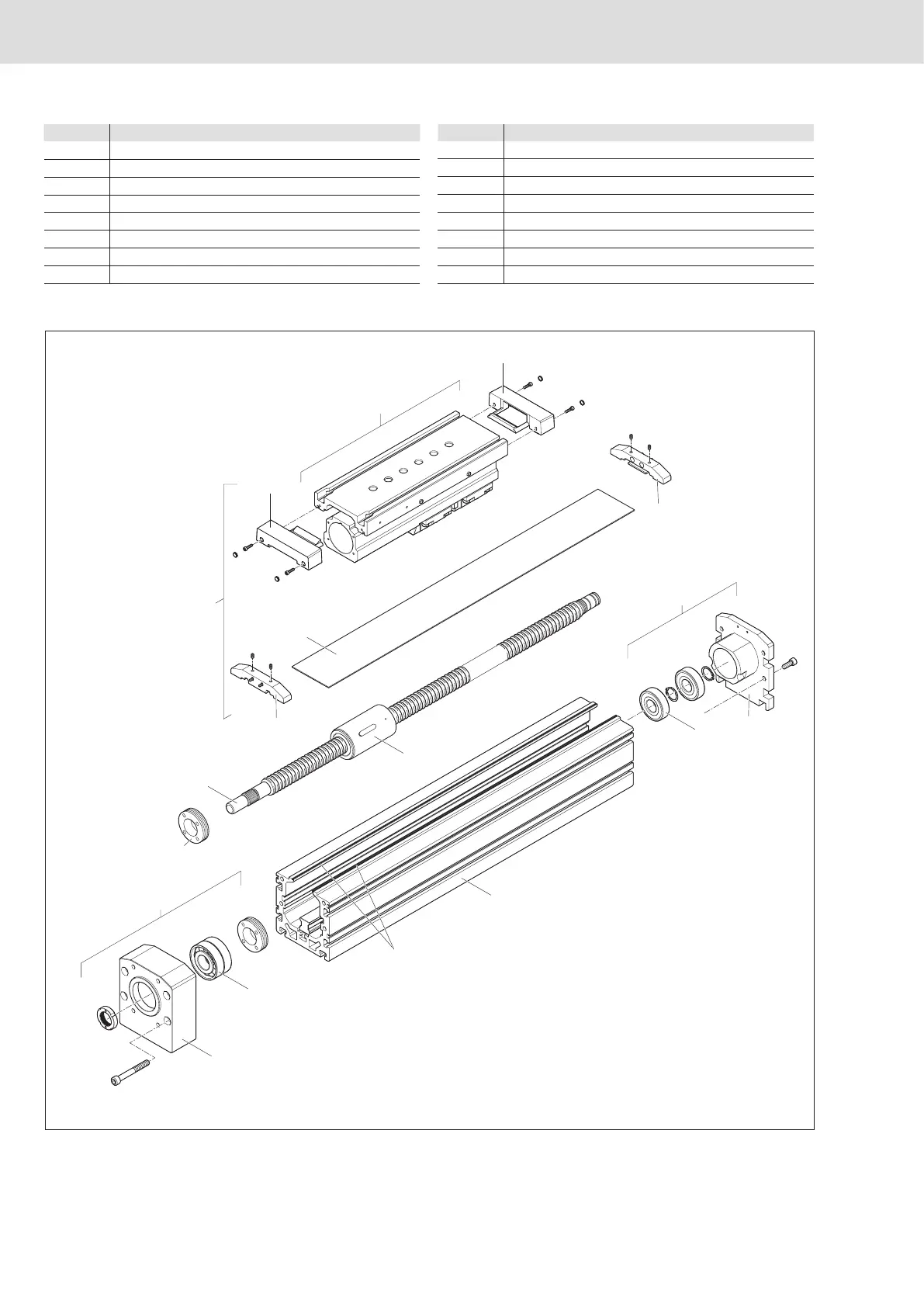

18.3 Overview of MKK-140-NN-3
Fig�50: Overview of MKK-140-NN-3
Position Component
1 Carriage with runner block
2 Return units
2a Return unit for cover strip
2b Belt clamp for cover strip
3 Cover strip (corrosion-resistant steel cover strip)
4 Ball screw assembly (BSA)
4a BASA nut
4b Threaded ring
