R320103169/2020-08 | Linear modules MKK/MKR-xxx-NN-3 Bosch Rexroth AG 55/62
18.4 Overview of MKK-165-NN-2

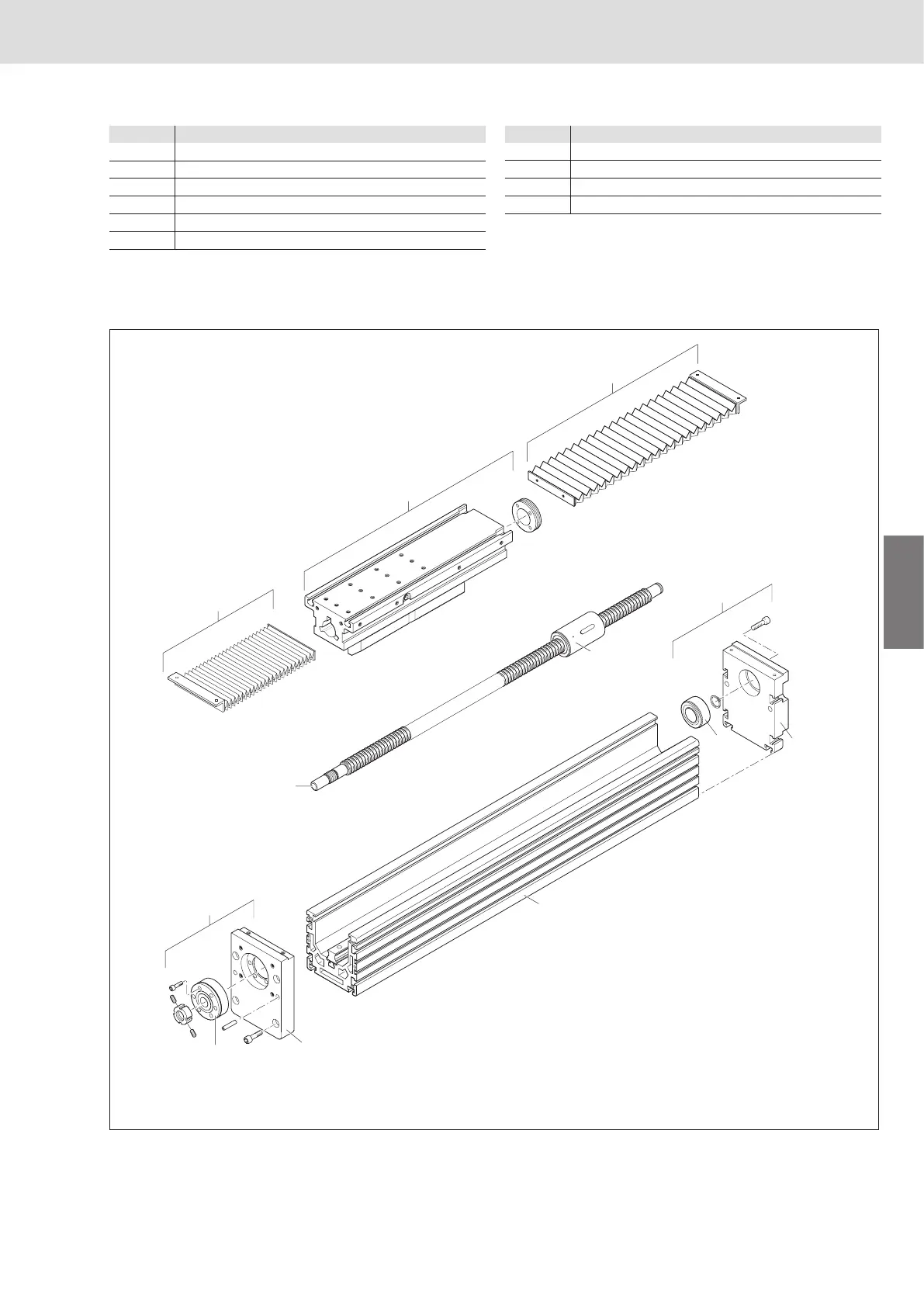

Fig�51: Overview of MKK-165-NN-2
Position Component
1 Carriage with runner block
2 Bellows
3 Ball screw assembly (BASA)
4 Fixed bearing
4a Deep-groove ball bearing
4b Fixed bearing end block
Position Component
5 Floating bearing
5a
Deep-groove ball bearing
5b
Floating bearing end block
6 Frame with guide rail
