2 | Technical Data
22/76 Engine_Control_Unit_MS_6.x_Manual Bosch Motorsport
Harness connectors
Bosch automotive connectors are not available as complete set of components, so Bosch
Motorsport itself offers such a package. For more technical details please check Bosch-
connector homepage, 196 pins
http://www.bosch-connectors.com/bogscoca/category/142
MS 6 harness connector type A (105 con-
tacts), coding variant 1
F 02U B00 712-01
MS 6 harness connector type K ( 91 con-
tacts), coding variant 1
F 02U B00 711-01
Protection Classification IP X6K, X8, X9K
Temperature range -40 to 120°C
Shakeproofed Max. 3.4 g
Wiring diameter 0.35 to 2.5 mm²
Pinsize 1.2 mm; 2.8 mm
Dummy Plug
Dummy plug 1 928 405 459 for unused con-
nections
Matrix 1.2 / CB / 0.75 to 1.0 mm²
Dummy plug 1 928 405 460 for unused con-
nections
Matrix 1.2 / CB / 1.0 - 1.5 mm²
Dummy plug 1 928 301 207 BTL 2.8

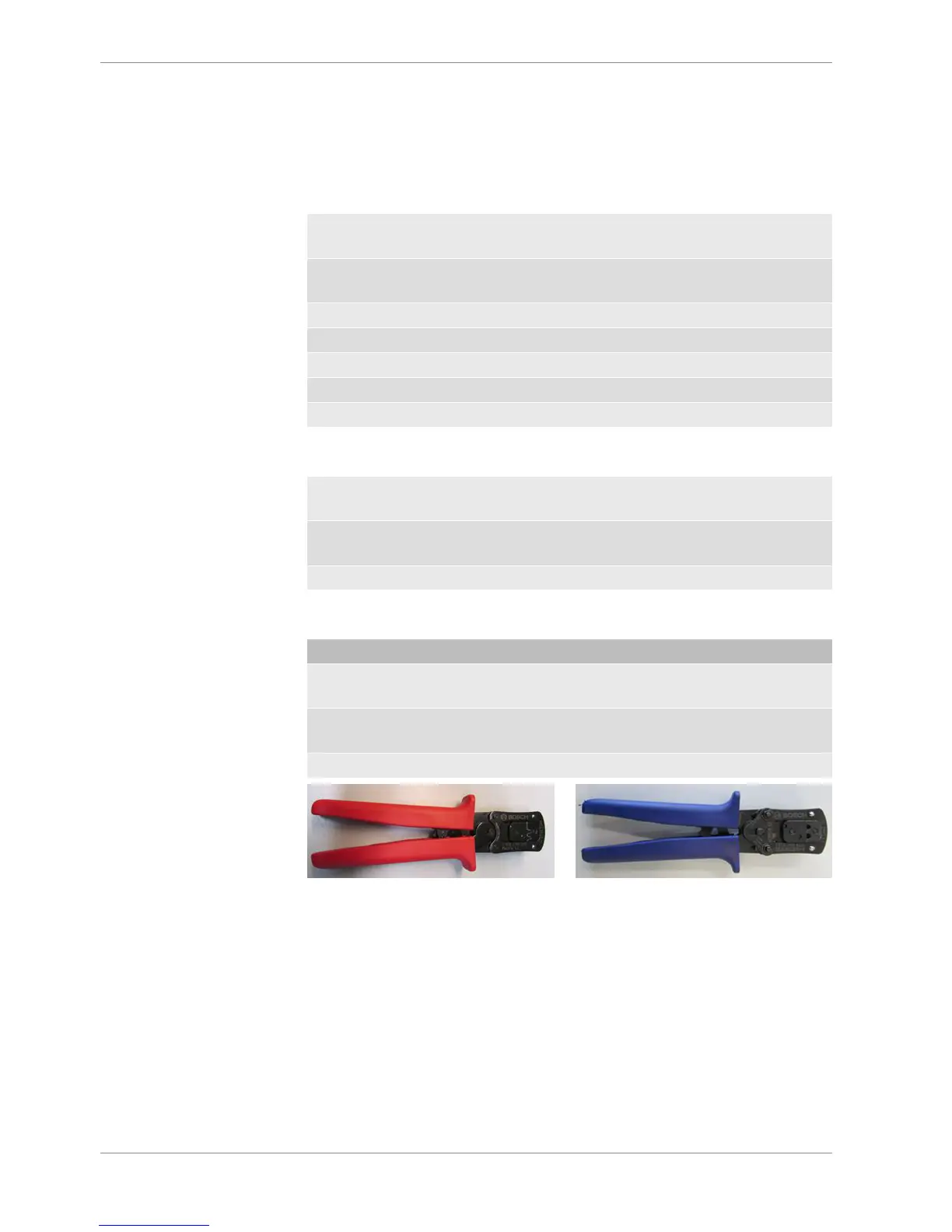

Tools and Contacts
Tool Matrix Contact Wire size
1928498212 Matrix 1.2 Clean Body
1928.498.991
0.35 to 0.5 mm²
1928498213 Matrix 1.2 Clean Body
1928.498.992
0.75 to 1.0 mm²
1928498837 1928498840 BTL 2.8 1928.498.651 1.5 to 2.5 mm²
Wiring
Bosch Motorsport recommends using the specified cable material and harness layout for
automotive connectors and wiring applications.
For Ethernet and USB connection CAT5 specified material is recommended and the pairs
and shield connections have to be strictly respected as shown in the wiring diagram.
For USB, the maximum wiring length is limited to 3 m and it is not allowed to be included
into a common harness and also there is no interruption allowed.
Due to installation condition, the length may have to be reduced.
Keep network wiring in distance to main sources of electrical noise like coils, coil- and HP-
injector wirings and also in distance to any telemetry transmitter.
