Bosch MS 6 - Firmware Update Process

3 | Starting up
30/76 Engine_Control_Unit_MS_6.x_Manual Bosch Motorsport

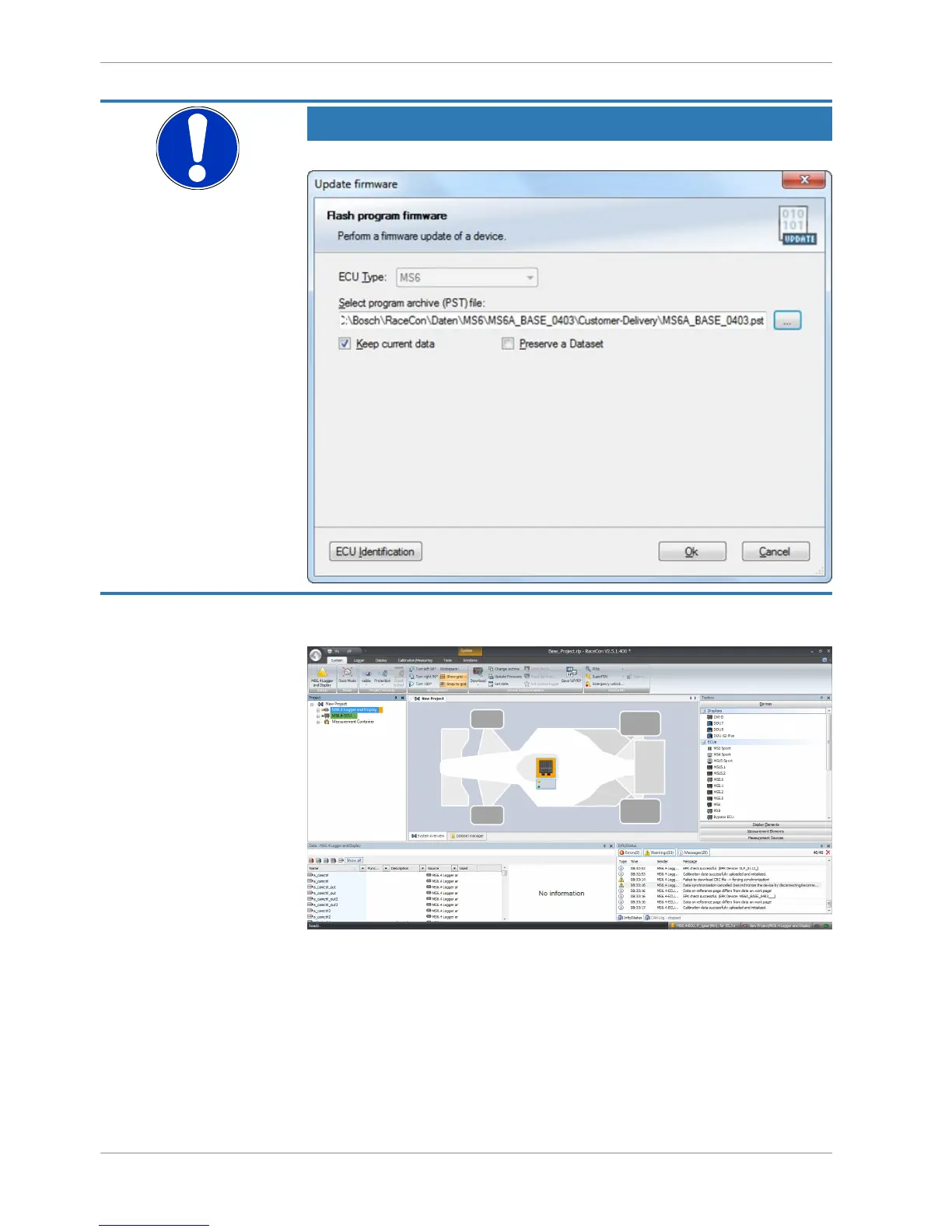

NOTICE
Do not interrupt flash process.
In the project tree, the MS 6 logger core is shown as >yellow<, means the firmware of MS
6 device and project are identical, but the data differs.
The offline preconfigured data have to be sent to the MS 6. Option one, select: Project
tree / right mouse button to the yellow MS 6 core / synchronize / or follow the RaceCon
menu:
