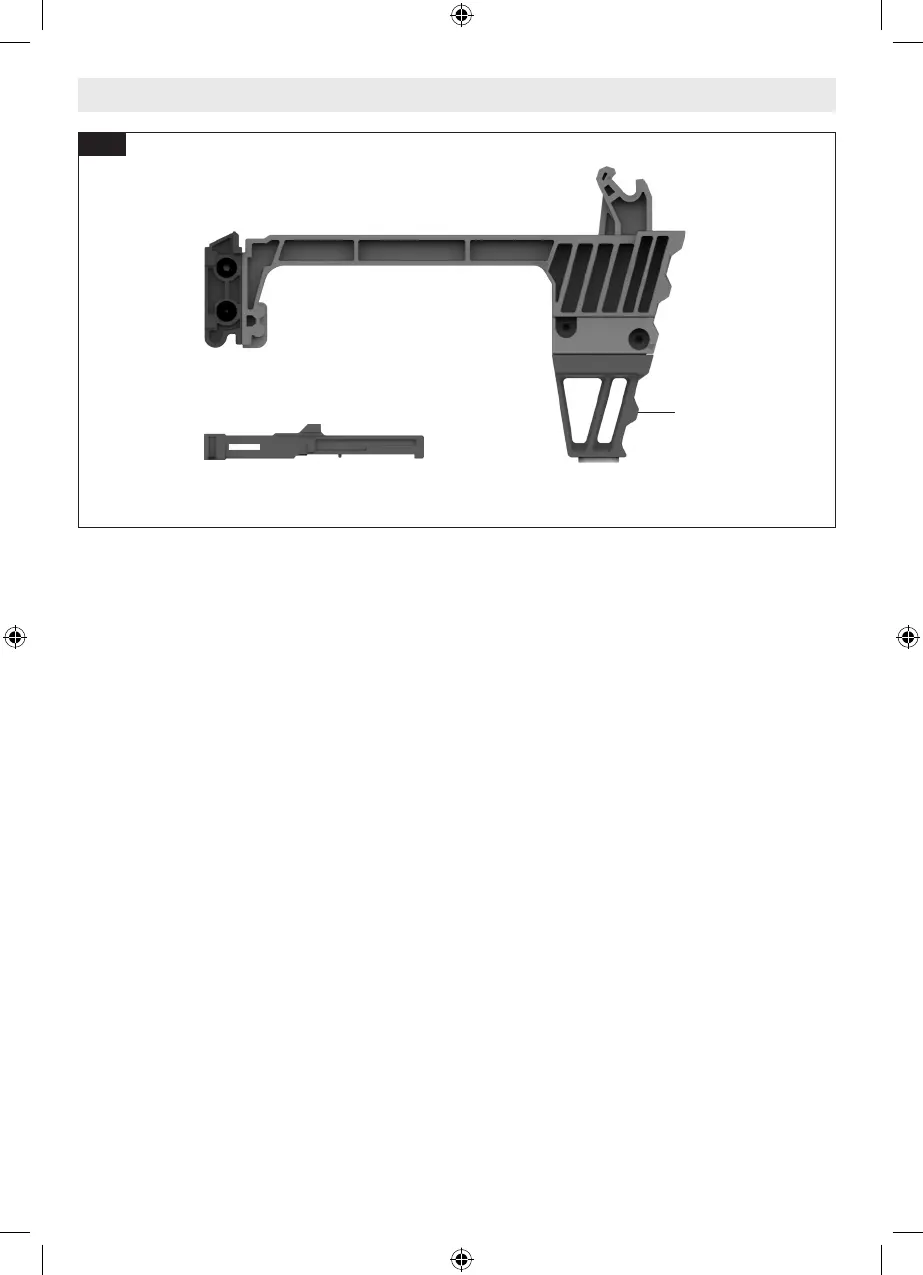

Getting to Know Your GNB18V-12 Concrete Nailer
Fig. 2
14
15
1 User Interface
a ON/OFF Button
b Status Indicator
c Battery Charge Indicator
d Reset Button
2 Trigger
3 Trigger Lock
4 Handle (Insulated Gripping Surface)
5 Collated Magazine
6 Magazine Slider
7 Magazine Slider Button
8 Collated Nosepiece
9 Nosepiece Release Button
10 Depth Setting Switch
11 Magazine Release Lever
12 Supporting Leg
13 Worklight
14 Single Shot Magazine
15 Single Shot Nosepiece
(marked with white stripe)
16 Utility Hook
17 Battery Pack
18 Battery Pack Release Button
19 Top Cap
