14
Assembly
Disconnect battery pack from tool before assembly, adjustments, trouble-
shooting or changing accessories. Such preventive safety measures reduce the
risk of starting the tool accidentally, which may result in personal injury.
11
5
Fig. 4

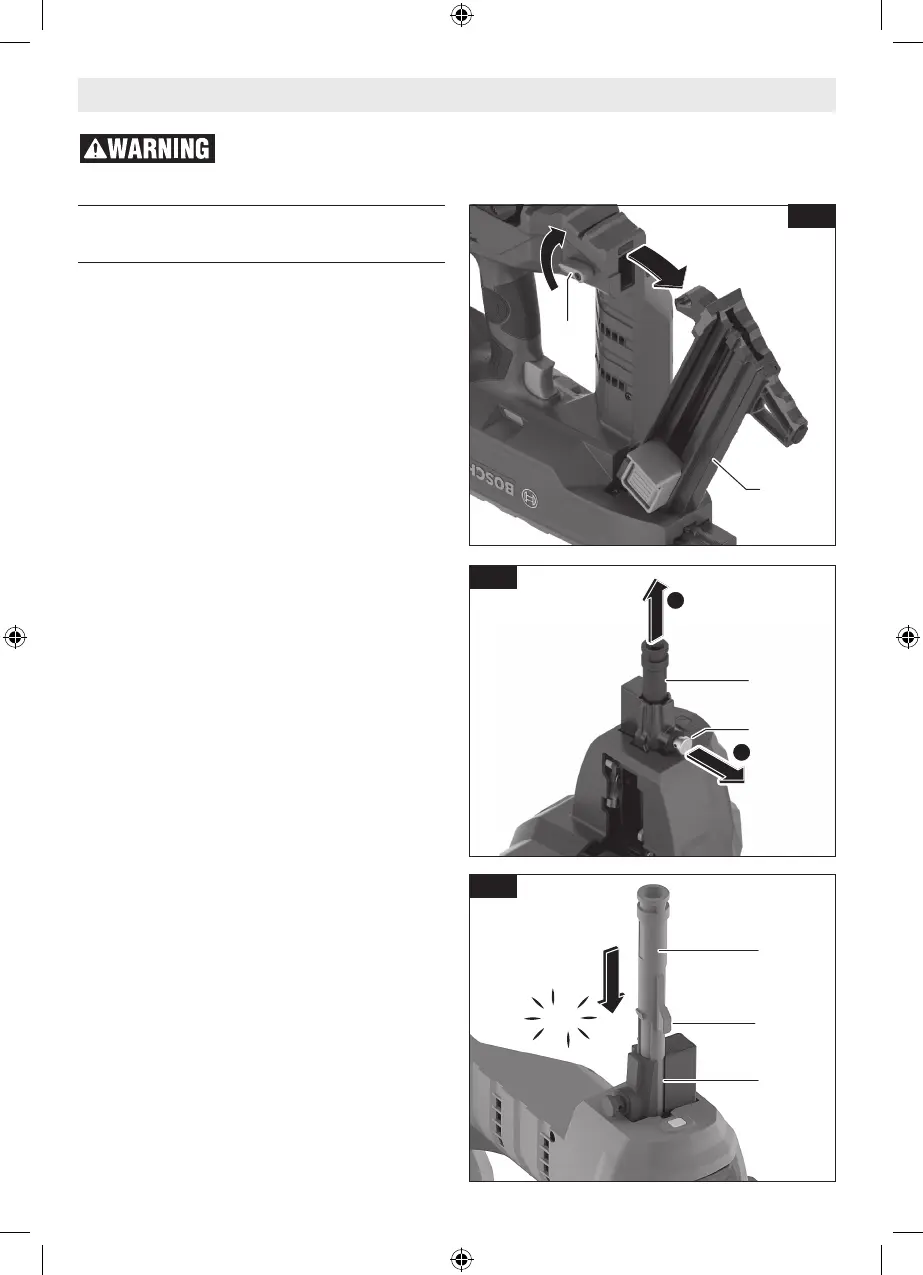

Removing and Installing the
Magazine and Nosepiece
(Fig. 1, 2, 4, 5, 6, 7, 8)
Install the Nosepiece first then assemble the
Collated or Single Shot Magazine. If the maga-
zine is assembled first, then it will not be pos-
sible to fully insert the Nosepiece.
When working with collated fasteners, install
the Collated Nosepiece 8 and the Collated Mag-
azine 5.
When working with single shot fasteners, install
the the Single Shot Nosepiece 15 and the Single
Shot Magazine 14.
1. Remove the battery pack.
2. Position nailer onto a flat stable surface.
3. Remove the Magazine:
a. Rotate the Magazine Release Lever 11
clockwise and pull out the end of the
Magazine 5, 14 to remove from the nailer
(Fig. 4).
4. Remove the Nosepiece:
a. Pull the Nosepiece Release Button 9 and
remove the Nosepiece 8, 15 from the
nailer (Fig. 5).
5. Insert the Nosepiece:
a. Align the tab of the Nosepiece 8, 15 to
the slot in the housing and push the
Nosepiece into the nailer until the Nose-
piece Release Button locks it in place.
The Nosepiece is properly installed when
you hear a “click” (Fig. 6).
B
A
8
9
Fig. 5
Tab
8
Slot
Click
Fig. 6
1605A001CD GNB18V-12 202301.indd 14 1/9/23 2:07 PM
