22
Operation
Nailer Actuation
Nosepiece must be in full
contact with the work sur-
face. Gap between the nosepiece and the work
surface may result in deflection of the fastener
and property damage or personal injury.
Never wedge the nosepiece
between two or more sur-
faces. Gap between the nosepiece and multiple
work surfaces may allow deflection of the fas-
tener and property damage or personal injury.
Never hold back the nose-
piece during operation.
Holding the nosepiece back can result in unex-
pected actuation and may cause property dam-
age or serious injury.
Never position your face or
body over the nailer top cap
during operation. Sudden recoil can result in
impact to the body and injury.
This nailer operates only in a fully sequential
mode, steps 5–7 must be repeated sequentially
for intended operation of the nailer.

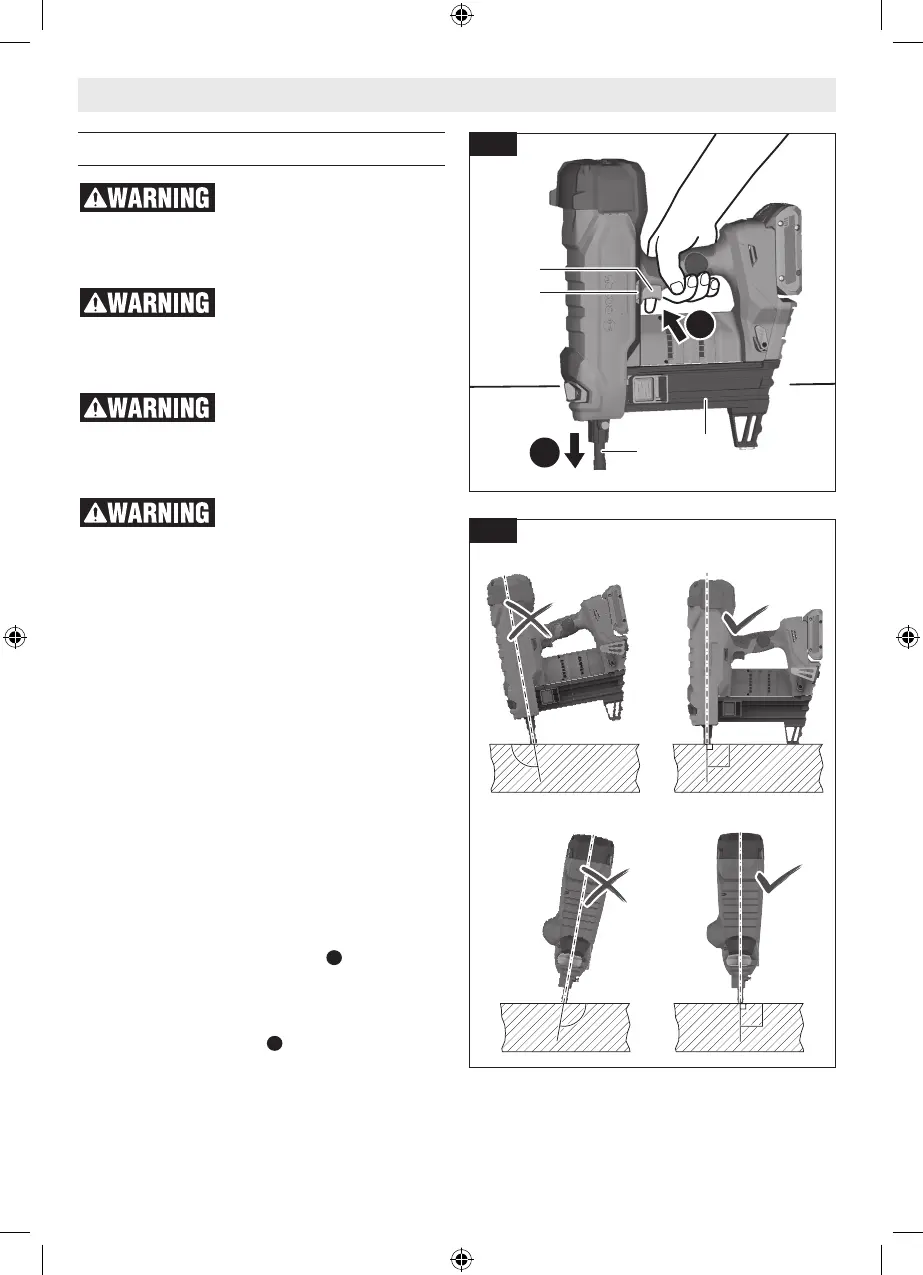

(Fig. 19, 20)
Assemble the needed Nosepiece and Magazine
as described in the “Removing and Installing the
Magazine and Nosepiece” section.
1. Insert the Battery Pack.
2. Press and hold the ON/OFF Button to acti-
vate the nailer.
3. Press the Trigger Lock 3 to unlock the Trigger
2 (Fig. 19).
4. Firmly grip of the nailer’s handle and hold
the nailer perpendicular (90º angle) to the
work surface (Fig. 20), and use your free
hand to hold the top cap for added stability.
5. Press the Nosepiece 8, 15
fully against
the work surface. If the Nosepiece is not
fully pressed into the nailer, the nailer will
not fire.
6. Press the Trigger 2
to drive the fasten-
er into the worksurface. The trigger has
to be pressed within 2 seconds after the
Nosepiece is fully pressed. If the trigger is
pressed later, the nailer will revert to a SAFE
mode and the actuation sequence will have
to be repeated.
Fig. 20
8
3
2
5
A
B
Fig. 19
