Operation
Loading Single Shot Fasteners
(Fig. 2, 14)
Loading Instruction
Do not pull the trigger or de-
press the nosepiece when
loading the nailer. Pulling the trigger or de-
pressing the nosepiece may cause misfiring of
the tool resulting in personal injury and property
damage.
Load only one single shot
fastener at a time. Loading
multiple fasteners can cause misfiring and dam-
age the nailer.
1. Remove the Battery Pack.
2. Ensure that the Single Shot Magazine 14 is
free of debris, such as a build-up of concrete
dust.
3. Install the Single Shot Nosepiece 15 and
the Single Shot Magazine 14 according to
instructions in the section “Removing and
Installing the Magazine and Nosepiece”.
4. Position nailer onto a flat stable surface and
point the Nosepiece 15 away form yourself
and bystanders.
5. Select and push a single shot fastener into
the Single Shot Nosepiece 15 as shown in
Fig 14.
Note: Compatible single shot fasteners are
0.300” (8mm) nominal diameter, as shown
in the “Specifications” table. The fastener
should slide easily into the Single Shot Nose-
piece 15 and not fall out.
15

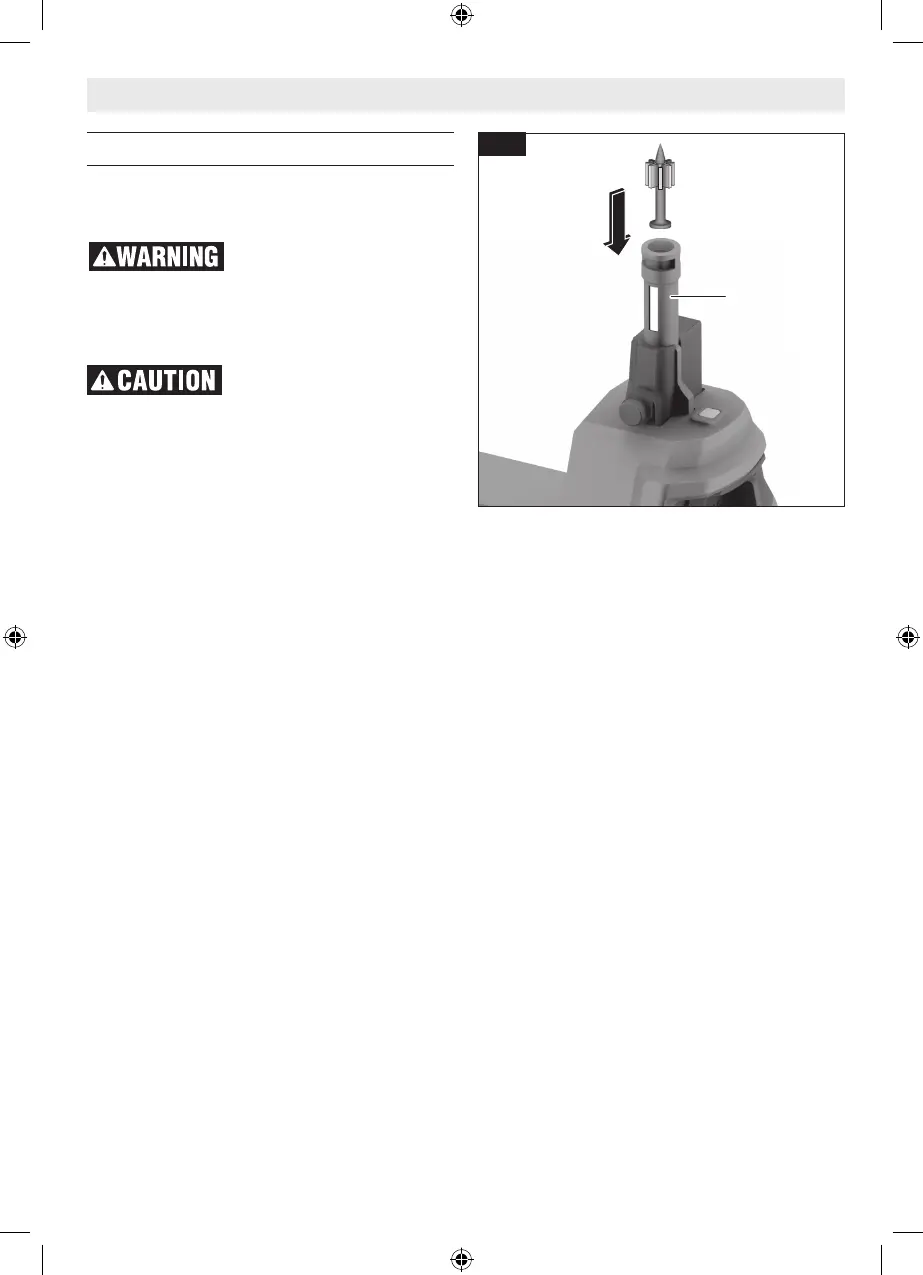

Fig. 14
