15

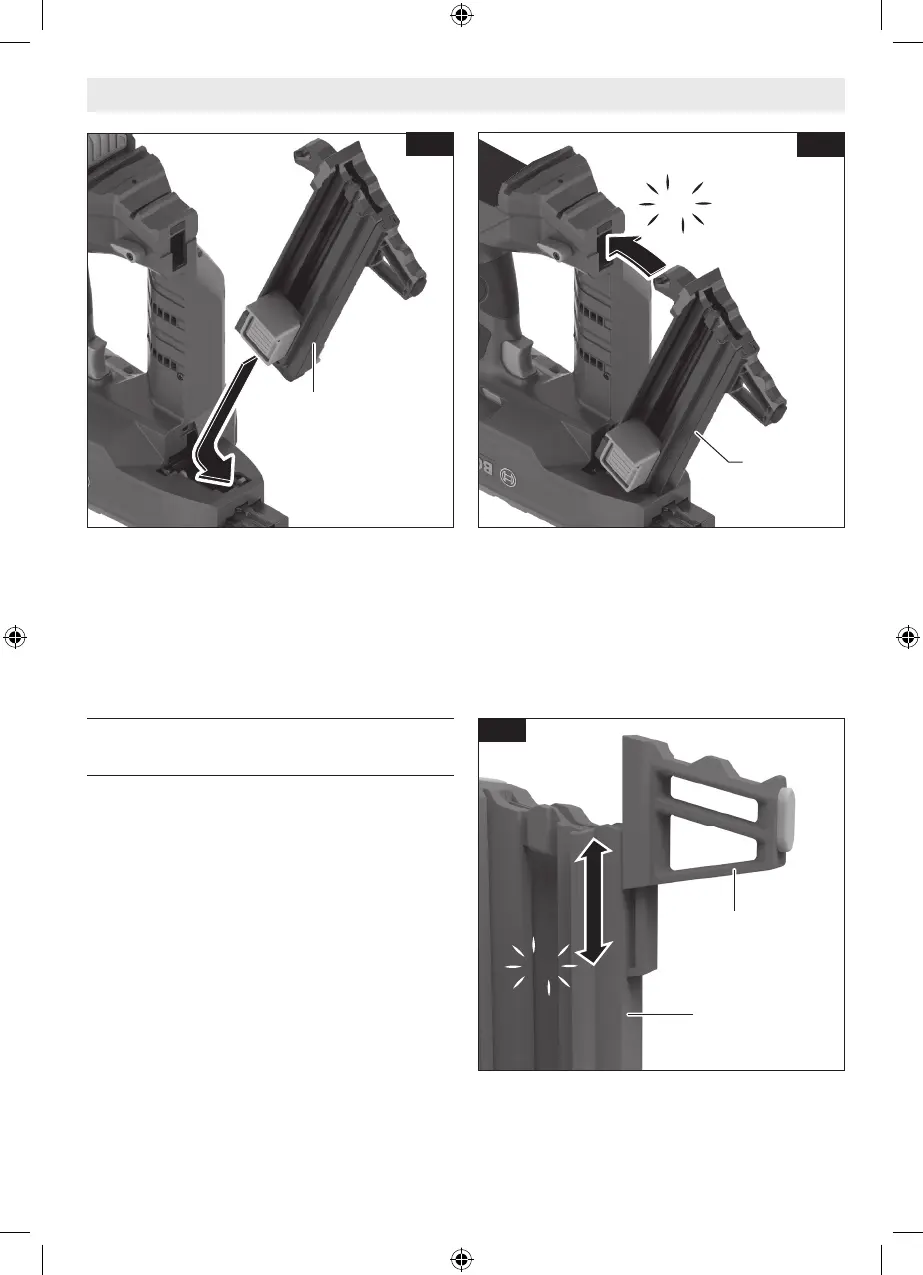

6. Install the Magazine:
a. Insert the Magazine 5, 14, as seen in (Fig 7).
b. Lock the Magazine 5, 14 by pushing the
magazine flush against the nailer (Fig 8).
The Magazine is properly installed when
you hear a “click”.
Removing and Attaching the
Supporting Leg
(Fig. 2, 9)
The Supporting Leg helps the Nosepiece to be
perpendicular to a flat surface.
The Supporting Leg can be removed for work on
an uneven surface.
To remove, slide the Supporting Leg 12 off the
end of the Magazine 5, 14. To reattach, slide the
Supporting Leg 12 back on the end of Magazine
until it clicks in place (Fig. 9).
5
Click
Fig. 8
5
Fig. 7
Assembly
12
5
Click
Fig. 9
