Transport and storage 23/60
RE 92801-01-B/11.2018, A15VSO/A15VLO Series 11, BoschRexrothAG
WARNING! Danger due tosuspended loads!
During transport with alifting device, the axial piston unit can topple out
ofthelifting strap and cause injury.
▶ Use the widest possible lifting strap.
▶ Make sure that the axial piston unit issecurely fixed with the lifting strap.
▶ Only guide the axial piston unit byhand for fine positioning and toavoid swinging.
▶ Never step orgrip under suspended loads.
▶ Place the lifting strap around the axial piston unit insuch away that itdoes not
pass over assembled parts (e.g.valves, piping) and that the axial piston unit
isnot suspended from assembled parts (see Fig. 7).

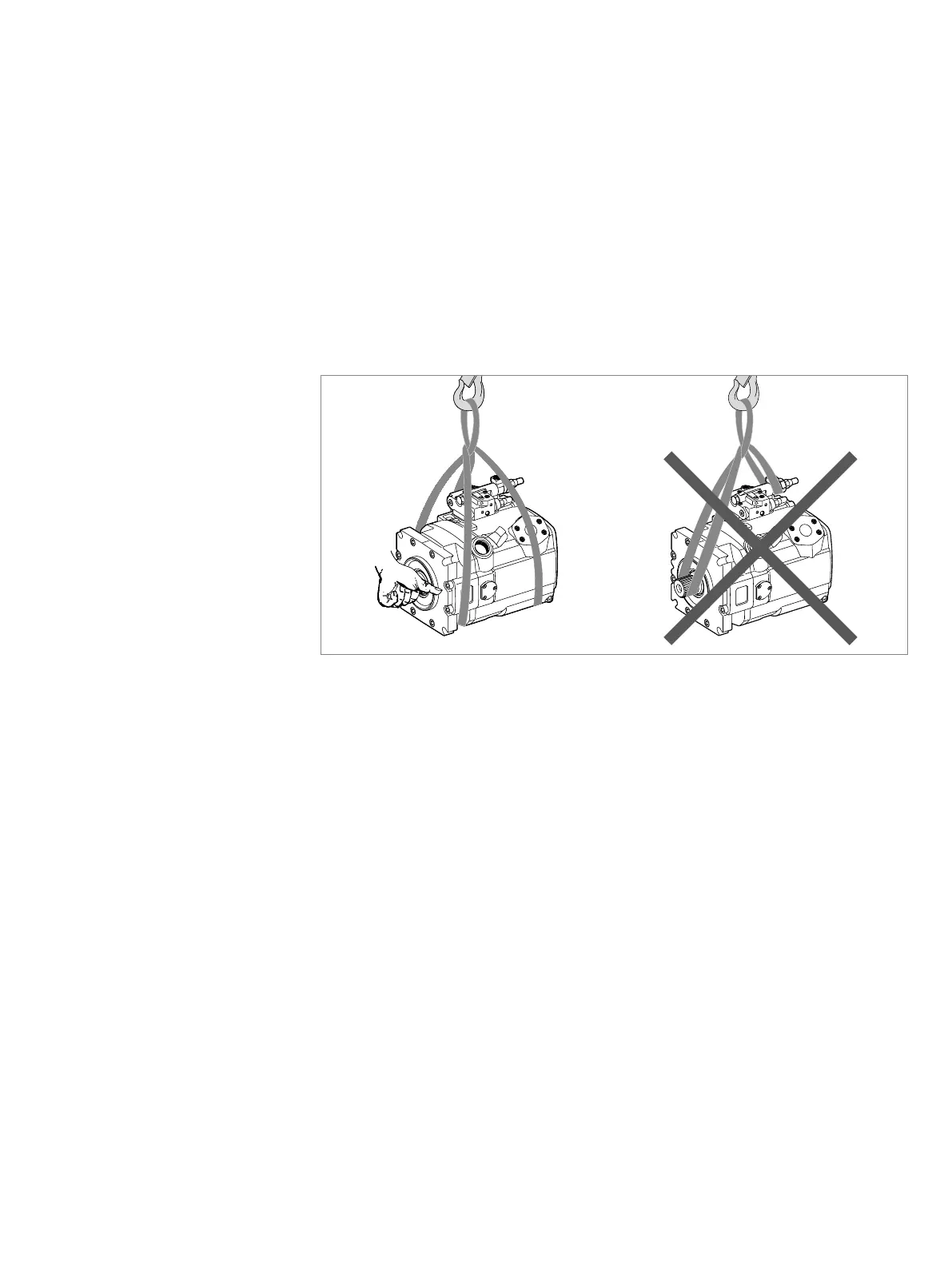

Fig. 7: Transport with lifting strap
Transport with lifting strap
