▶ When designing the reservoir, ensure that there isanadequate distance between
the suction line and the drain line. This prevents the heated return flow from
being drawn directly back into the suction line.
▶ Make sure that aminimum suction pressure of0.8bar abs. (without charge
pump) or0.7bar abs. (with charge pump) ispresent atport "S" during operation
and atcold start, inall installation positions and installation locations for the
axial piston pump, see Fig. 8. See data sheet for other pressure values.
-0.2
0.8 abs.
1
2
3
0
0
1
2
-1
21
S

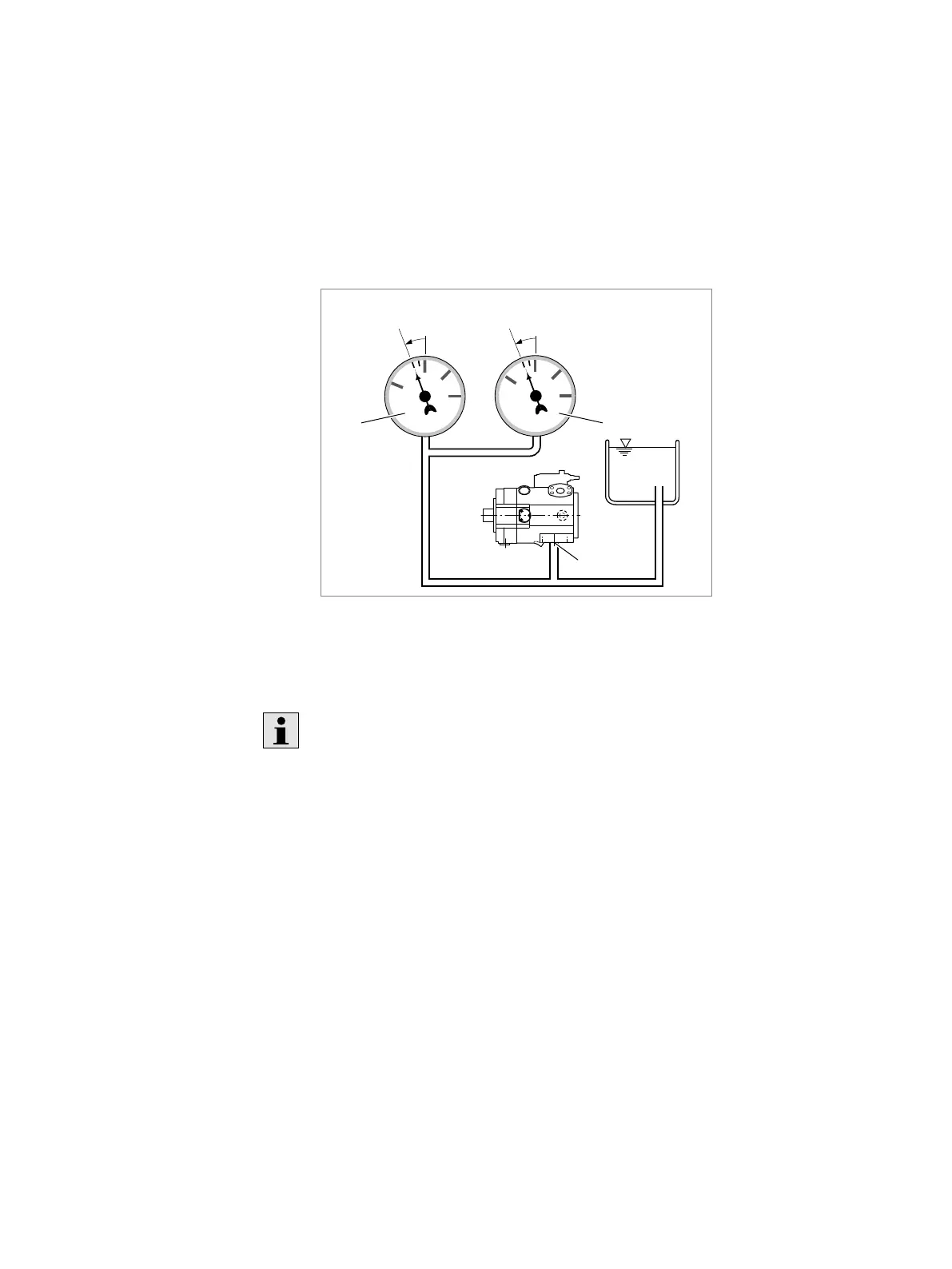

Fig. 8: Suction pressure
1 Absolute pressure gage
2 Standard pressure gage (relative)
The suction conditions improve with installation below and inside the reservoir.
▶ Make sure that the working environment attheinstallation site iscompletely
free ofdust and foreign substances. The axial piston unit should beclean when
installed. Contamination ofthehydraulic fluid can considerably affect the
function and service life oftheaxial piston unit.
▶ Use fiber-free cleaning cloths for cleaning.
▶ Use suitable, mild cleaning agents toremove lubricants and other heavy
contamination. Do not allow cleaning agents toenter into the hydraulic system.
