RE91405-01-B/2021-05-21, BoschRexrothAG
Transport and storage | A2FO series 70 21/52
6�1�2 Transport with lifting devices
For transporting, the axial piston unit can be connected to a lifting device via an eye
bolt or a lifting strap.
The axial piston unit can be transported suspended from an eye bolt screwed into
the drive shaft as long as only outward (pulling) axial forces are applied.
▶ For all female threads, use astud end from the same system of units and of the
correct size.
▶ To do this, screw an eye bolt completely into the female thread on the drive shaft.
The thread size is indicated in the installation drawing.
▶ Make sure that the eye bolt can bear the total weight of the axial piston unit
plus 20%.

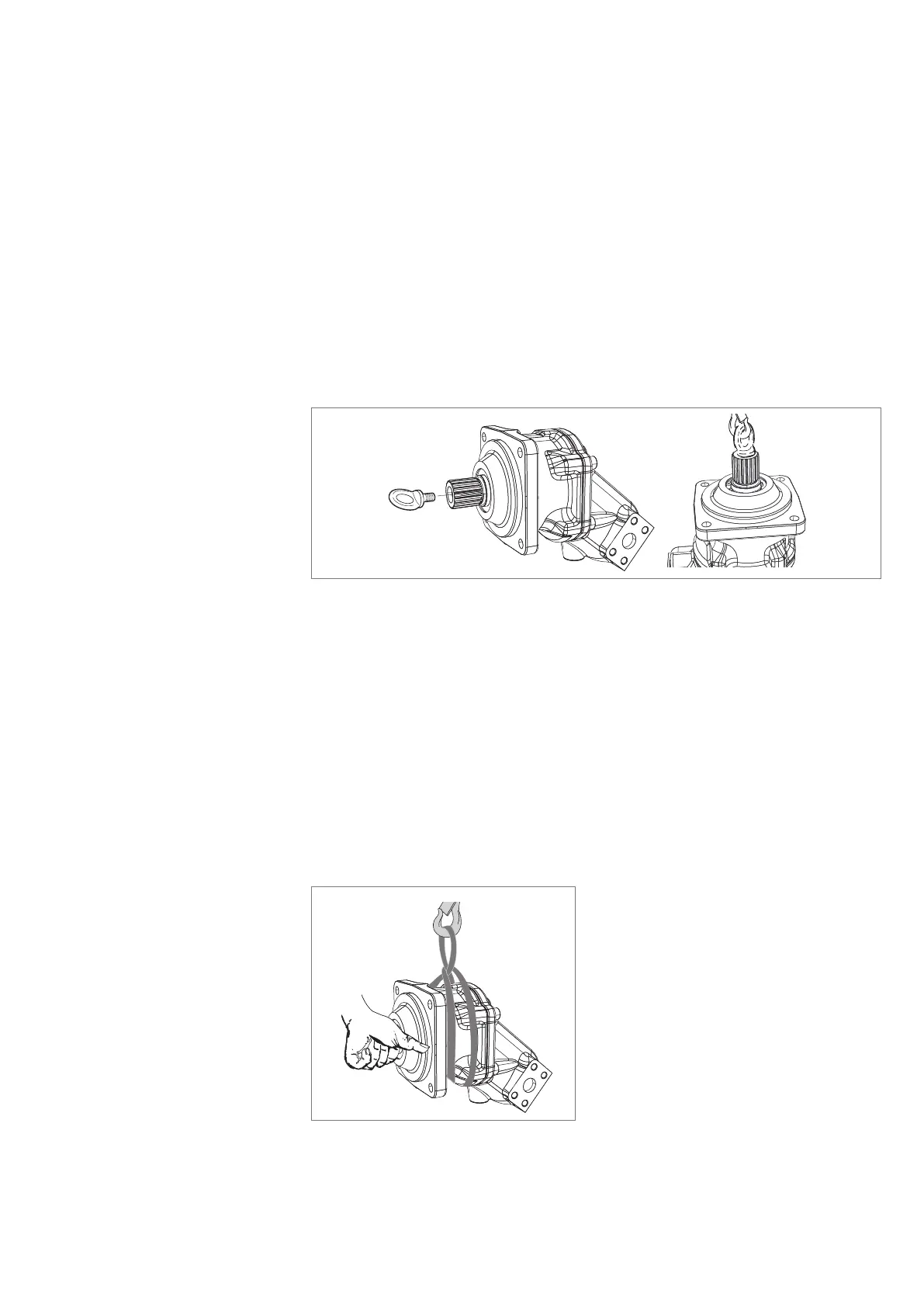

You can lift the axial piston unit as shown in Fig. 4 with the eye bolt screwed into the
drive shaft.
Fig� 4: Mounting the eye bolt
WARNING! Danger due to suspended loads!
During transport with lifting strap, the axial piston unit can topple out of the lifting
strap and cause injury.
▶ Use the widest possible lifting strap.
▶ Make sure that the axial piston unit is securely fixed with the lifting strap.
▶ Only guide the axial piston unit by hand for fine positioning and to avoid swinging.
▶ Never step or grip under suspended loads.
▶ Place the lifting strap around the axial piston unit in such away that it does not
pass over assembled parts (e.g.valves, piping) and that the axial piston unit is
not suspended from assembled parts (see Fig. 5).
Fig� 5: Transport with lifting strap
Transporting with
eye bolt
Transport with lifting strap
