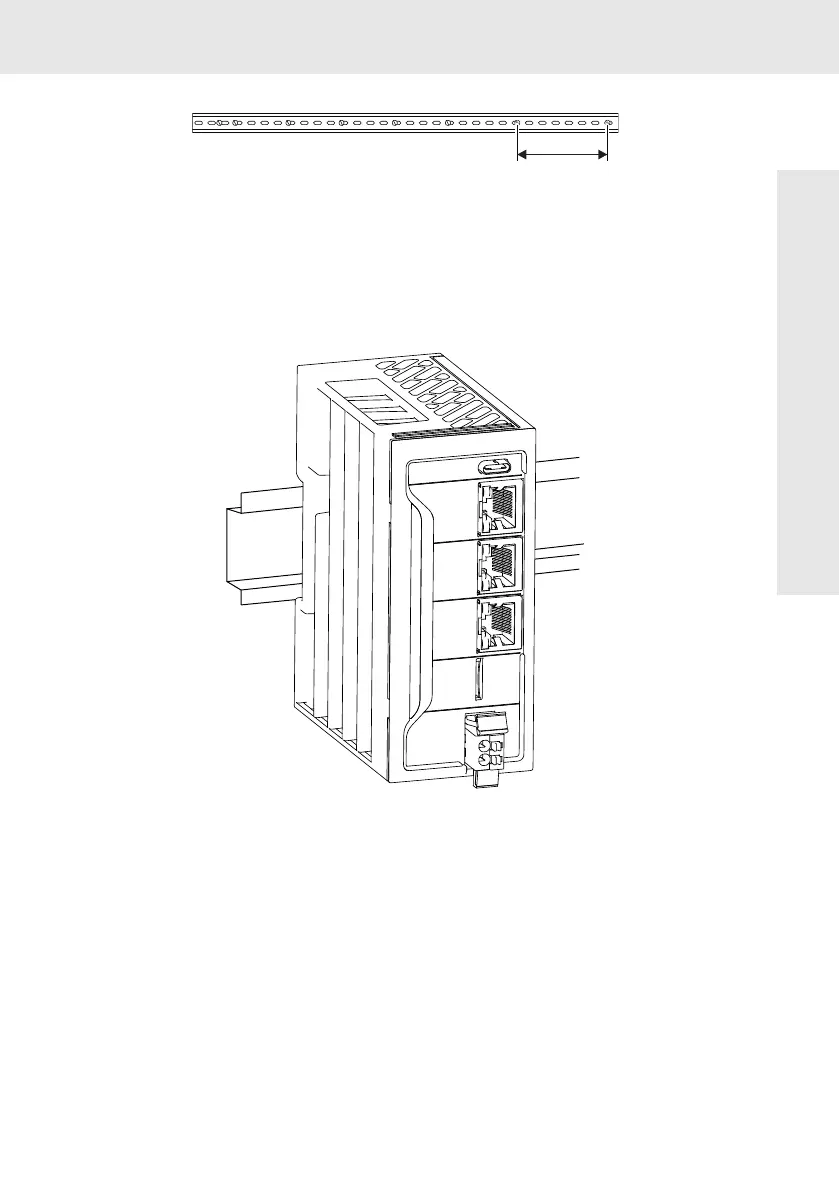

Fig. 7: Support rail fastening (in mm)
• Mounting position
To ensure air cooling in the device by convection, mount the control only vertically on a horizontal
support rail as shown in the following figure.
In the shown mounting position, the natural convection supports the forced cooling air flow. Heat
pockets can thus not be caused in the device.
Fig. 8: Permitted mounting position for all ctrlX CORE controls
• End clamps
Fasten end clamps of the type SUP-M01-ENDHALTER on both sides of the control.
End clamps ensure the correct fastening of the control connected to them on the support rail and
they are used as lateral end elements.
Always fasten one end clamp of the station before mounting the control. This ensures the following:
–
It impedes the shifting of the control.
– The installation place for the end clamps is secured.
•
Do not route cables parallel to motor cables or other strong interference sources to avoid the
coupling of interferences.
• Observe the bending radii of the cables when routing.
Mounting, dismounting and electric installation
