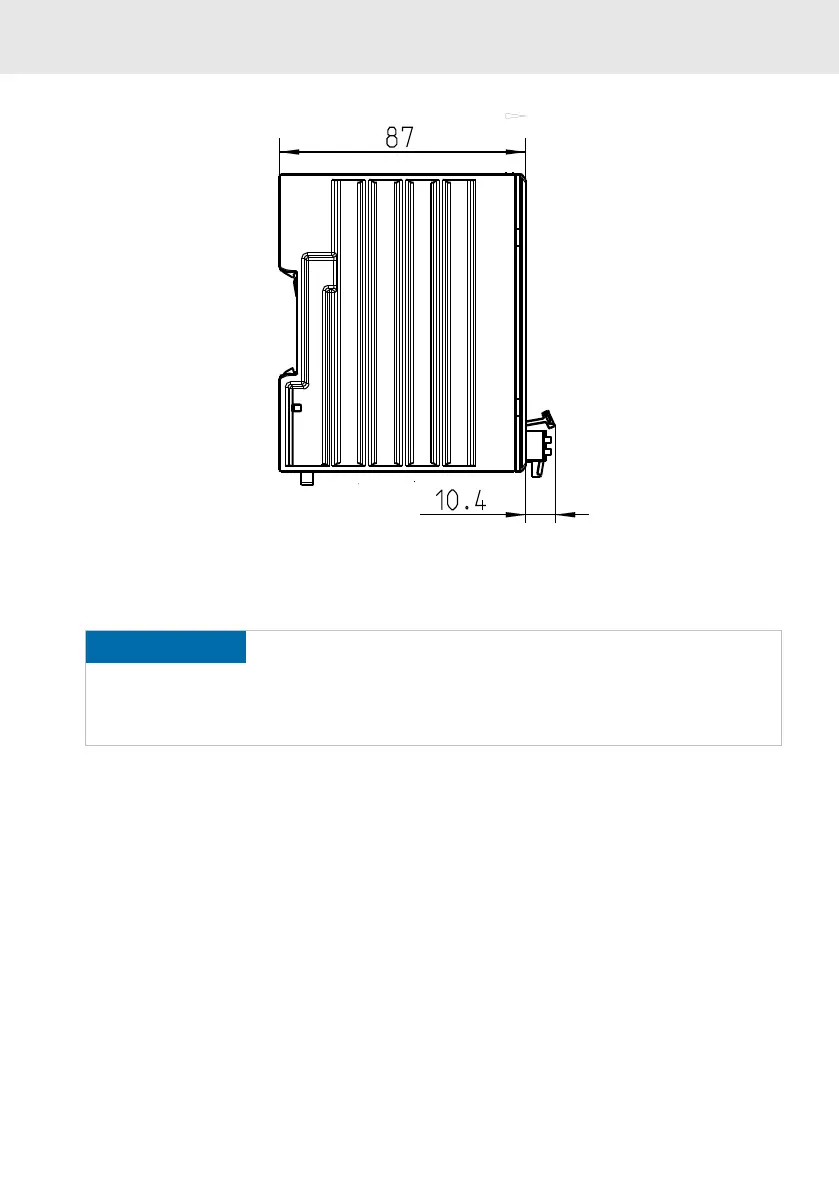

Fig. 6: Side view
10.2 Installation notes
NOTICE
Destruction of the device due to electrostatic discharge
The device contains components that can be damaged or destroyed by
electrostatic discharge. Comply with the required safety measures against
electrostatic discharge (ESD) acc. to EN 61340-5-1 when operating the
control.
•
Mounting location
The control has the degree of protection IP 20 and is thus intended for use in a closed control cab-
inet or control box (terminal box) of the degree of protection IP 54 or higher. The control cabinet
has to be provided with sufficient stability and rigidity (acc. to UL 61010-1, 61010-2-201) and
has to comply with the requirement to impede fire spreading (acc. to UL 61010-1, 61010-2-201).
•
Support rail
Mount the control on an electrically conductive 35 mm standard support rail. Its connection to the
functional earth is sufficient. Only use a support rail with an design height of 7.5 mm (corresponds
to TH 35-7.5 acc. to EN 60715).
The fastening distance of the support rails may not exceed 200 mm. This distance is required to
ensure stability while mounting and dismounting the control.
